Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System (25' Cord) w/ Interchangeable Breakers

Model:

EGD-A510CKIT

Write A Review
$895.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Mar 19th
Shipping to60601

Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System (25' Cord) w/ Interchangeable Breakers
Reliance Controls 50-Amp (120/240V 10-Circuit) Power Transfer System (25' Cord) w/ Interchangeable Breakers
Model: EGD-A510CKIT
$895.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • 50-Amp (120/240V 10-Circuit) Power Transfer System
  • Everything but the electrician and generator
  • Safest Way to Distribute Power
  • Eliminates dangerous back-feeds and electrical overloads
  • Standard Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Versatile Design w/ Interchangeable Breakers
  • You determine the right combination for your application
  • Built-In Wattage Meter
  • Track power input to ensure proper load balancing
  • 25-Foot 50-Amp Straight Blade Power Cord
  • Flexible design male (14-50) & female (CS6364/5) ends
  • 50-Amp Twistlock Power Inlet Box
  • Rain-tight design w/ flip-lid keeps dirt and debris out
  • Generous wiring space that facilitates rough-in

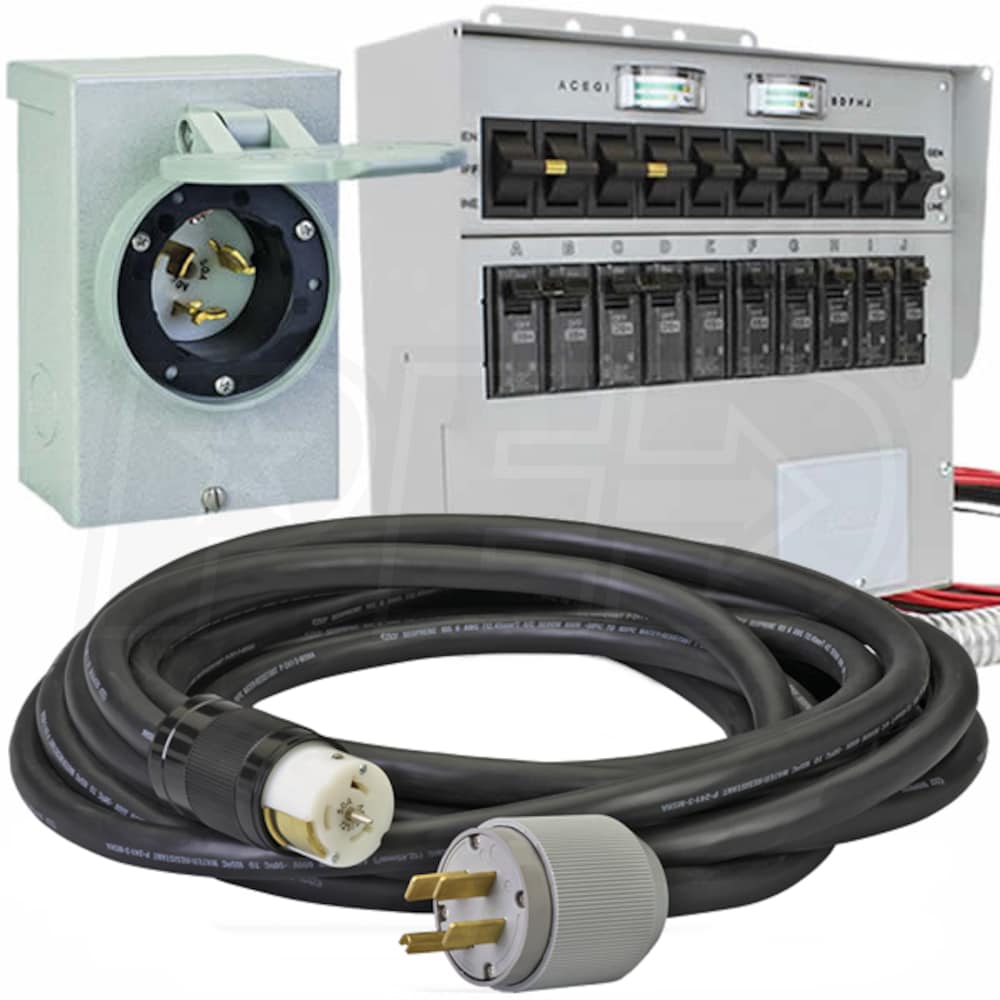

  • Kit Includes:
  • 50-Amp (120/240V 10-Circuit) Manual Transfer Switch
  • 50-Amp (25-Foot) Generator Power Cord
  • 50-Amp (Twistlock) Power Inlet Box
  • UL Listed & Certified for use by Underwriter Laboratories
  • Product Includes
    • (1) Reliance Controls 50-Amp (Straight Blade / Twistlock 120/240V) Generator Power Cord (25-Foot) (PC5025-14)
    • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
    • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm, and Wood dust which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Plug Types
NEMA 14-50R
Product Includes
  • (1) Reliance Controls 50-Amp (Straight Blade / Twistlock 120/240V) Generator Power Cord (25-Foot) (PC5025-14)
  • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
  • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)
EGD-A510CKIT
specs product image PID-79502
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
PC5025-14
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Maximum Wattage
12500 Watts
Plugs
NEMA 14-50R
1
CS6364/5 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Prongs
Straight-Blade
Wire Gauge
6 Gauge
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
2.5 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
6 Inches
Product Width
4 Inches
Product Height
3 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 3R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Plugs
CS6364/5 - 50-Amp Twistlock
1
