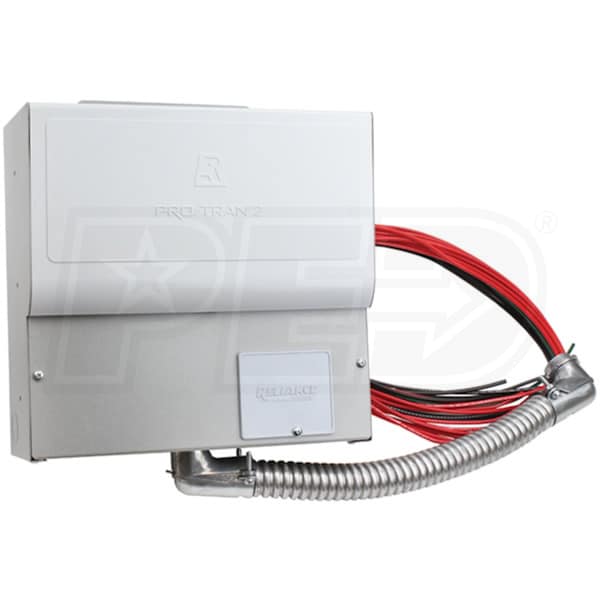

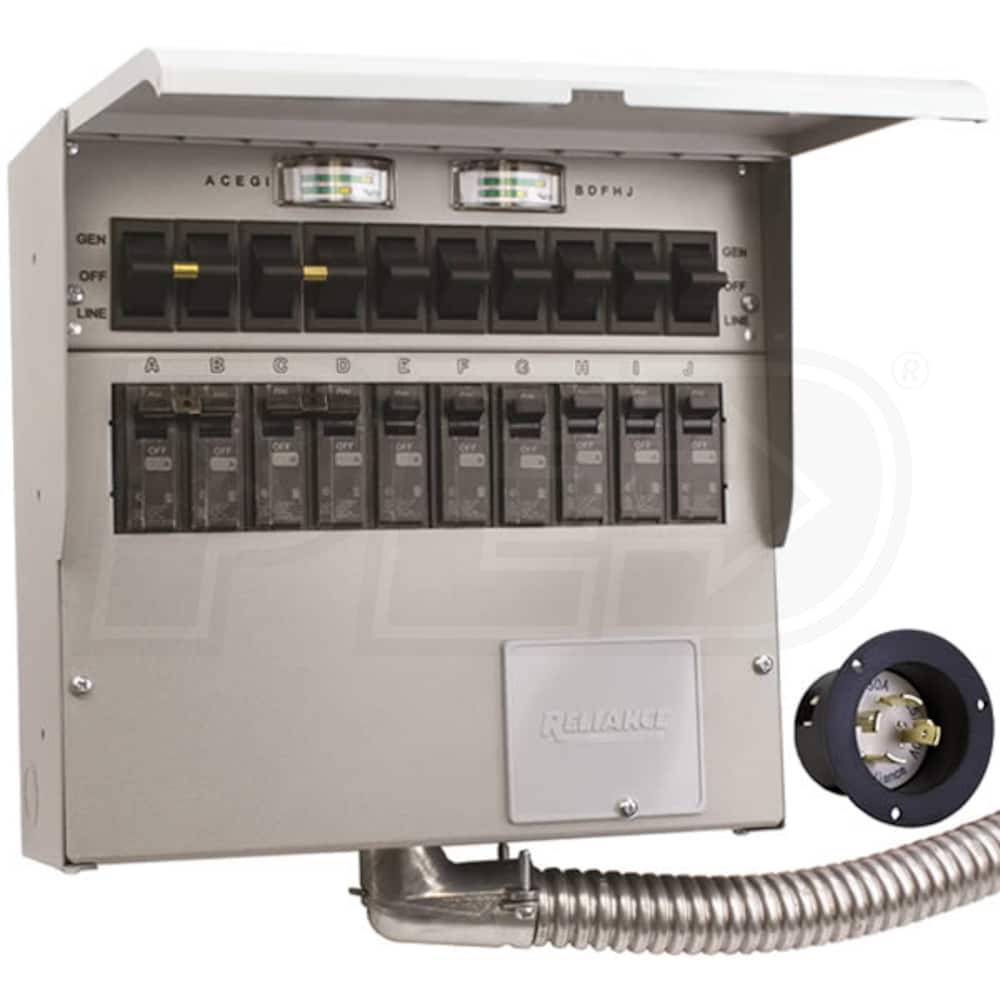

Reliance Controls Pro/Tran 2 - 30-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers & Inlet
Model: A310A
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Type

Amp Rating

Circuits
10
Enclosure

Type
Manual
Amp Rating
30
Circuits
10
Enclosure
NEMA 1R
Features
Features
- Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Multiple Circuit Combinations
- (6) 15A 1-pole, (1) 20A 2-pole and (1) 30A 2-pole
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (10) Total Circuits (1" Interchangeable Style)
- Mix any combination of single and double pole circuits
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet (Included)
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs & povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012175
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Type

Amp Rating

Circuits
10
Enclosure

Type
Manual
Amp Rating
30
Circuits
10
Enclosure
NEMA 1R
Features
Features
- Pro/Tran® 2 30-Amp 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- Multiple Circuit Combinations
- (6) 15A 1-pole, (1) 20A 2-pole and (1) 30A 2-pole
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- (10) Total Circuits (1" Interchangeable Style)
- Mix any combination of single and double pole circuits
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Versatile Connection
- Allows hardwiring OR plug-in connection via power inlet (Included)
- Hinged, Non-Metalic Cover
- Protects toggle swtiches/breakrs & povides a finished apperance
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- Safety & Certifications
- Certified for use by Underwriter Laboratories to UL Stanard 1008
- Meets all requirements of article 702 of the NEC ANSI/NFPA 70
- 5-Year Limited Warranty
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012175
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Product Specs
+−
Specifications
Plugs

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012175
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
