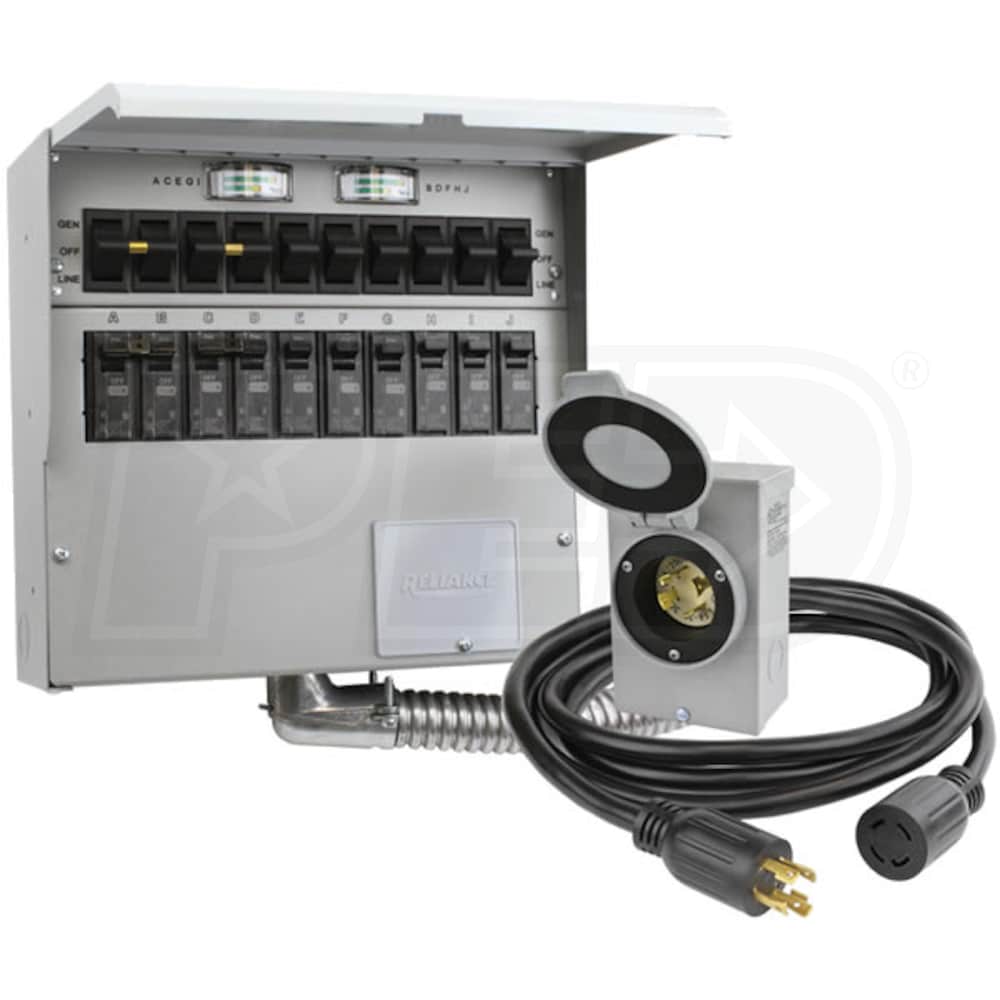

Reliance Controls Pro/Tran 2 - 30-Amp Power Transfer Switch Kit for Portable Generators w/ 10' Cord (10 Circuit)
Model:
310CRK
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Optional Accessories
8
$76.50
Only 1 In-Stock
Model: 08732-0800
$6.50
In-Stock
Model: THP103
$44.99
$28.99
Factory-Direct
Model: THP101
$13.99
Factory-Direct
Model: THP207M
$24.99
Only 2 In-Stock
$40.99
Only 5 In-Stock
Model: THP205
$24.99
In-Stock
Features
- ProTran 2 - Power Transfer Switch Kit (10 Circuit)
- For portable generators w/ L14-30
- Safest Way to Distribute Power
- Eliminates dangerous backfeeds and electrical overloads
- Pro/Tran® 2 10-Circuit 120/240V Manual Transfer Switch
- The next generation of Loadside™ manual transfer switches
- (10) Total Circuits (1" Interchangable Style)
- (1) 20A 2-Pole, (2) 20A 1-Pole & (6) 15A 1-Pole
- 30-Amp AND 20-Amp Compatible (30A Breaker Not Included)
- A & B Circuits can be used for a 30-A 2-Pole circuit (Owner Supplied)
- NEW Color-Coded Built-In Wattage Meter
- Helps you balance and manager generator load
- Powder-Coated Steel Cabinet For Indoor Installation
- 18" Flexible conduit w/ all factory wires clearly marked/colored
- Hinged, Non-metalic cover protects the breakers/switches
- 10' 30-Amp (L14-30) Power Cord
- Heavy-Duty, rubber molded design rated up to 7500w @ 240V
- 30-Amp (L14-30) Power Inlet Box
- Rain-tight design w/ flip-lid keeps dirt & debris out; Generous wiring space
- Certified to UL Standard 1008 & Meets All Req'd 702 NEC ANSI/NFPA 70
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Cadmium which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Plug Types
310CRK
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
20 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012021
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
6
20A 120V
2
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Cord
Cord Length
10 feet
Connection Type
Male
Prongs
Four-Prong
Wire Gauge
10 Gauge
Reviews
(68)
Reliance Controls 310CRK Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.94
(67 Ratings)
5
(63)
(63)4(4)
(4)3(0)
(0)2(0)
(0)1(0)
(0)

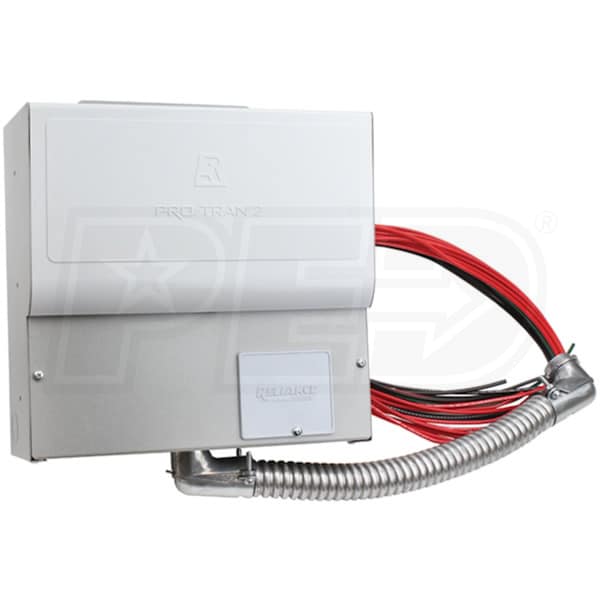

These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 18-inch flexible conduit whip attaches easily to the load center and all wires are clearly marked. Simply select the circuits needed in an emergency and connect them to the wire leads. This model feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, resettable branch rated circuit breakers and non-defeatable double-throw switches. This model is intended for use with a generator up to 7500watts. With this transfer kit you can run power to 10 total circuits; six 15-Amp (120 Volts) and two 20-Amp (240 Volts).
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great Parts
By Lee Ann R
West Virginia
Purchased 01/02/2025 |
Review Posted 01/23/2025
Excellent parts and easy directions for putting it all together. Thanks
Lee Ann R Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Great Product
By Heriberto H
Florida
Purchased 05/30/2024 |
Review Posted 07/13/2024
Perfect
Heriberto H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use
Cons:
None
Manual Transfer Switch
By Jay D
North Carolina
Purchased 04/05/2024 |
Review Posted 05/20/2024
Product was just as advertised and arrived as projected. Kit was complete and is very easy to install if you are comfortable working with electricity. Works well with no issues.
Jay D Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use, I'd Buy It Again
Cons:
None
Wires Too Short
By Kay N
Vermont
Purchased 12/04/2023 |
Review Posted 12/27/2023
The product is definitely of quality and works as advertised. One issue in my case was that the pigtail wires for each circuit that are connected in the panel box were too short and needed to be added to in several cases. The other issue is the length of flexible conduit that is provided. It was also too short in my case and most suppliers do not sell that product by the foot. Clearly it would not have been feasible to purchase a whole roll to gain the extra 10” I needed. A good solution to both of these problems is for the company to offer the product with options for how long the wires need to be.
Kay N Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Price
Pro/Tran2 30 Amp Transfer Switch
By John B
New Mexico
Purchased 05/25/2023 |
Review Posted 06/16/2023
This system is very well built and easy to hook up to my system. Everything that I was looking for in a Emergency transfer system
John B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Great Product
By Paul S
Tennessee
Purchased 04/29/2023 |
Review Posted 05/23/2023
This kit exceeded all my expectations. It even included all the wire nuts, which I didn’t expect. Was very easy to install and use. I would suggest taking lots of time to plan and prepare by following the instructions and first identify and label the 10 circuits you want to use in the transfer switch. That makes the installation go quicker and avoids errors. You will need to purchase the correct size and length of wire for the generator plug connection.
I’m using this kit with a Generac 8KW portable generator. The whole project was easy and went smoothly. I highly recommend this kit for anyone with a little bit of technical ability and understanding. I’m an engineer (not electrical) and it was a fun project.
I’m using this kit with a Generac 8KW portable generator. The whole project was easy and went smoothly. I highly recommend this kit for anyone with a little bit of technical ability and understanding. I’m an engineer (not electrical) and it was a fun project.
Paul S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
None
Good Product
By Jim G
Wisconsin
Purchased 03/21/2023 |
Review Posted 05/05/2023
Works well and was as advertised.
Jim G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again
Cons:
Expensive
10 Circuit Manual Transfer Box
By Elvin A
Michigan
Purchased 04/26/2023 |
Review Posted 05/04/2023
Good quality.
Elvin A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, High Quality
Cons:
None
Works Surprisingly Well
By Davis P
Tennessee
Purchased 02/26/2023 |
Review Posted 05/01/2023
I have this unit paired up with my ecoflow solar generator. Two delta pro and two extra batteries, a combined total of 14,400kwh of stored power. Which is connected to a double voltage hub that can make 240v. The hub has a 4 prong inlet that connects straight to the transfer switch and can run 240v or 120v appliances. “Pretty much can power my whole (midsize single family house) house, I use 2 30 amp switches for the water heater “ didn’t need to connect the electric stove and AC unit. “Too much of a wattage draw”. For the cloudy or rainy days I have a back up GAS generator to recharge my batteries or if i choose to run my gas generator to power the house, I can do that too. This transfer switch gives me peace of mind knowing my family will be comfortable when there’s a power outage. Strongly recommend it
Davis P Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Private Party Install
By Bob B
South Dakota
Purchased 02/07/2023 |
Review Posted 03/06/2023
Very easy to install and wire up. Glad to have in case of emergency.
Bob B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Easy To Use
Cons:
None
