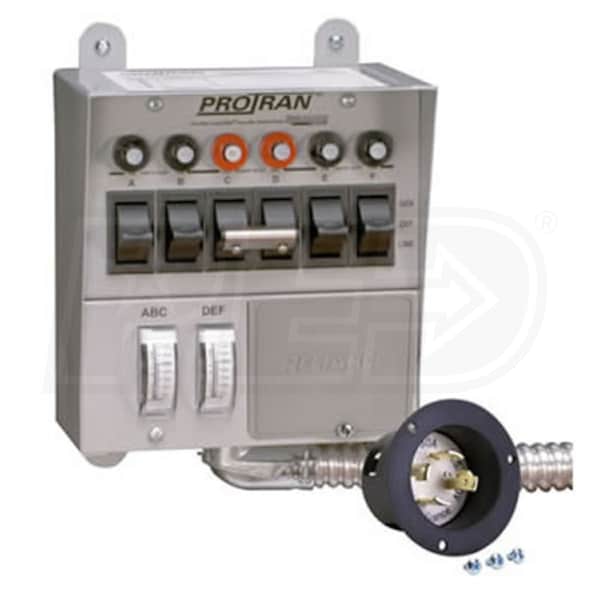

Reliance Controls 30-Amp (120/240V 6-Circuit) Indoor Transfer Switch

Reliance Controls 30-Amp (120/240V 6-Circuit) Indoor Transfer Switch
Model: 30216A
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued

(as of 06:02 CST - Details) Sales Tax Extra $245.04Visit Site
Sales Tax Extra $234.66Visit Site
Discontinued
Sorry, this product is no longer available
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
  • Product Description
  • 13
    Reviews
  • 5
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
6
Enclosure
NEMA 1R
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 6 Total Circuits
  • Four 1-Pole (120 Volts) and One 2-Pole (240 Volts)
  • UL Listed
  • Certified for use by Underwriter Laboratories
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
9 Pounds
Product Length
7.5 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
851890000164
Type
Manual
Amp Rating
NEMA L14-30R
Circuits
6
Enclosure
NEMA 1R
Features
Features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Built-in Wattage Meter
  • Track power input to ensure proper load balancing
  • 6 Total Circuits
  • Four 1-Pole (120 Volts) and One 2-Pole (240 Volts)
  • UL Listed
  • Certified for use by Underwriter Laboratories
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
9 Pounds
Product Length
7.5 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
851890000164
Product Specs
+
Specifications
Plugs
NEMA L14-30R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
Overview
Made in USA
Yes
Weight
9 Pounds
Product Length
7.5 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Consumer Warranty
2 Years
UPC
851890000164
Reviews
(13)
+
Reliance Controls 30216A Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(5)
+
I am looking at this particular Transfer switch for emergency back up. I noticed it has 4- 15 amp single pole breakers and 1 Double pole 20 amp at C and D. My breaker panel has two 20 amp single pole breakers that supplies my fridge and freezers that I want to back up. My questions to you, are the 15 amp breakers in the transfer switch ok to tie in with the 20 amp breakers I am looking to back up? or Do they need to be equal to the breakers in the panel? Thank you.
Larry
from Maryland
September 24, 2013
Read Response +
Answer
Thank you for your interest in Electric Generators Direct!

The Reliance Controls, 30216A will not be sufficient to support the described load.
You will need to support the required 20 amp breakers with ones rated at an equal or greater level. I would recommend the Reliance Controls Q310A, which is rated for the same amount of power, but is equipped with 1 20a 2-pole and 1 30a 2-pole breaker.

Q310A
Hide Response -
jim can u take out the bar on the 2 pole 20 amp breaker and have 6 single pole breakers on the reliance 30 amp switch?
Bruce Mcsperrin
from Connecticut
August 31, 2012
Read Response +
Answer
Yes, you can remove the handle ties. Basically, you have two single pole switches there, each with it's own hot wire to it. Removing the handle tie turns the 2 pole switch into two 1 pole switches for a total of 6 circuits.
Hide Response -
Jim, I have a 5000 watt portable and want to install a tranfer switch. I want to locate the power inlet box outside my basement wall but the location is about 35 feet from my panel. What do you suggest. Thanks! Dave
Dave Dezzi
from Pennsylvania
August 19, 2011
Read Response +
Answer
This Reliance Controls transfer switch is a good choice but the have the connection outlet the distance you want you would need to go with the PB30 power inlet box which can be mounted where you needed it and then hardwire from it to the transfer switch. There should be no concerns with the distance if you use 10 gauge wire for the connection from the box to the transfer switch. See link below for suggested model:

Reliance Controls PB30
Hide Response -
Jim, Does this manual transfer switch Model 30216A come with the power inlet or is that a separate item to purchase?
Sam
from Illinois
March 03, 2011
Read Response +
Answer
Sam,

The manual transfer switch comes exactly as it is pictured with the receptacle separate. The new National Electric Code established in Jan 2010 states that manufacturers cannot install the receptacle on the face of an indoor manual transfer switch anymore. This is done to prevent users from connecting a short cord and running their generator inside their garage or structure. All generators must be run outside for proper ventilation due to the abundance of carbon monoxide that they produce.
Hide Response -
Hey Jim... Reliance Controls 30-Amp (120/240V 6-Circuit) Indoor Transfer Switch... Will this transfer switch work with a Honda 3500 watt generator??? Thank You...
Randy
from California
March 02, 2011
Read Response +
Answer
This switch is rated for up to 7500 watts and can easily handle a 3500 watt generator but the key will be the connections. This unit comes with an outlet that is rated at 30A and has 4-prongs since it can handle 120V & 240V. You will have to check the largest outlet you have on your generator and I would suggest you purchase an outdoor power inlet box that matches your generator and then have that wired directly to the transfer switch. That way when you decide to upgrade all you have to do is change the power inlet box instead of the whole transfer switch.

Power Inlet Boxes
Hide Response -
