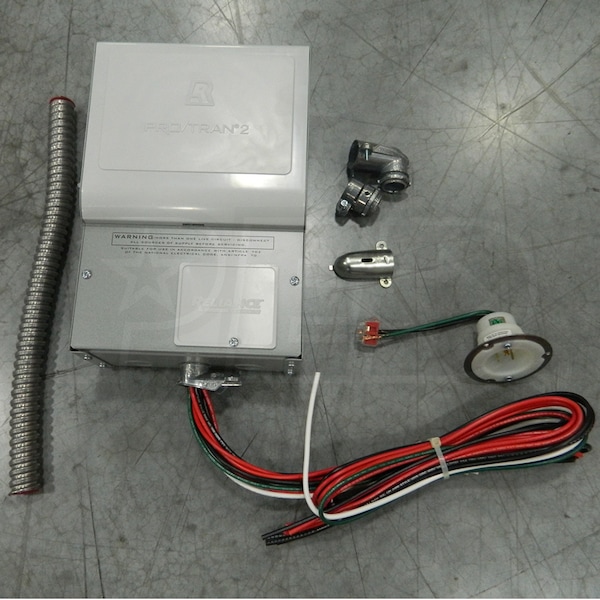

Reliance Controls Pro/Tran 2 - 15-Amp (120V 4-Circuit) Indoor Transfer Switch (Scratch & Dent)

Model:

104B-SD

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reliance Controls Pro/Tran 2 - 15-Amp (120V 4-Circuit) Indoor Transfer Switch (Scratch & Dent)
Reliance Controls Pro/Tran 2 - 15-Amp (120V 4-Circuit) Indoor Transfer Switch (Scratch & Dent)
Model: 104B-SD
Was $203.55
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Manual

Amp Rating

15

Circuits

4

Voltage

120 Single-Phase

Enclosure

NEMA 1R

  • ***Scratch & Dent Model*** - Cosmetic Damage - Corner Is Dented - May Have Scratches/Scuffs
  • Pro/Tran® 2 Series 15-Amp 4-Circuit 120V Manual Transfer Swtich
  • Same benefits as the original plus new some new features
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • (4) Total Circuits (1" Interchangable Style)
  • Four 15-Amp Single-Pole (120 Volts) circuits
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet
  • Enclosure has 6 combination 1/2-inch and 3/4-inch knockouts
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Simple Connection - Once Switch Is Installed
  • Allows for quick deployment so you'll be up and running fast
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty

Specifications

Plug Types
NEMA 5-15R (Wall-Type)
104B-SD
specs product image PID-80868
Overview
Weight
7 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
7.7 Inches
Product Width
7 Inches
Product Height
4.5 Inches
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Rated Watts
1875 Watts
Rated Amps
15 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
4
Max Generator Input
15 Amps
Maximum Wattage
1875 Watts
UL Listed
Yes
Transfer Switch Circuits
15A 120V
4
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 5-15R - Wall-Type
1
