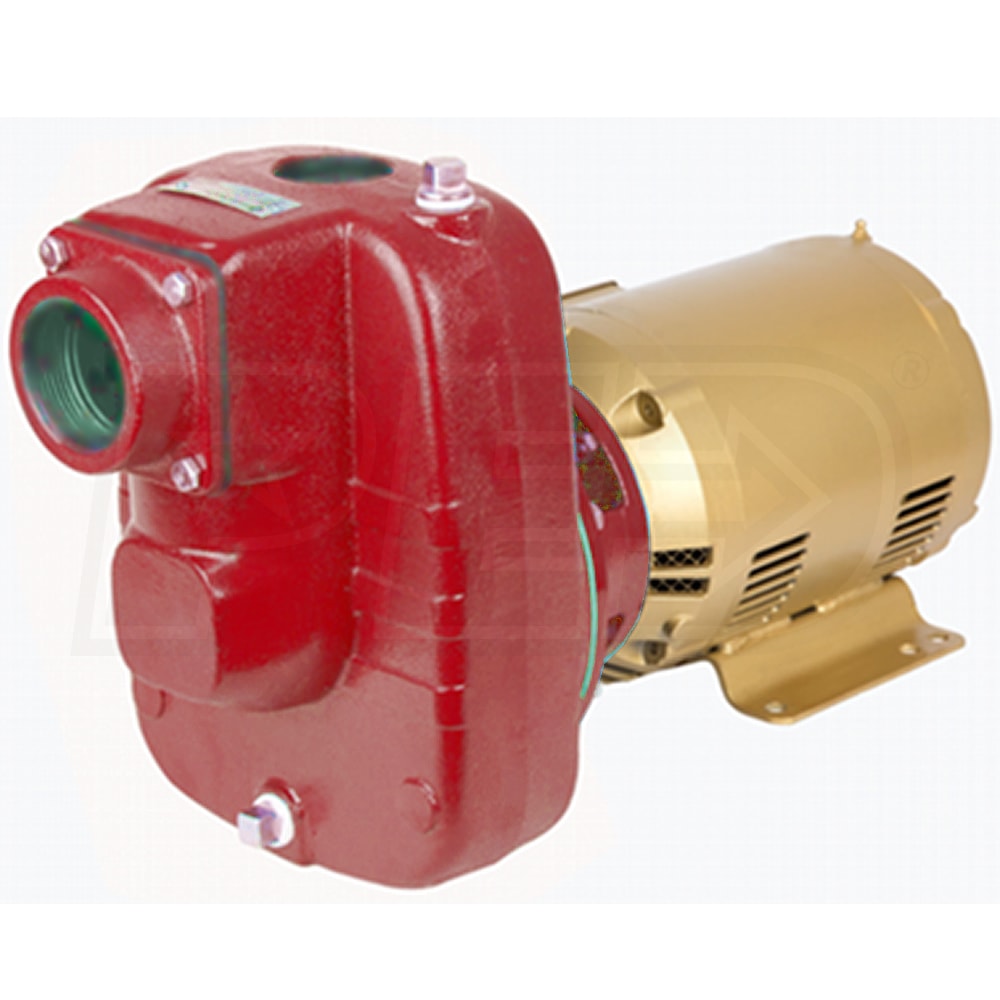

Red Lion 124 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump 614481

Model:

614481

Write A Review
$1,689.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability November 11, 2024
Shipping to60601

Red Lion 124 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump 614481
Red Lion 124 GPM 3 HP Self-Priming Cast Iron Sprinkler Pump 614481
Model: 614481
$1,689.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Sprinkler

GPM

124 Gallons

  • 3 HP Lawn Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Also for garden irrigation, boosting household water pressure
  • Can be used for recirculation of large volumes of water
  • Heavy-Duty Cast Iron Construction w/ Cast Iron Impeller and Diffuser
  • Designed for years of service and reliability
  • 230 Volt Heavy-Duty Century Motor
  • Energy efficient design for year of reliable operation
  • Self-Priming Design Up To 25'
  • Engineered Pump Housing & Hydraulics
  • For high performance, efficiency and quiet operation
  • Additional Specs
  • 2" Suction / 2" Discharge
  • 16.1A @ 230 V
  • 1 Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

614481
specs product image PID-8810
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
16.1
Pump
Gallons Per Minute
124 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Housing Material
Cast Iron
Impeller Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
59
Submersible
No
Engine
Horsepower
3 HP
Overview
Product Category
Water Pump
Weight
134 Pounds
Consumer Warranty
1 Year
Product Length
26.5 Inches
Product Width
13.5 Inches
Product Height
15 Inches
UPC
010121124615
Additional Model Numbers

RLHE-300, 614481
