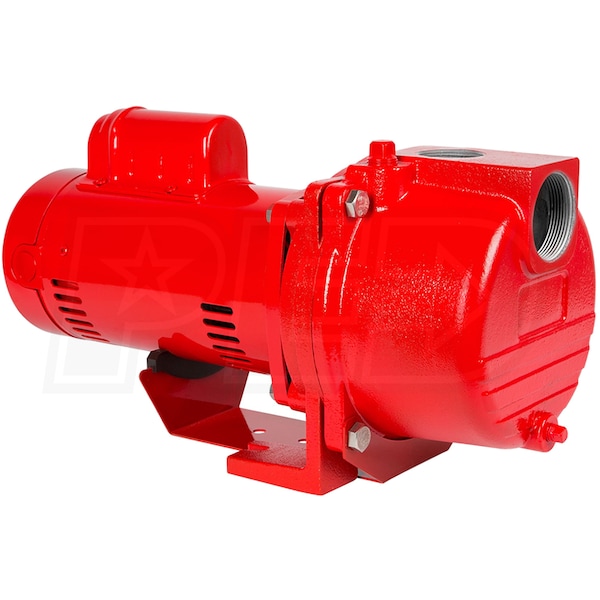

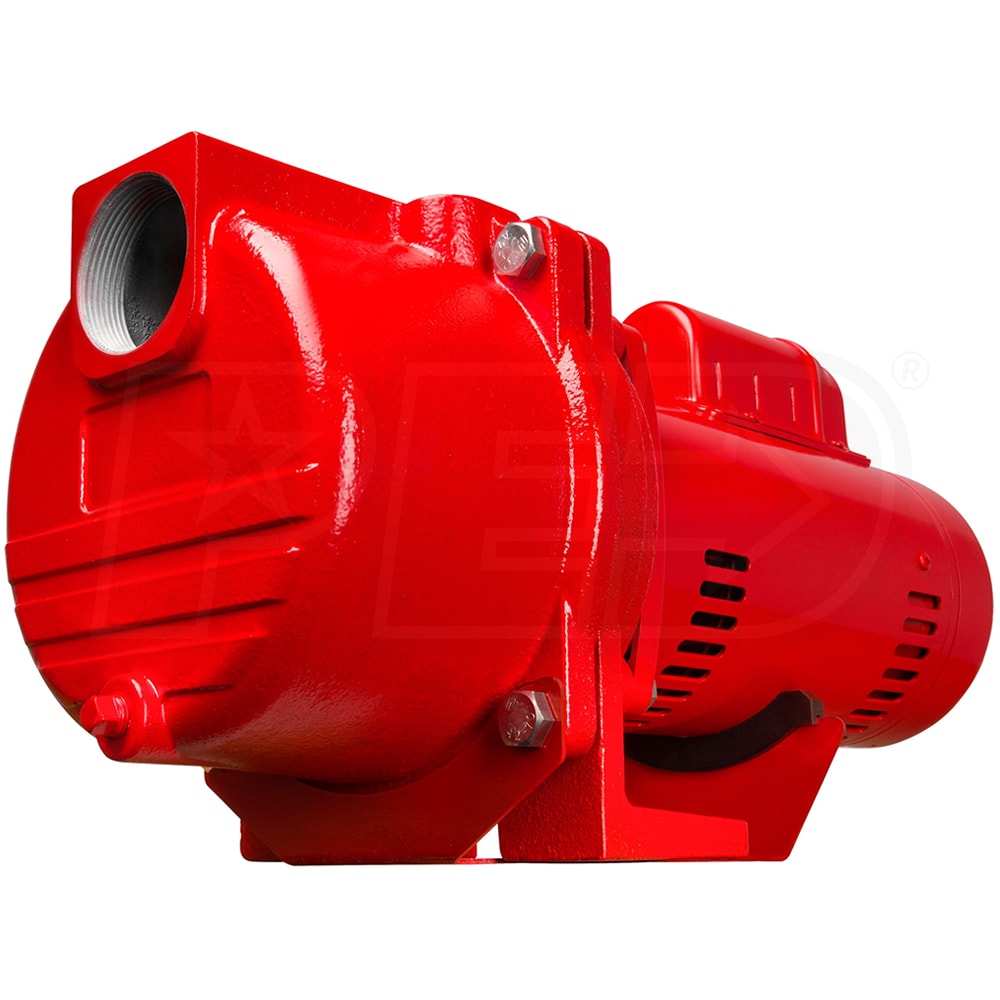

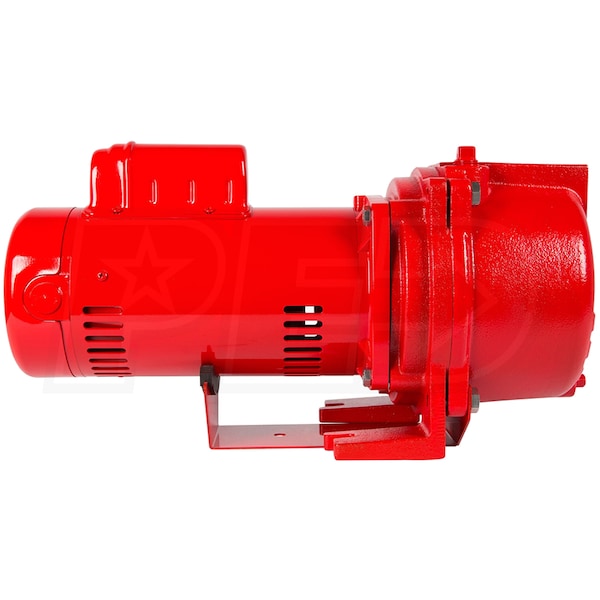

Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump

Model:

97101501

Write A Review
$399.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Today, May 2nd
Shipping to60601

Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump
Red Lion 71 GPM 1-1/2 HP Self-Priming Cast Iron Sprinkler Pump
Model: 97101501
$399.00
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

2 Inch

Style

Sprinkler

GPM

71 Gallons

  • 1-1/2 HP Lawn Sprinkler Pump
  • For use in underground or above ground lawn sprinkling systems
  • Also for garden irrigation, boosting household water pressure
  • Can be used for recirculation of large volumes of water
  • Heavy-Duty Cast Iron Construction w/ Thermoplastic Impeller
  • Designed for years of service and reliability
  • 115/230 Volt Heavy-Duty Motor
  • Voltage selector for simple connection to existing power source
  • Self-Priming Design
  • After initial fill, no additional priming required
  • Engineered Pump Housing & Hydraulics
  • For high performance, efficiency and quiet operation
  • Additional Specs
  • 2" NPT Intake / 1-1/2" NPT Discharge
  • 18.6 A @ 115 V
  • 9.3 A @ 230 V
  • 2-Year Warranty

Specifications

97101501
specs product image PID-83288
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Running Amps
9.3
Pump
Gallons Per Minute
71 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
44
Submersible
No
Engine
Horsepower
1.5 HP
Overview
Product Category
Water Pump
Weight
64 Pounds
Made in USA
No
Consumer Warranty
2 Years
Product Length
19.9 Inches
Product Width
9.26 Inches
Product Height
10.6 Inches
UPC
010121001404
Additional Model Numbers

RL-SPRK150, 97101501

Reviews

(50)
Red Lion 97101501 Reviews & Ratings
Customer Photos and Videos
review image 1
review image 2
review image 3
Dale, the Power Equipment Expert
Expert Recommended Review
By Dale V.
Power Equipment Expert
Review Posted 04/12/2019
This cast iron pump is designed for years of service and reliability. Sprinkler pumps are designed for proper lawn and garden saturation when you have an alternative water source.

This 1-1/2HP model is self-priming, which means you only need to prime it one time! This means less time to get going after the initial set up.

A great pump at a great cost and it get our recommendation as well!
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Red Lion Sprikler Pump
By Carlos V
Texas
Purchased 06/14/2023 |
Review Posted 08/17/2023
Probably the best pump out there for the money.
Carlos V Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
The Red Lion Works Well And Even Looks Good!
By Jon L
West Virginia
Review Posted 09/15/2022
Shipment was prompt with good packaging. Pump was fully to specifications. The bright red even looks good. Fully satisfied with performance to date.
Jon L Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Id Buy It Again
Irrigation Pump To Replace Old Pump That Died.
By John A
Wyoming
Review Posted 09/13/2022
Fast delivery time. Looks great. Works even better. Install was simple. Glad I went with Red Lion. Waterpumpsdirect.com had the best price.
John A Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Super Strong Pump
By John R
Texas
Review Posted 07/06/2022
I purchased this pump to replace an existing pump that the impeller housing had frozen and cracked. I pump water from our small lake to supply our 3/4 acre sprinkler system. This pump was easy to install and hook up to my existing pipes and once I primed it the pump has performed flawlessly. It is providing more pressure than I had before.

I purchased this pump because of its cast iron construction and its brass impeller. I also wanted one that could be drained in the winter. I do not want to ever have another casing break due to a freeze. Water Pumps Direct also had this pump at a substantially lower price than the same pump on other sites. I highly recommend Red Lion and Water Pumps Direct!
John R Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Verified Buyer
Verified Buyer
Pump Works Just Fine
By John H.
Montgomery, Texas
Purchased 07/26/2021 |
Review Posted 08/18/2021
We have purchased two of these pumps now. The first one only failed because of a freak weather event, when the temperature dropped below 10F.
John H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
High Quality, Price, Reliable, Id Buy It Again
Verified Buyer
Verified Buyer
Red Lion 1,5 Hp Sprinkler Irrigation Pump From Water Pumps Direc
By Howard P.
Port Charlotte, Florida
Purchased 06/29/2021 |
Review Posted 07/22/2021
Runs quiet, strong pressure.
Howard P. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Quiet, High Quality, Price, Reliable
Verified Buyer
Verified Buyer
This Pump Rips. It Rips.
By George P.
Coaldale, Colorado
Purchased 06/10/2021 |
Review Posted 07/02/2021
Look out. Here comes the water. Put it into a hose, put it into a pipe. Here it comes. Badass.
George P. Recommends This
Was this review helpful?
Rating Breakdown
Features
4/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Quiet, High Quality, Fast
Verified Buyer
Verified Buyer
Great Pump At A Good Price
By Richard F.
Wyoming, Minnesota
Purchased 06/07/2021 |
Review Posted 06/29/2021
I use this pump to water my 1/2 acre lawn and garden. The pump easily runs 4 impact sprinkler heads at a time.
Richard F. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Price, Id Buy It Again, Id Buy It Again
Verified Buyer
Verified Buyer
Not A Direct Replacement For The Rlsp-150 I Purchaced 6 Yrs. Ago
By Dan C.
West Richland, Washington
Purchased 05/14/2021 |
Review Posted 06/29/2021
The pump has a smaller impellar and housing than the previous rlsp-150 that I had ,which failed do to no part of it's own.
I could not get this pump to lift 6 ft.as the old one did so I ended up rebuilding the old one and it went right into service. Would not buy again.
Dan C. Does Not Recommend This
Was this review helpful?
Rating Breakdown
Features
3/5
icon-review-marker
Quality
3/5
icon-review-marker
Performance
1/5
icon-review-marker
Value
2/5
icon-review-marker
Pros:
Quiet
Cons:
Bad Instructions
Verified Buyer
Verified Buyer
RL-SPRK150
By Edwardo D.
Kissimmee, Florida
Purchased 05/24/2021 |
Review Posted 06/16/2021
Best pump I ever had.
Edwardo D. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Quiet, Exceeded Expectations, Reliable, Fast
Cons:
Heavy
