Ramsplitter 3PT20PTOHV - 20-Ton Horizontal / Vertical 3 Point Tractor Log Splitter w/ PTO Pump for sale.

Power Equipment Direct Offers Free Shipping and a Tax-Free Guarantee on Ramsplitter 3PT20PTOHV.

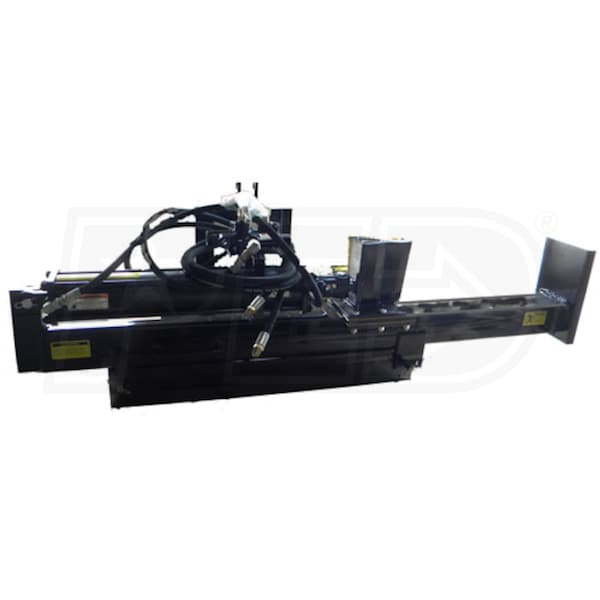

Ramsplitter 20-Ton Horizontal / Vertical 3 Point Tractor Log Splitter w/ PTO Pump

Ramsplitter Power Equipment and Accessories
Model: 3PT20PTOHV
(Based on expert analysis, manufacturer ratings and customer reviews)
3.5 out of 53.5 out of 53.5 out of 53.5 out of 53.5 out of 5
8 Reviews
Share This Product
Plus 1 This Product
Tweet This Product
Pin It!
Factory DirectFactory Direct
This Item Is Built To Order

Factory items ship direct from the manufacturer. Shipping times vary.
+$50.00 What is Lift Gate Service?
Extended Warranty
Excludes CA

Free Freight$2,069.99
No Sales Tax*
(Except IL)
Free Freight$2,069.99
No Sales Tax*
(Except IL)
Visit Site
  • Features
  • Specs
  • 1
  • 8
  • Articles
  • Shipping
  • Accessories
PTO Log Splitter
Vertical/Horizontal Log Splitter
Log Length
Designed For PTO Drive On Tractors Of All Sizes
No additional gearing is required

Splits Wood In Either Horizontal Or Vertical Postions
Don't lift those big logs, just roll them into place
20 tons of ram force can split logs up to 26" long

Gear-Type, Heavy Duty Pump
Cycle time for tractors under 25 HP is around 12 seconds
Cycle time for tractors over 25 HP is around 6 seconds

Self Adjusting Wear Plates
Seal off leakage during the life of the pump
Offset any wear or expansion
Built in relief valve protects the hydraulic system

Quality Construction
High tensile aluminum housing and minimum gear clearance
Cast iron end plates, solid rectangular tube prevents twisting

Internal Splined Shafts
Go all the way through with roller bearing support on both sides
21GPM @ 540RPM with 1/3/8" 6-Spline
Category 1 pins included

Wedge Material
Wedge Size
8 Inches
Wedge Style
Replaceable Wedge
Sharpenable Wedge
Auto Return
Hydraulic Filter
Hydraulic Oil Included
Cycle Time
12 Seconds
Cylinder Diameter
4 Inches
Cylinder Length
24 Inches
Log Capacity
Max Log Length
26 Inches
Made in USA
500 Pounds
Consumer Warranty
1 Year
Download Documents
No documents available at this time
Need Help? Call Our Experts.
  1 Question
Q: 3pt20ptohv- how many gallons of hydraulic fluid does the tank hold and do I need my own PTO shaft. Thanks for your previous reply.
by Lule Wilcox from Oregon on July 24, 2015

A: Luke,

This splitter does not require a PTO shaft. The pump mounts right on the PTO shaft on the tractor. The tank holds roughly 8 gallons of hydraulic fluid.
by Dale, Product Expert

Ramsplitter 3PT20PTOHV Reviews & Ratings
Overall Rating
3.5 out of 53.5 out of 53.5 out of 53.5 out of 53.5 out of 5
Features (1)
Durable (1)
Bad Instructions (2)
I Ordered Kubota Orange ... (1)
Unreliable (1)
Difficult To Use (1)
Low Quality (1)
50% of respondents would recommend this product to a friend
8 Reviews  Sort by
Dale, the Log Splitter Expert

Bob Crew
Product Expert
Total Reviews
21 Reviews
Total Helpful Votes
80 Helpful Votes
Ramsplitter-- Quality Can Take Time, So Be Patient
Ramsplitter builds every one of their log splitters in Rockford, IL. While these units are manufactured in America by U.S. labor, the manufacturing process is very manual and time-consuming, and as a result, it’s not unusual for a Ramsplitter brand log splitter to take as long as 6 to 8 weeks to ship to you from the time you order. There is no denying the unit you receive will be a top-quality product made by American workers. Just be prepared to wait for your unit to actually show up at your... more
Was this review helpful?
Michael T.
Woodlawn, IL
Most Helpful Critical Review
2 out of 52 out of 52 out of 52 out of 52 out of 5
It's A Good Thing I Used To Race Stock Cars
My three point vert/horizontal log splitter came with some poorly designed/ fabricated pins to lock it either the vertical or horizontal positions. It came with pins too long that slide through round tubing with weak springs and roll pins through the pins. The roll pins break, rendering the springs useless.

Then the pins don't even line up with the holes they are supposed to lock into. I was driving across a field with the log splitter in the vertical position, hit some bumps rocking the... more
Cons: Low Quality, Difficult To Use, Unreliable, Bad Instructions
Michael Does Not Recommend This Product
Was this review helpful?
Purchased from Power Equipment Direct
Purchased 1/25/13
Total Helpful Votes
15 Helpful Votes
5 out of 55 out of 55 out of 55 out of 55 out of 5
Performs As Advertised!
I had someone connect the log splitter to my tractor so I can't comment on any hookup issues, but the man who did it for me had no problems that I know of. As far as usage, it's very easy to use. I don't have to do anything but idle my tractor so the gas used is minimal. I guess if I had a helper, I would go faster. I love the vertical /horizontal option. It's very quick and easy to go from vertical to horizontal and back again. I also love that there is zero maintenance.
Was this review helpful?
Larry S.
Chisago City, MN
Purchased from Power Equipment Direct
Purchased 11/22/10
Total Helpful Votes
19 Helpful Votes
1 out of 51 out of 51 out of 51 out of 51 out of 5
Bad Valve
I took delivery of the unit last year and when I tried to use it my tractor stalled. Thinking that my Ford 9N was running at low power, I checked the timing and wires etc. and improved it's output. Sometimes the splitter worked great and other times it would continue to stall the engine with a large spasm of the hoses. I took the valve to a hydraulic repair firm that is nearby and they disassembled the valve. The relief/pressure regulating section was gauging and scored badly. The ball was... more
Was this review helpful?
David Borden
New Castle, NH
Purchased from Power Equipment Direct
Purchased 6/6/11
Total Helpful Votes
18 Helpful Votes
5 out of 55 out of 55 out of 55 out of 55 out of 5
It took two weeks to arrive and the shipper wanted to charge me for a delivery to a different location or even if I picked it up at the local shipping office.

The splitter works fine and tackled some very big old knotty wood. It is fast and well designed.

I would suggest that the splitter come with a diagram on how to hook up the plumbing. I had no trouble but a lot of head scratching.

It would be good if there were a default on each end of the stroke. If you don't let go of the... more
Was this review helpful?
Green Bay, WI
Purchased from Power Equipment Direct
Purchased 1/1/12
Total Helpful Votes
11 Helpful Votes
5 out of 55 out of 55 out of 55 out of 55 out of 5
Very Capable.........
After installing all couplers and hoses and getting the pto delivered separately, filling the reservoir with a bit over 7 gallons of transmission fluid, I connected the pto pump to rear pto on JD 4100 and started engine.

With pto engaged the fluid pressurized the hoses and was ready for work. The three-point allows the height of the splitter to be adjusted based on your needs.

Splitter functioned as expected with no hesitation on all logs, maple, basswood, black locust and willow. more
Was this review helpful?
Purchased from Power Equipment Direct
Purchased 9/11/12
Total Helpful Votes
10 Helpful Votes
4 out of 54 out of 54 out of 54 out of 54 out of 5
Initial Hurdles
I have purchased several pieces of equipment over the years, but I have never had one come without an instruction manual for operating and maintenance. My 3-pt hitch, PTO driven unit came with a manual, but it was for the self-contained, motor driven unit.

It would have been helpful to know how long the PTO shaft would have to be in order to mount the pump (I had to purchase an extension.). It would have been helpful to have a diagram for installing the hoses. It would have been helpful... more
Was this review helpful?
Robert T.
Stone Ridge, NY
Purchased from Power Equipment Direct
Purchased 4/8/14
4 out of 54 out of 54 out of 54 out of 54 out of 5
Ramsplitter 20 Ton Hor/vert 3pt
I am pleased with the device, but as I said above, I was disappointed in the color (not the one ordered). And, the shipping company gave a window of 1-4 PM on a specific day, but did NOT come then, and it was difficult to reach the shipper. They did come, but 1 1/4 hours after the end of the window. The unit came with instructions primarily written for a gas powered stand alone unit, not a 3 PT unit that I ordered. I had read a review with the same complaint, but that was dated long ago,... more
Pros: Durable, Features
Cons: Bad Instructions, I Ordered Kubota Orange And Got Black Delivered
Robert Recommends This Ramsplitter Product
Was this review helpful?
