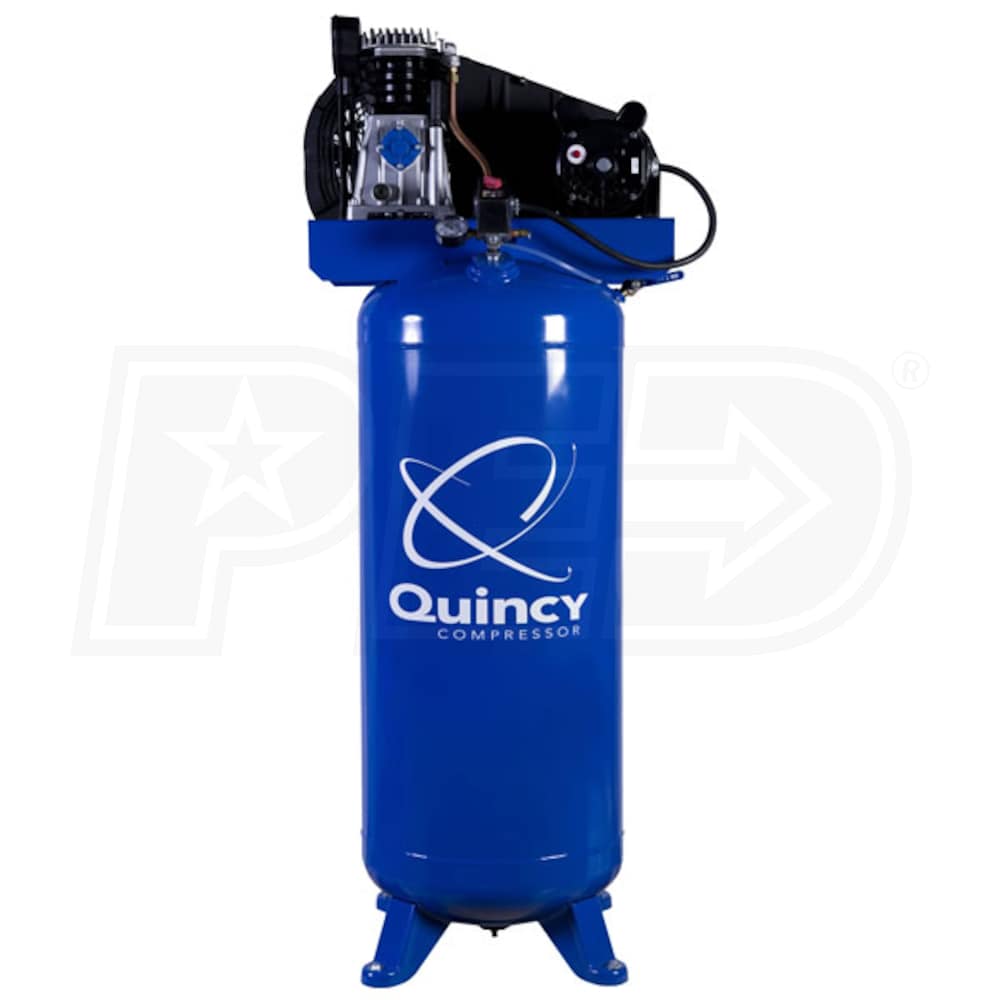

Quincy 3.5-HP 60-Gallon (Belt Drive) Single Stage Air Compressor (230V 1-Phase)
Model: Q13160VQ
+
Share This Product
-
Product Description
-
76Reviews
-
9Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
12.8
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
12.8 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Perfect For Commercial Or Do It Yourself Applications
- Strong & durable single stage compressor that last
- Perfect for larger projects, spray painting, HVLP spray gun and nail guns
- Cast Iron Cylinder, Crankshaft, & Valve Plate
- Valve plate design provides efficiency & maximum strength
- Assures smooth, trouble-free operation with 10,000+ hour pump rating
- Aluminum Head & Special Fin Design
- Helps dissipate heat; keeps compressor running cool
- 100% factory tested at full pressure
- Start-Stop Pressure Switch
- Automatically starts the compressor when system pressure drops
- Easy-to-read pressure gauges and ASME safety valves
- Develops 14.6 CFM @ 40 PSI; 12.8 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- 60-Gallon ASME Vertical Tank
- Fully enclosed belt guard protects you & the belt
- Easy-access manual drain simplifies routine maintenance
- 1 Year Factory Warranty
- Covers defect in materials & workmanship
- Quincy "No Bull" Extended Warranty Available
- Must include EWK-1 Maintenance Kit at time of purchase
- Must register online; see Warranty PDF under Specs tab for info
- Quincy Part #: 8090253736 Quincy Model #: Q13160VQ
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16
Recommended Breaker
30 Amp Breaker
Engine
HP
3.5
Pump
CFM
12.8
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
261 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
22 Inches
Product Height
68 Inches
Power Type
Electric
UPC
791326101563
Grade
Style
CFM
12.8
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
12.8 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Perfect For Commercial Or Do It Yourself Applications
- Strong & durable single stage compressor that last
- Perfect for larger projects, spray painting, HVLP spray gun and nail guns
- Cast Iron Cylinder, Crankshaft, & Valve Plate
- Valve plate design provides efficiency & maximum strength
- Assures smooth, trouble-free operation with 10,000+ hour pump rating
- Aluminum Head & Special Fin Design
- Helps dissipate heat; keeps compressor running cool
- 100% factory tested at full pressure
- Start-Stop Pressure Switch
- Automatically starts the compressor when system pressure drops
- Easy-to-read pressure gauges and ASME safety valves
- Develops 14.6 CFM @ 40 PSI; 12.8 CFM @ 100 PSI
- Plenty of power to run a wide range of air tools
- Tackle airbrushing, drilling, sanding and bolting/wrenching
- 60-Gallon ASME Vertical Tank
- Fully enclosed belt guard protects you & the belt
- Easy-access manual drain simplifies routine maintenance
- 1 Year Factory Warranty
- Covers defect in materials & workmanship
- Quincy "No Bull" Extended Warranty Available
- Must include EWK-1 Maintenance Kit at time of purchase
- Must register online; see Warranty PDF under Specs tab for info
- Quincy Part #: 8090253736 Quincy Model #: Q13160VQ
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16
Recommended Breaker
30 Amp Breaker
Engine
HP
3.5
Pump
CFM
12.8
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
261 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
22 Inches
Product Height
68 Inches
Power Type
Electric
UPC
791326101563
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16
Recommended Breaker
30 Amp Breaker
Engine
HP
3.5
Pump
CFM
12.8
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
261 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
30 Inches
Product Width
22 Inches
Product Height
68 Inches
Power Type
Electric
UPC
791326101563
Product Q&A
(9)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Does this unit ship with oil in the pump?
Wayne A.
from South Carolina
April 28, 2020
Answer
Yes, this unit does come with oil in the pump. Also, Quincy offers an extended protection plan when purchasing their maintenance kit along with the compressor. This takes the warranty from 1 year to 3 years.
Was this answer helpful?
Yes
7
No
0
+−
Does this model have a U.S.-made motor?
Steve
from Florida
December 20, 2019
Answer
Yes, this is a U.S.-made motor.
Was this answer helpful?
Yes
8
No
0
+−
How many feet does the tank on this model have?
Chris
from Pennsylvania
September 07, 2019
Answer
This compressor has 4 feet.
Was this answer helpful?
Yes
4
No
5
+−
The Q13160VQ has a 50% duty cycle.....50% of what? What time period? Can it be run 30 seconds out of 1 minute? 30 minutes out of an hour?
Kevin
from Michigan
August 23, 2019
Answer
With a 50% duty cycle, going off of a 10-minute time frame, you are looking at 5 mins on and 5 mins off. However, this all depends on your air demands. Your CFM requirements will have an effect.
Was this answer helpful?
Yes
1
No
0
+−
What is the cfm at 40 psi? Just wondering for my HVLP gun.
Artie S.
from New York
August 04, 2019
Answer
14.6 CFM @ 40 PSI.
Was this answer helpful?
Yes
3
No
0
+−
What is the decibel rating on the q13160vq?
Randy Jones
from Washington
October 10, 2016
Answer
I'm sorry- I went all through the manual, the spec sheet, and Quincy's site and I don't see where Quincy has posted a decibel rating for this unit.
There isn't an industry standard (so far) for dBA ratings- so readings could be taken 3 feet away or 10 feet away; in a noisy room or a quiet one. This lack of consistency is one of the reasons many manufacturers won't post a decibel rating.
However- my experience with Quincy piston units is that they are quieter than many others on the market, thanks to quality components and low RPM pumps.
You can see compressors that are built to be quieter than normal in our
Quiet Air Compressor listing.
There isn't an industry standard (so far) for dBA ratings- so readings could be taken 3 feet away or 10 feet away; in a noisy room or a quiet one. This lack of consistency is one of the reasons many manufacturers won't post a decibel rating.
However- my experience with Quincy piston units is that they are quieter than many others on the market, thanks to quality components and low RPM pumps.
You can see compressors that are built to be quieter than normal in our
Quiet Air Compressor listing.
Was this answer helpful?
Yes
0
No
1
+−
Is this Quincy model made in USA?
Heidi Garren
from Ohio
November 28, 2015
Answer
"Made in USA" is a legal term meaning not only is the item built in the US, but all of the parts must come from the US as well.
Quincy has a long history of US manufacture, but folks keep chasing the lowest cost which has priced Made in USA compressors out of the market.
This compressor is assembled in the US of globally sourced, high-quality components, thoroughly tested and backed by Quincy's Factory Warranty.
Quincy has a long history of US manufacture, but folks keep chasing the lowest cost which has priced Made in USA compressors out of the market.
This compressor is assembled in the US of globally sourced, high-quality components, thoroughly tested and backed by Quincy's Factory Warranty.
Was this answer helpful?
Yes
0
No
0
+−
in the reviews there are recurring issues with the plastic tubes blowing off. Does Quincy have a fix for this? Was considering this compressor, but this seems to be a significant problem.
Lee
from Massachusetts
July 21, 2015
Answer
We checked with Quincy & was told that this design works just fine EXCEPT in cases where the customer is using this machine in excess of the 50/50 duty cycle. The machine is really not designed to run any more than 5 minutes out of 10, and this is true of ALL single stage recip machines. When the duty cycle exceeds the recommended duty cycle, the unloader tube can, in some instances, get hot to the point where it releases from the barbed fitting.
Was this answer helpful?
Yes
1
No
0
+−
Steve- I need a new compressor for my home garage. I will be running a small glass bead cabinet, air shears, impact wrench, air drill, plasma cutter, air grinder, sander, etc.. Only running one tool at a time. I really don't want to spend $1500 on a 5HP dual stage. Will this Quincy 60 Gal, 3.5HP work for me?
Many thanks,
Lou
Lou Bogdos
from Texas
July 07, 2015
Answer
The model creates 12.3 CFM. Do you have the CFM requirements of your largest tool? I would look those up on your tools. You will then need 1.5X the required air to ensure your compressor can handle all your needs.
Was this answer helpful?
Yes
3
No
0
