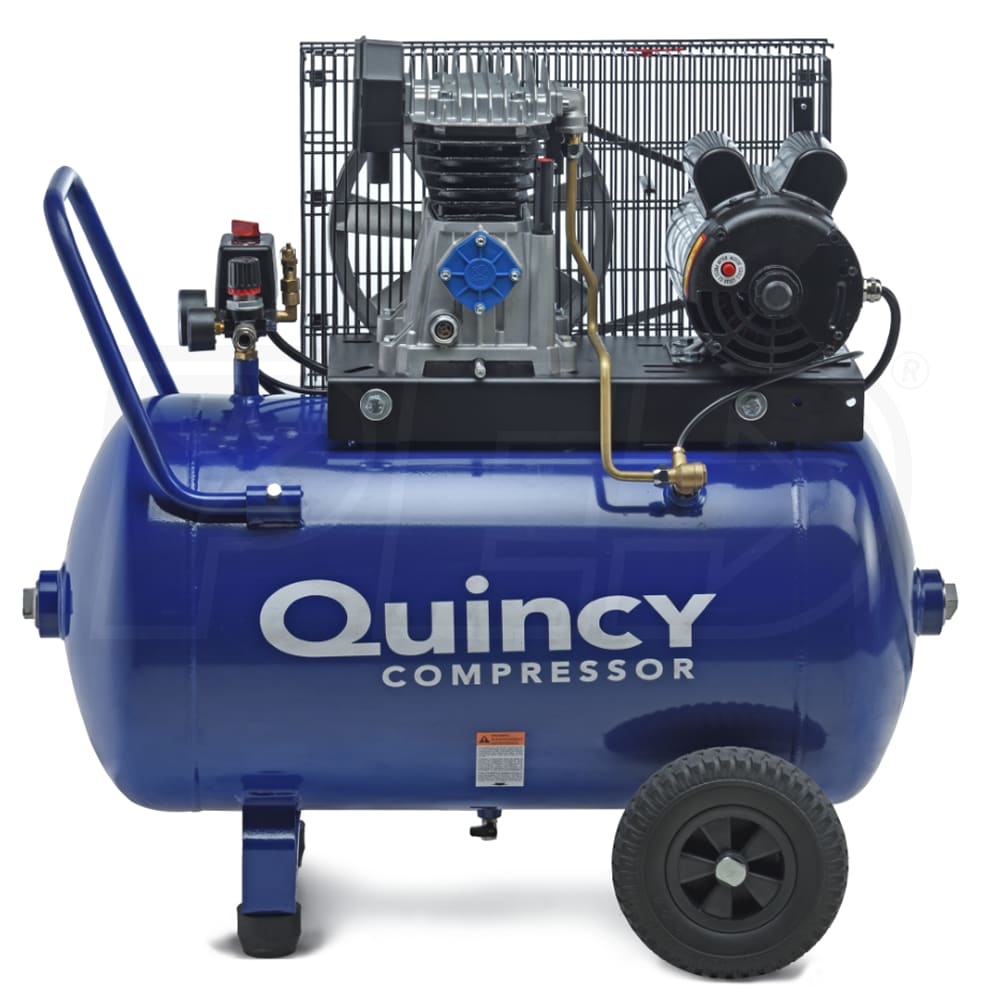

Quincy 2-HP 24-Gallon (Belt Drive) Portable Air Compressor

Model:

Q12124PQ

Write A Review
$899.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Quincy 2-HP 24-Gallon (Belt Drive) Portable Air Compressor
Quincy 2-HP 24-Gallon (Belt Drive) Portable Air Compressor
Model: Q12124PQ
$899.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

7.4

Tank Size

24

  • Perfect For Light Commercial Or Do It Yourself Applications
  • Strong & durable single stage compressor that last
  • Perfect for larger projects, spray painting, HVLP spray gun and nail guns
  • Cast Iron Cylinder, Valve Plate & Crankshaft
  • Valve plate design provides efficiency & maximum strength
  • Assures smooth, trouble-free operation with 10,000+ hour pump rating
  • Aluminum Head & Special Fin Design
  • Helps dissipate heat; keeps compressor running cool
  • 100% factory tested at full pressure
  • 8.3 CFM @ 40 PSI; 7.4 CFM @ 100 PSI
  • Plenty of power to run a wide range of air tools
  • Tackle airbrushing, drilling, sanding and bolting/wrenching
  • 24-Gallon ASME Horizontal Tank
  • Compact design with sturdy tires for easy portability
  • Easy-access manual drain simplifies routine maintenance
  • Start-Stop Pressure Switch & Pressure Regulator
  • Automatically starts the compressor when system pressure drops
  • 1/4" pressure regulator lets you maintain constant air pressure
  • 1 Year Factory Warranty
  • Covers defect in materials & workmanship
  • Quincy "No Bull" Extended Warranty Available
  • Must include EWK-1 Maintenance Kit at time of purchase
  • Must register online; see Warranty PDF under Specs tab for info
  • Quincy Part #: 1129740227 Quincy Model #: Q12124PQ
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

Q12124PQ
specs product image PID-110581
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
19
Recommended Breaker
30 Amp Breaker
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
7.4
CFM Rated @
100 PSI
CFM @ 40 PSI
8.3
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
24 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
148 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
36.4 Inches
Product Width
16.7 Inches
Product Height
22.6 Inches
Power Type
Electric
UPC
791326110350
