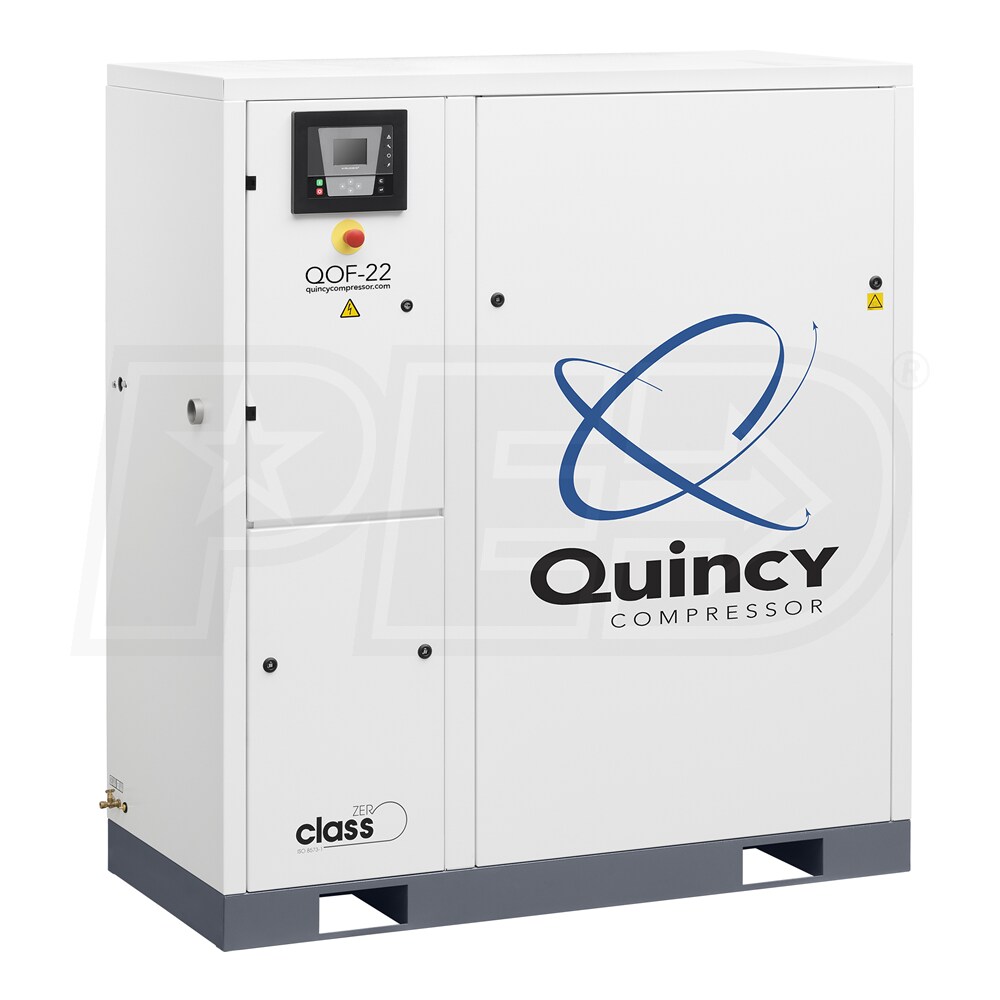

Quincy QOF 22-HP Oil-Free Tankless Scroll Compressor (230V 3-Phase 145 PSI)
Model: 8153605038
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
49.8
CFM Rated @ 145 PSI
Grade
Commercial
CFM
49.8 CFM Rated @ 145 PSI
Features
Features
- Class Zero Oil-Free Scroll Compressor (Not For Medical Use)
- Produces 100% oil-free air certified to ISO 8573-1 standard
- Ideal for pharmaceutical, food, lab, textile, etc. production
- Efficient 2-Spiral Orbital Motion
- Compresses air without touching; needs no lubrication
- High Efficiency Premium Motor
- IE3/NEMA motor is robust & easy to service
- Cool Canopy Enclosure
- Vertical design increases ventilation, lowers outlet temperatures
- Allows better performance & easy maintenance access
- Intelligent Graphic Color Controller
- Dramatically increases efficiency & reliability
- Regulates system pressure within a pre-defined & narrow band
- Includes digital hour meter to simplify maintenance intervals
- Three 7.5-HP Scroll Modules
- Variable Air Delivery tailors module operation to demand
- Delivers up to 49.8 CFM at 145 CFM at only 64 dBA
- Oil-Free Reduces The Cost Of Ownership
- No oil filter refills to replace or oil filter maintenance costs
- No extra energy costs from pressure drop across oil filters
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
64
Engine
HP
22
Pump
CFM
49.8
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Overview
Weight
1263 Pounds
Product Length
64 Inches
Product Width
30 Inches
Product Height
73 Inches
Grade

Style

CFM
49.8
CFM Rated @ 145 PSI
Grade
Commercial
CFM
49.8 CFM Rated @ 145 PSI
Features
Features
- Class Zero Oil-Free Scroll Compressor (Not For Medical Use)
- Produces 100% oil-free air certified to ISO 8573-1 standard
- Ideal for pharmaceutical, food, lab, textile, etc. production
- Efficient 2-Spiral Orbital Motion
- Compresses air without touching; needs no lubrication
- High Efficiency Premium Motor
- IE3/NEMA motor is robust & easy to service
- Cool Canopy Enclosure
- Vertical design increases ventilation, lowers outlet temperatures
- Allows better performance & easy maintenance access
- Intelligent Graphic Color Controller
- Dramatically increases efficiency & reliability
- Regulates system pressure within a pre-defined & narrow band
- Includes digital hour meter to simplify maintenance intervals
- Three 7.5-HP Scroll Modules
- Variable Air Delivery tailors module operation to demand
- Delivers up to 49.8 CFM at 145 CFM at only 64 dBA
- Oil-Free Reduces The Cost Of Ownership
- No oil filter refills to replace or oil filter maintenance costs
- No extra energy costs from pressure drop across oil filters
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
64
Engine
HP
22
Pump
CFM
49.8
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Overview
Weight
1263 Pounds
Product Length
64 Inches
Product Width
30 Inches
Product Height
73 Inches
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
64
Engine
HP
22
Pump
CFM
49.8
CFM Rated @
145 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
Pump Drive
Belt Drive
Oil Type
Oil Free
Tank
Tank Included
No
Tank Outlet
1/2 Inch
Overview
Weight
1263 Pounds
Product Length
64 Inches
Product Width
30 Inches
Product Height
73 Inches
