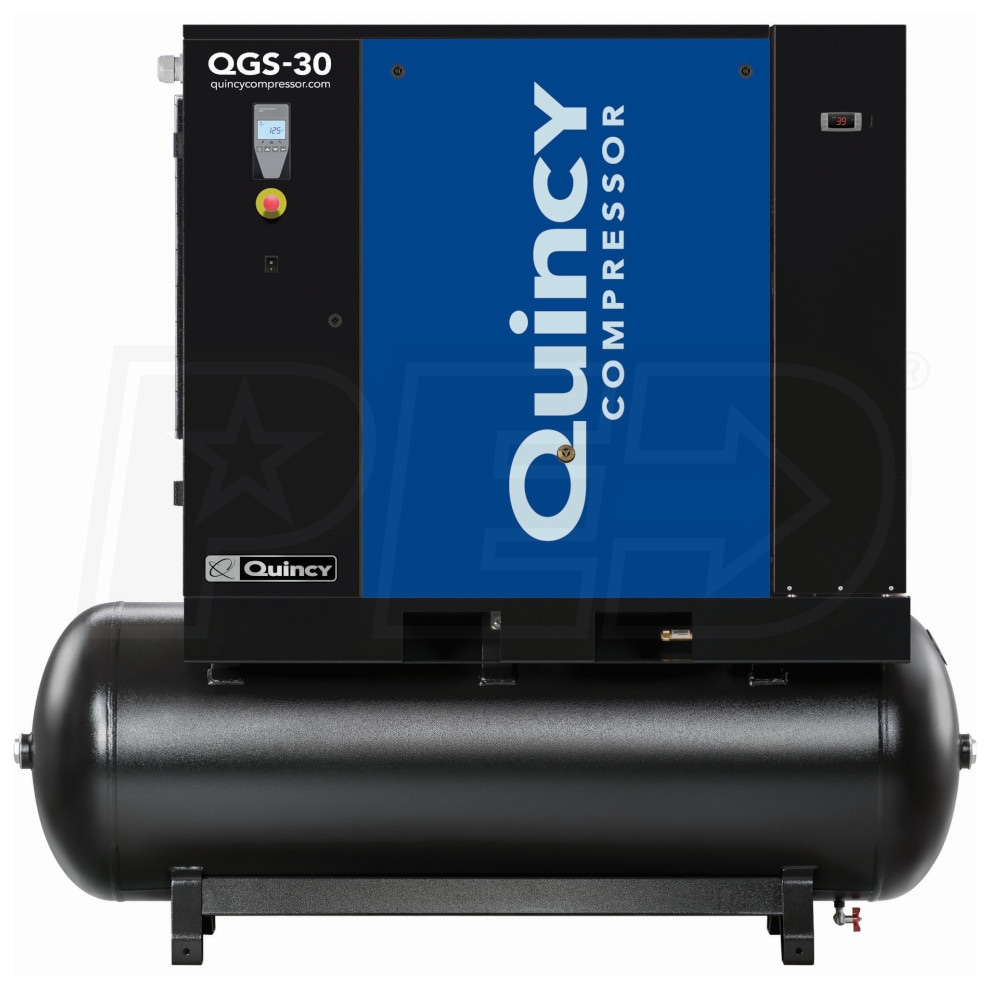

Quincy QGS 30-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)

Model:

4152026545

Write a Review
$18,499.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days

Free Shipping$18,499.99Buy Now
Free Freight$18,499.99Visit Site
Quincy QGS 30-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Quincy QGS 30-HP 132-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model: 4152026545
$18,499.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Rotary Screw 3-Phase

CFM

113.8

Tank Size

132



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required
  • Quincy QGS Highly Efficient & Advanced Rotary Screw Compressor
  • 100% continuous duty cycle with oil-injected twin screw pump
  • Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component
  • Infologic2 Basic Microprocessor Controller
  • Network up to six QGS 20 to 30 HP units
  • Completely programmable auto-restart and remote start/stop
  • Convenient Display Panel
  • Includes auto run, general alarm and power-on LED's
  • Pressure display, temperature and dewpoint display
  • Motor start limit; max & min temperature default settings
  • Integrated Refrigerant Air Dryer
  • Reduces corrosion and provides clean, dry air for your system
  • Quiet Operation
  • Full sound enclosure for extra low noise levels
  • Rotary screw technology provides a quiet solution and greatly reduces vibration
  • TEFC Electric Motor (IP 55 Wash Down)
  • Protects the motor from dirt, moisture and weather
  • Wye-Delta reduced voltage start for industrial applications
  • Increased Maintenance Simplicity
  • Fast and easy out of box installation
  • Hinged doors and detachable panels for quick access
  • Constant view fluid monitoring and spin-on fluid filter simplifies maintenance
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start-Up
  • Covers airend, motor, separator reservoir and cooler/heat exchanger
  • Quincy Part #: 4152026545 - Quincy Model #: QGS 30 TMD-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152026545
specs product image PID-115514
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
70
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
30
Engine Low Oil Shut-off
Yes
Pump
CFM
113.8
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
132 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1365 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
74 Inches
Product Width
30.7 Inches
Product Height
72.2 Inches
Power Type
Electric
