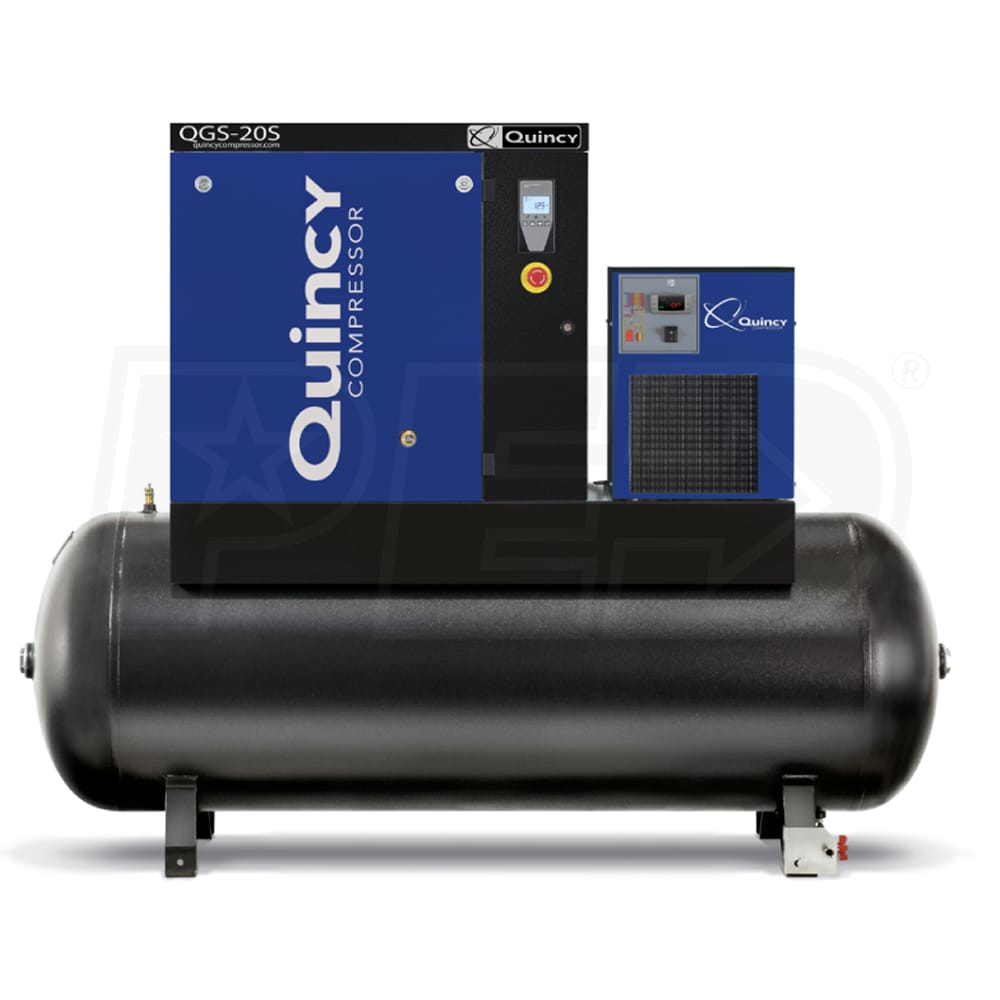

Quincy QGS 20-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)

Quincy QGS 20-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: QGS 20 TMD-3
$15,333.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Shipping$15,333.99Buy Now
Free Freight$15,333.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
60.8
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
60.8 CFM Rated @ 125 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20–30 HP units
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display (36°F min temp)
  • Motor start limit; max & min temperature default settings
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Completely Programmable Auto Restart & Remote Start/Stop
  • Wye-Delta reduced voltage start for industrial applications
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7; 60.8 CFM at 125 PSI
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects components
  • TEFC Electric Motor (IP 55 Wash Down)
  • 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by a licensed electrician
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy maintenance products
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
60.8
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1021 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
73 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011718
Additional Model Numbers
4152016773, QGS 20 TMD-3
Grade
Commercial
Style
Rotary Screw 3-Phase
CFM
60.8
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
60.8 CFM Rated @ 125 PSI
Tank Size
120 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Turn-Key Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • InfoLogic Microprocessor Control Functions
  • Check compressor performance at a glance
  • Network up to six QGS 20–30 HP units
  • Includes auto run, general alarm & power-on LED's
  • Pressure display, temperature & dewpoint display (36°F min temp)
  • Motor start limit; max & min temperature default settings
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Completely Programmable Auto Restart & Remote Start/Stop
  • Wye-Delta reduced voltage start for industrial applications
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7; 60.8 CFM at 125 PSI
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects components
  • TEFC Electric Motor (IP 55 Wash Down)
  • 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by a licensed electrician
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy maintenance products
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
60.8
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1021 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
73 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011718
Additional Model Numbers
4152016773, QGS 20 TMD-3
Product Specs
+
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Engine Low Oil Shut-off
Yes
Pump
CFM
60.8
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
1021 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
73 Inches
Product Width
31 Inches
Product Height
48 Inches
Power Type
Electric
UPC
791326011718
Additional Model Numbers
4152016773, QGS 20 TMD-3
