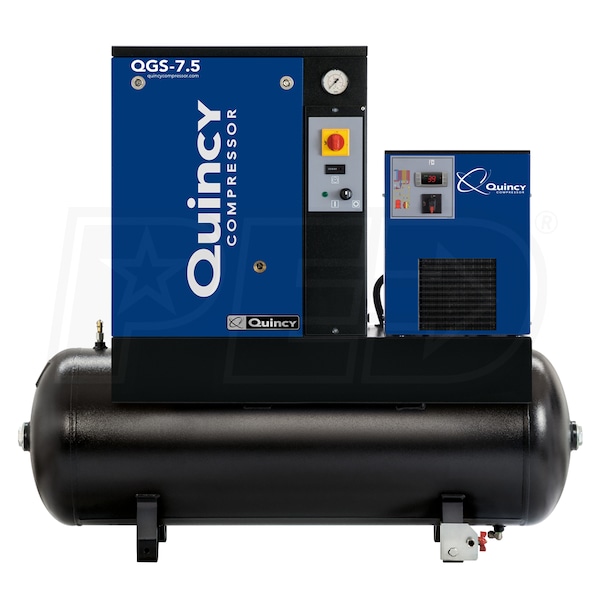

Quincy QGS 7.5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (230V 1-Phase)
Model: 4152005431
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$7,178.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability January 20, 2021
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$7,178.99Buy Now
Free Freight$7,178.99Visit Site
Share
  • Product Description
  • Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Rotary Screw 1-Phase
CFM
21.2
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
21.2 CFM Rated @ 150 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 21.2 CFM at 150 PSI
  • 64 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005431 - Quincy Model #: QGS 7.5 HPD 1
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Grade
Commercial
Style
Rotary Screw 1-Phase
CFM
21.2
CFM Rated @ 150 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
21.2 CFM Rated @ 150 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Integrated Refrigerated Air Dryer
  • Condenses the air to remove airborne moisture, dirt, and oil
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 21.2 CFM at 150 PSI
  • 64 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005431 - Quincy Model #: QGS 7.5 HPD 1
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
21.2
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
548 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
22 Inches
Product Height
50 Inches
Power Type
Electric
UPC
791326011565
Additional Model Numbers
4152002727, 4152005431
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(2)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What sized electrical breaker is required to operate this compressor / dryer?
John
from Kentucky
February 10, 2020
Answer
 According to Quincy's technical data brochure, the amp draw is 40 and the recommended breaker size is 80; this will depend on local code. Also, the dryer is required to have a separate electrical connection (115V).
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the oil capacity for this compressor?
Christy C.
from North Carolina
November 06, 2019
Answer
It is 2.5 liters.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
