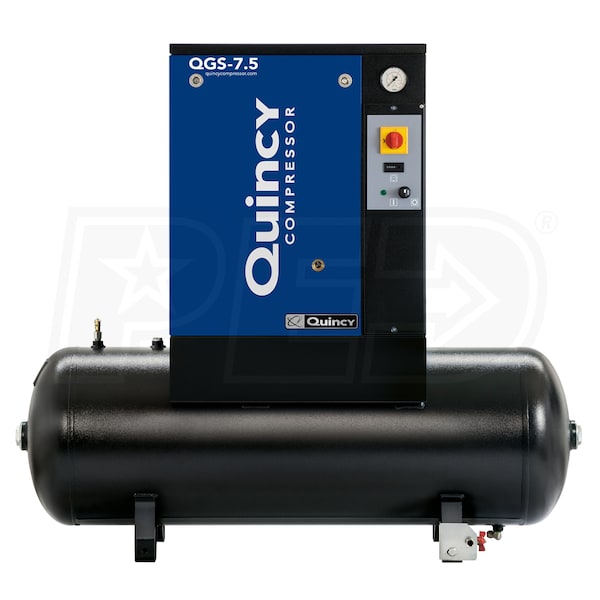

Quincy QGS 7.5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)

Model:

4152005429

Write a Review
$5,999.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
This Item Is Built To Order

Free Shipping$5,999.99Buy Now
Free Freight$5,999.99Visit Site
Quincy QGS 7.5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)
Quincy QGS 7.5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)
Model: 4152005429
$5,999.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Rotary Screw 1-Phase

CFM

20.4

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Compact, Modern Turn-Key Design
  • Small footprint allows for installation flexibility
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 20.4 CFM at 150 PSI
  • 64 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005429 - Quincy Model #: QGS 7.5 HP-1
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152005429
specs product image PID-10832
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA
64
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Engine Low Oil Shut-off
Yes
Pump
CFM
20.4
CFM Rated @
150 PSI
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Weight
465 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
23 Inches
Product Height
51 Inches
Power Type
Electric
UPC
791326011534
Additional Model Numbers

4152002724, 4152005429
