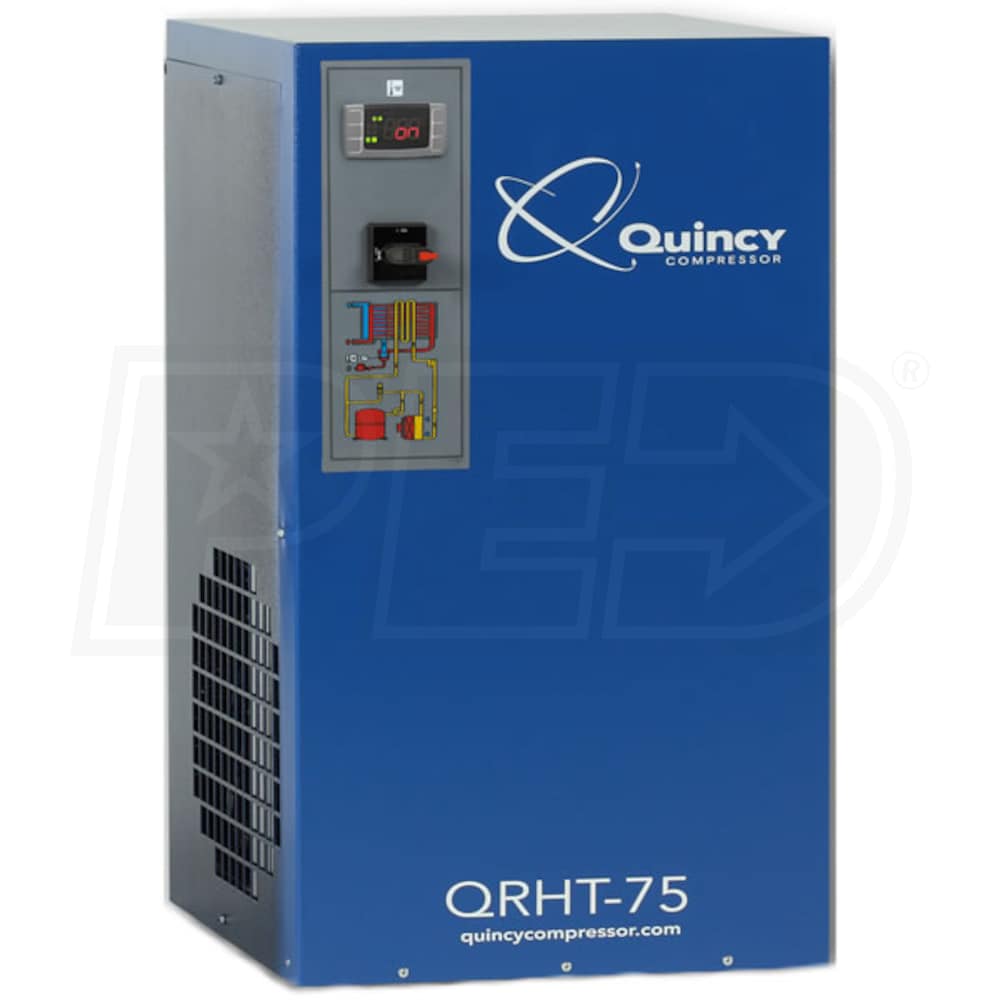

Quincy QRHT 75 3/4" High Temperature Non-Cycling Refrigerated Air Dryer (75 CFM) (115V 1-Phase)
Model: 4102001907
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style

Air Dryer CFM
75
Style
Refrigerated
Air Dryer CFM
75
Features
Features
- High Temperature Refrigerated Non-Cycling Dryer
- Handles incoming air up to 108° F from compressors that don't have aftercoolers
- 3 In 1 Design
- Eliminates water, oil and dirt from compressed air
- Clean, Dry, Filtered Compressed Air
- Aftercooler, refrigerated dryer, moisture separator,
- Zero Loss drain, & coalescing filter work in harmony
- Reduces Operational Down Time
- Increases profitability & productivity
- Fewer Finished Product Defects
- Prevents "fisheye" paint splotches
- Eliminates air line purging; coalescing filter supplied
- Environmentally Safe Refrigerant (R404A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential
- Easy To Incorporate
- Uses 115V-1 phase power; handles 75 CFM at 100 PSI
- 3/4" NPT input; 232 maximum PSI; consumes 169KW
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
232
Max Inlet Temp. Rating
180
Max Ambient Temp. Rating
100
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
165 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
31 Inches
Power Type
Electric
UPC
791326012197
Style

Air Dryer CFM
75
Style
Refrigerated
Air Dryer CFM
75
Features
Features
- High Temperature Refrigerated Non-Cycling Dryer
- Handles incoming air up to 108° F from compressors that don't have aftercoolers
- 3 In 1 Design
- Eliminates water, oil and dirt from compressed air
- Clean, Dry, Filtered Compressed Air
- Aftercooler, refrigerated dryer, moisture separator,
- Zero Loss drain, & coalescing filter work in harmony
- Reduces Operational Down Time
- Increases profitability & productivity
- Fewer Finished Product Defects
- Prevents "fisheye" paint splotches
- Eliminates air line purging; coalescing filter supplied
- Environmentally Safe Refrigerant (R404A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential
- Easy To Incorporate
- Uses 115V-1 phase power; handles 75 CFM at 100 PSI
- 3/4" NPT input; 232 maximum PSI; consumes 169KW
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
232
Max Inlet Temp. Rating
180
Max Ambient Temp. Rating
100
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
165 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
31 Inches
Power Type
Electric
UPC
791326012197
Product Specs
+−
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
232
Max Inlet Temp. Rating
180
Max Ambient Temp. Rating
100
Non-Cycling
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
Yes
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
165 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
23 Inches
Product Width
19 Inches
Product Height
31 Inches
Power Type
Electric
UPC
791326012197
