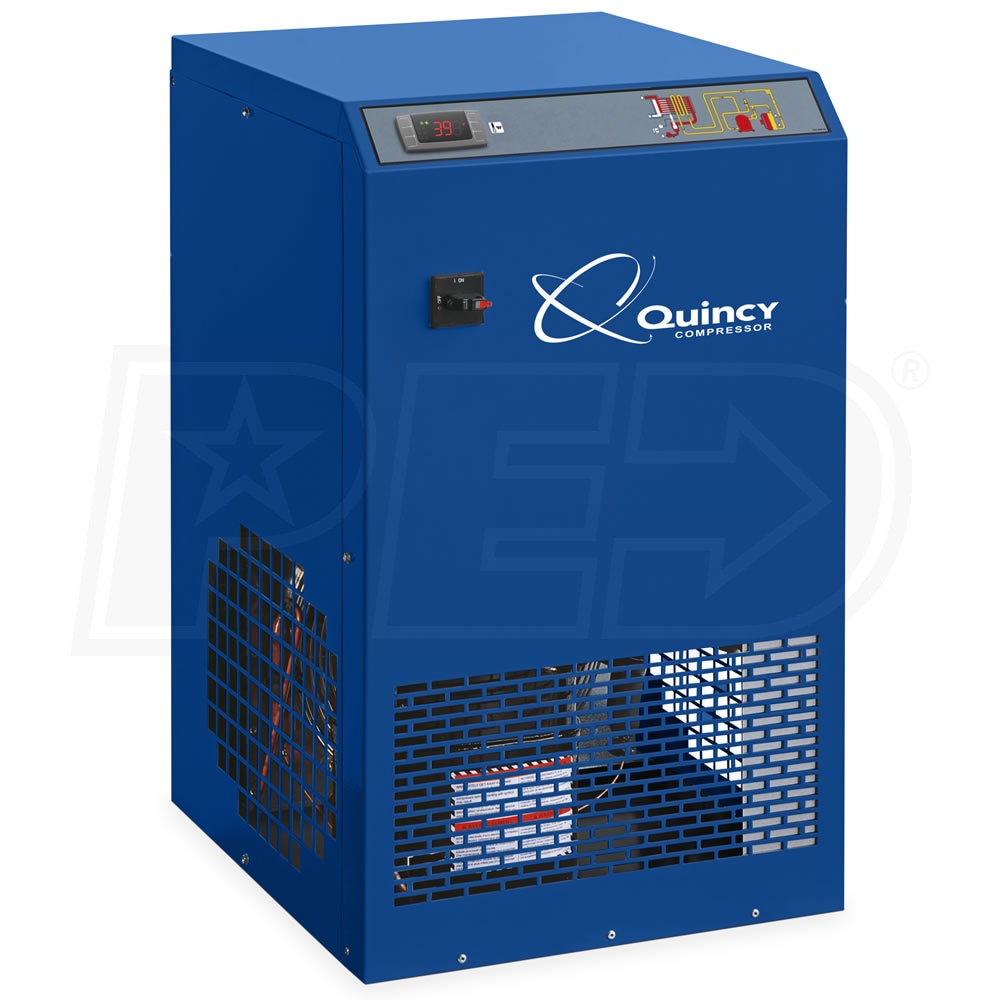

Quincy QPNC 75 1" Non-Cycling Refrigerated Air Dryer (75 CFM) (115V 1-Phase)
Model: 4102002440
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$2,150.99
Free Shipping
Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $75.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$75.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Free Shipping$2,150.99Buy Now
Free Freight$2,150.99Visit Site
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
Product Description
+
Style
Refrigerated
Air Dryer CFM
75
Style
Refrigerated
Air Dryer CFM
75
Features
Features
  • Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air
  • 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained
  • Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain
  • Environmentally Safe Refrigerant (R404A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow
  • Versatile
  • Handles 75 CFM at 100 PSI; 230 PSI maximum
  • Uses 115V-1 phase power; 1" NPT-F connector in & out
  • Quincy Part #: 4102002440 - Quincy Model #: QPNC 75
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
230
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
110
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
108 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
21 Inches
Product Width
18 Inches
Product Height
21 Inches
Power Type
Electric
UPC
791326011961
Additional Model Numbers
4102000673, 4102002440
Style
Refrigerated
Air Dryer CFM
75
Style
Refrigerated
Air Dryer CFM
75
Features
Features
  • Refrigerated Non-Cycling Dryer
  • Best suited for small systems with fairly constant loads
  • Purifies compressed air by chilling to condense moisture
  • Condensate is drained, carrying oil & dirt away from the air
  • 2-Stage Heat Exchanger
  • Maintains consistent dew points
  • Freeze-ups prevented & optimum performance maintained
  • Automatic Zero Loss Drain
  • Prevents build up of oil, dirt & moisture in compressed air
  • The most energy efficient drain
  • Environmentally Safe Refrigerant (R404A)
  • No CFCs or HCFCs; zero ozone depletion potential (ODP)
  • Provides higher performance & efficiency potential
  • Simple Control Panel
  • Run & alarm lights, analyzer gauge, start/stop switch w/ lock out
  • Also shows a diagram of the system flow
  • Versatile
  • Handles 75 CFM at 100 PSI; 230 PSI maximum
  • Uses 115V-1 phase power; 1" NPT-F connector in & out
  • Quincy Part #: 4102002440 - Quincy Model #: QPNC 75
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
230
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
110
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
108 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
21 Inches
Product Width
18 Inches
Product Height
21 Inches
Power Type
Electric
UPC
791326011961
Additional Model Numbers
4102000673, 4102002440
Product Specs
+
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Air Dryer
Air Dryer CFM
75
Max PSI
230
Max Inlet Temp. Rating
120
Max Ambient Temp. Rating
110
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
No
High Temp
No
Overview
Weight
108 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
21 Inches
Product Width
18 Inches
Product Height
21 Inches
Power Type
Electric
UPC
791326011961
Additional Model Numbers
4102000673, 4102002440
