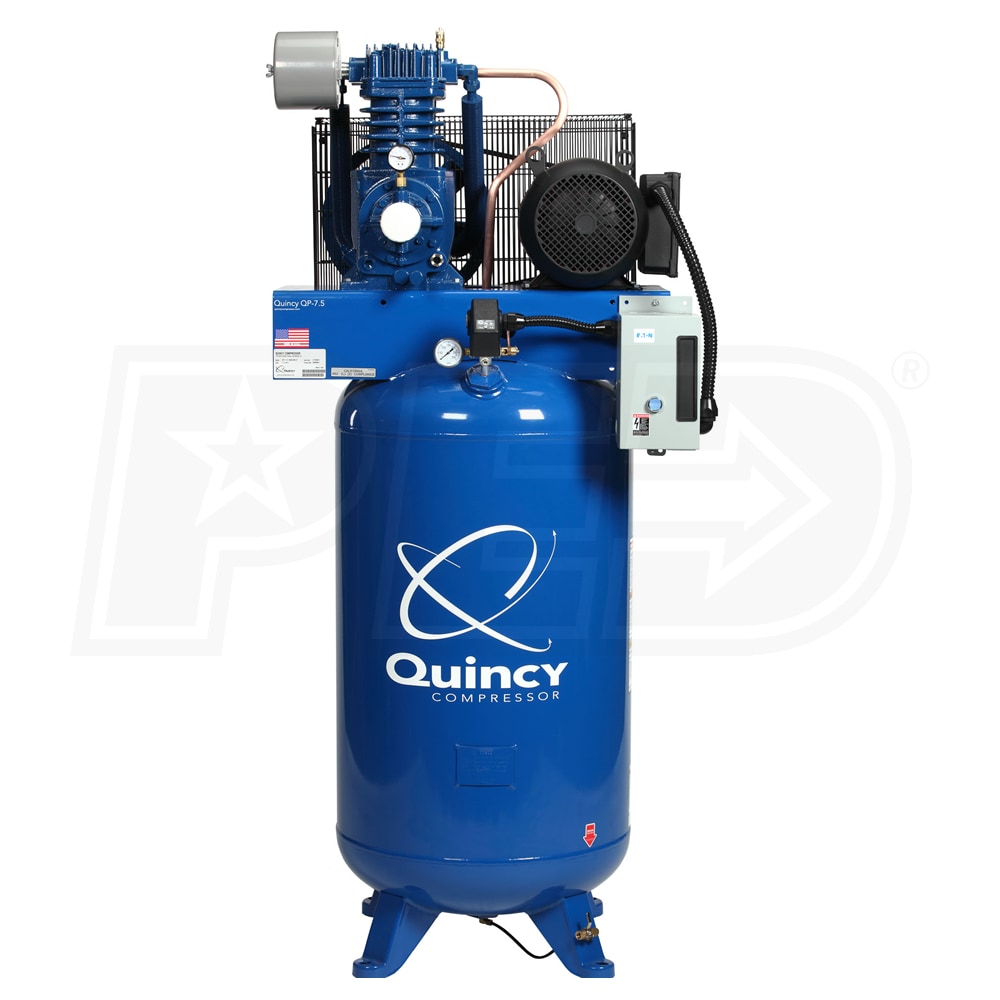

Quincy QP Pro 7.5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 1-Phase)
Model:
371CS80VCA23
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
22.6
Tank Size
80

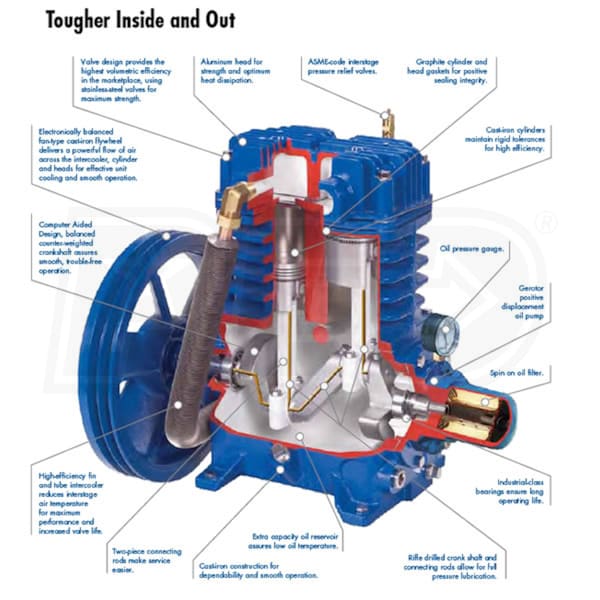

- QP Pro Fully Pressure Lubricated 2-Stage Compressor
- Allows smooth, continuous operation
- Pressurized oil means less wear on critical components
- Gerotor Positive Displacement Oil Pump
- Provides pressure lube to crankshaft, bearings, & rods
- Up to 15% longer life than splash-lubricated units
- Spin-On Oil Filter
- Lengthens compressor life & improves reliability
- Stainless Steel Reed Valves With Valve Bumpers
- Maximum strength & volumetric efficiency
- Graphite Cylinder & Head Gaskets
- Provide positive sealing integrity
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Delivers powerful cooling to intercooler, cylinder, & heads
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- Maintains rigid tolerances for high efficiency
- Reduces interstage temperature for max performance & durability
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
- Must Include purchase of EWK-6 Maintenance Kit at time of purchase
- Unit must be registered at www.quincycompressor.com
- Download the Warranty page under the Manual tab for details
- Extended warranty includes on-site and labor service
- Quincy Part #: 2020039817 - Quincy Model #: 371CS80VCA23
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
371CS80VCA23
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
Additional Model Numbers
371CS80VCA, 371CS80VCA23
