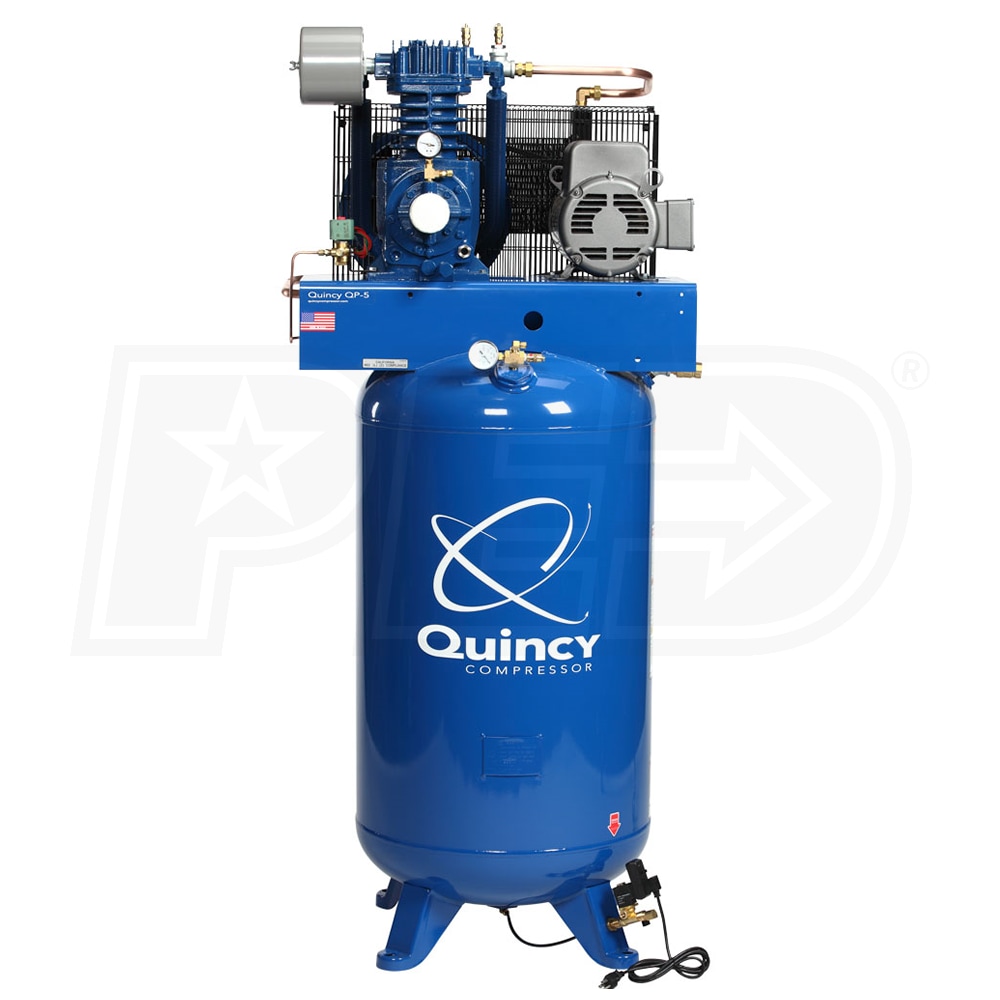

Quincy QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)

Model:

353D80VCA20M

Write a Review
$4,499.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days

Free Shipping$4,499.99Buy Now
Free Freight$4,499.99Visit Site
Quincy QP MAX  5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)
Quincy QP MAX 5-HP 80-Gallon Pressure Lubricated Two-Stage Air Compressor (208V 3-Phase)
Model: 353D80VCA20M
$4,499.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (208 Volts)

CFM

17.2

Tank Size

80

  • Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
  • Pump life up to 60,000+ hours
  • 942 RPM industrial motor will continuously run your business
  • Electronic automatic tank drain keeps condensation to a minimum
  • Mounted air-cooled aftercooler extends pump life
  • Magnetic Starter provides thermal overload protection for the motor
  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Graphite cylinder & head gaskets for positive sealing integrity
  • Continuous 100% duty cycle operation
  • Spin-On Oil filter
  • Lengthens compressor life & improves reliability
  • Low oil pressure switch shutdown for protection
  • Gerotor Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Pressurized oil results in less wear on components
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039833 - Quincy Model #: 353D80VCA20M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

353D80VCA20M
specs product image PID-104176
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
680 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
