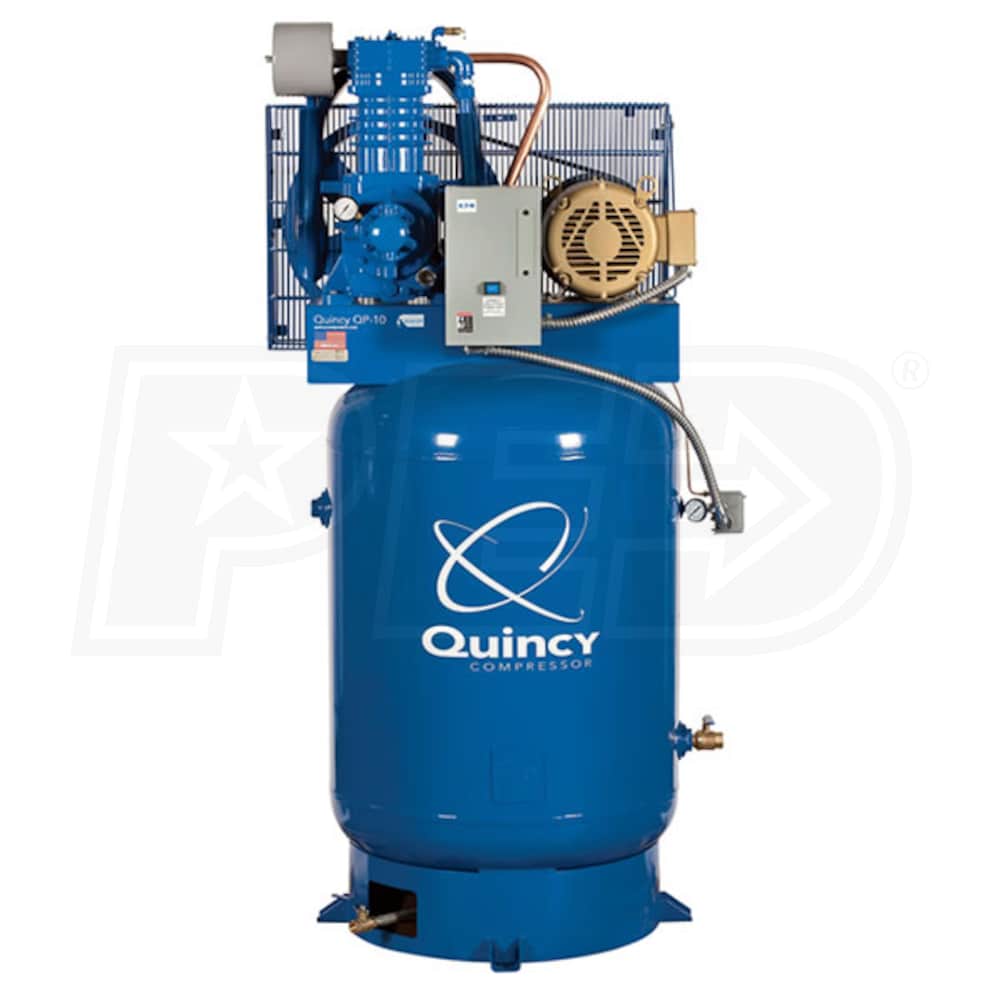

Quincy 10-HP 120-Gallon Pressure Lubricated Two-Stage QP Pro Air Compressor (230V 3-Phase)

Quincy 10-HP 120-Gallon Pressure Lubricated Two-Stage QP Pro Air Compressor (230V 3-Phase)
Model: 3103DS12VCA23
$3,999.99
Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$35.00
Free ShippingNo Sales Tax* (Except IL)$3,999.99Buy Now
Free FreightNo Sales Tax* (Except IL)$3,999.99Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, California, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons

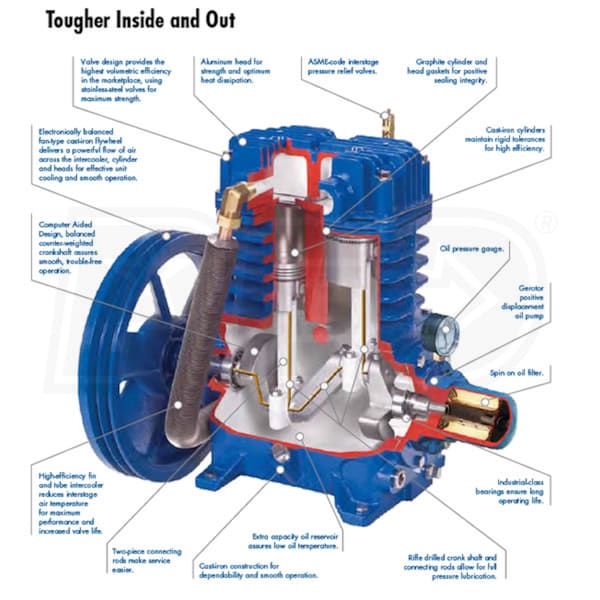

Features
Features
  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 22 business days to ship from Quincy
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Certification
ASME
Weight
1078 Pounds
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Commercial
Style
Two Stage 3-Phase (230 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Pressure Lubricated 2-Stage Compressor
  • Allows smooth, continuous operation
  • Pressurized oil means less wear on critical components
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Up to 15% longer life than splash-lubricated units
  • Spin-On Oil Filter
  • Lengthens compressor life & improves reliability
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Graphite Cylinder & Head Gaskets
  • Provide positive sealing integrity
  • Electronically Balanced Fan-Type Cast Iron Flywheel
  • Delivers powerful cooling to intercooler, cylinder, & heads
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab
  • Built To Order: takes up to 22 business days to ship from Quincy
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Certification
ASME
Weight
1078 Pounds
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
60 Amp Breaker
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Certification
ASME
Weight
1078 Pounds
Product Length
40 Inches
Product Width
30 Inches
Product Height
75 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
