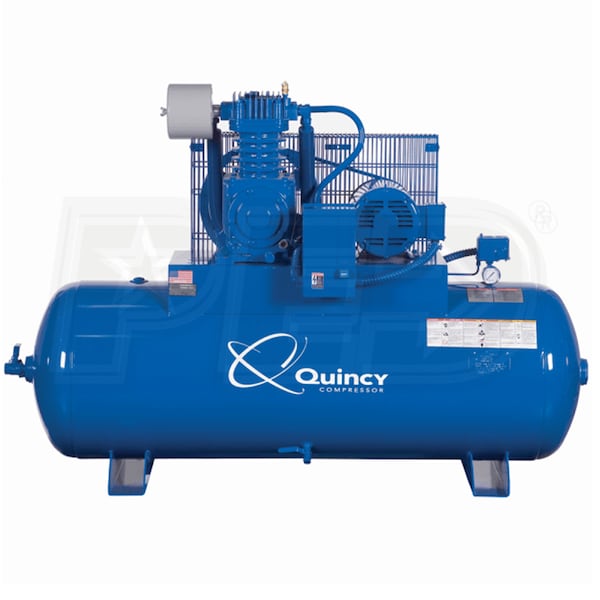

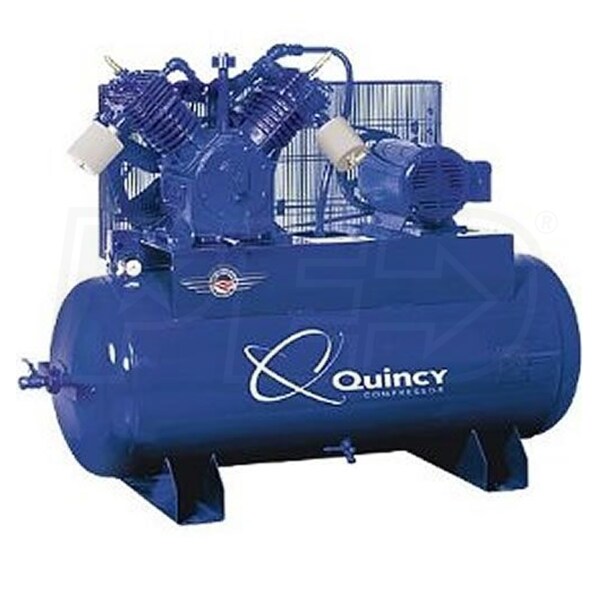

Quincy QP Pro MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)

Quincy QP Pro MAX 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (460V 3-Phase)
Our Price
Compare Prices
Shipping Info
Model: 2020020902
$5,499.99

Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$35.00
Free Shipping$5,499.99Buy Now
Free Freight$5,499.99Visit Site
Factory-Direct
Ships in 2-3 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features

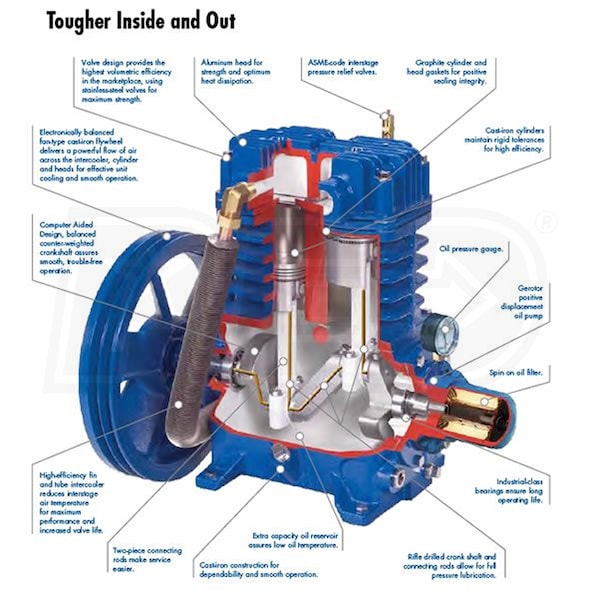

  • Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
  • Pump life up to 60,000+ hours
  • 1750 RPM industrial motor will continuously run your business
  • Electronic automatic tank drain keeps condensation to a minimum
  • Mounted air-cooled aftercooler extends pump life
  • Magnetic Starter provides thermal overload protection for the motor
  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Graphite cylinder & head gaskets for positive sealing integrity
  • Continuous 100% duty cycle operation
  • Spin-On Oil filter
  • Lengthens compressor life & improves reliability
  • Low oil pressure switch shutdown for protection
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Pressurized oil results in less wear on components
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab (EWK-7 or EWK-7PLUS)
  • Built To Order: takes up to 10 business days to ship from Quincy
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
865 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326011176
Additional Model Numbers
3103D12HCA46M, 2020020902
Grade
Commercial
Style
Two Stage 3-Phase (460 Volts)
CFM
35
CFM Rated @ 175 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
35 CFM Rated @ 175 PSI
Tank Size
120 Gallons
Features
Features
  • Fully Pressure Lubricated QP Pro Max Package 2-Stage Compressor
  • Pump life up to 60,000+ hours
  • 1750 RPM industrial motor will continuously run your business
  • Electronic automatic tank drain keeps condensation to a minimum
  • Mounted air-cooled aftercooler extends pump life
  • Magnetic Starter provides thermal overload protection for the motor
  • Heavy-Duty Cast Iron 2-Stage Pump With Aluminum Heads
  • Graphite cylinder & head gaskets for positive sealing integrity
  • Continuous 100% duty cycle operation
  • Spin-On Oil filter
  • Lengthens compressor life & improves reliability
  • Low oil pressure switch shutdown for protection
  • Gerator Positive Displacement Oil Pump
  • Provides pressure lube to crankshaft, bearings, & rods
  • Pressurized oil results in less wear on components
  • Stainless Steel Reed Valves With Valve Bumpers
  • Maximum strength & volumetric efficiency
  • Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
  • Maintains rigid tolerances for high efficiency
  • Reduces interstage temperature for max performance & durability
  • One Year Factory Warranty
  • Extends with Quincy registration & kit listed under Specs tab (EWK-7 or EWK-7PLUS)
  • Built To Order: takes up to 10 business days to ship from Quincy
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
865 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326011176
Additional Model Numbers
3103D12HCA46M, 2020020902
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
35
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
865 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
78 Inches
Product Width
28 Inches
Product Height
55 Inches
Power Type
Electric
UPC
791326011176
Additional Model Numbers
3103D12HCA46M, 2020020902
