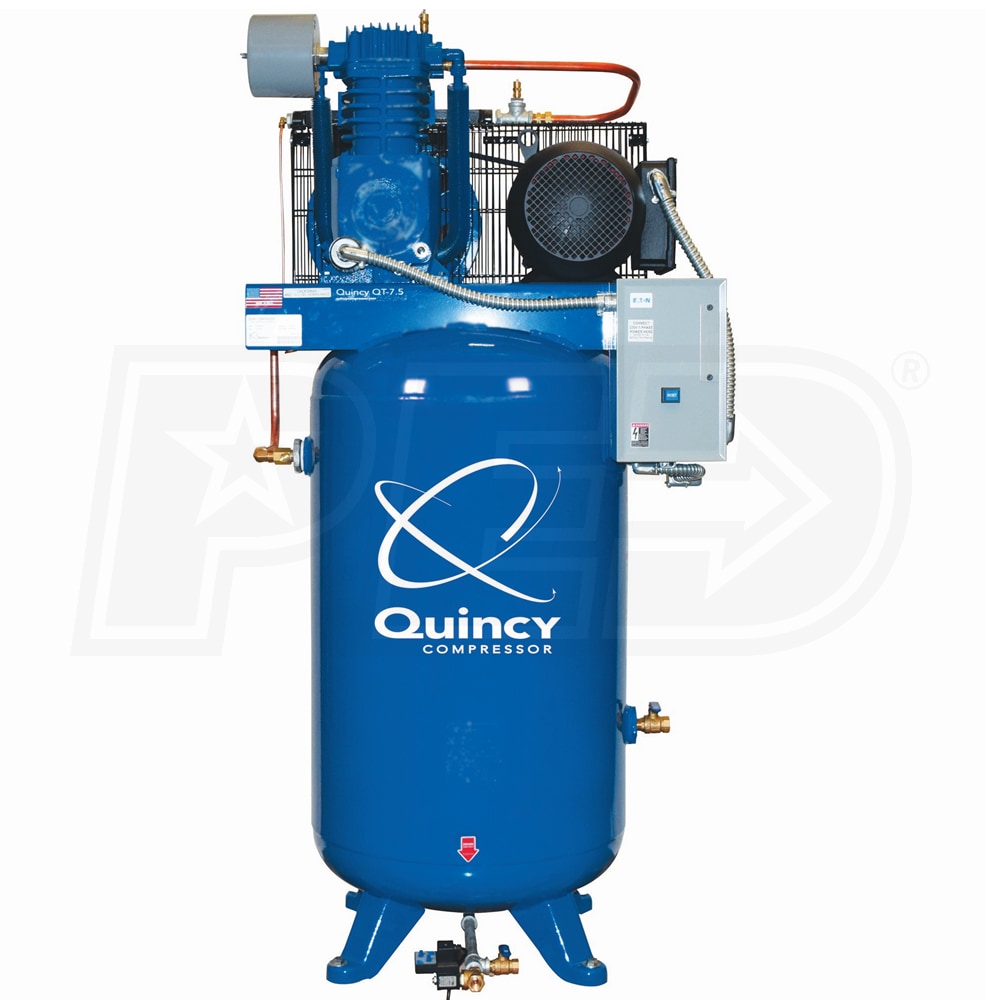

Quincy QT Pro 7.5HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

Model:

273DS80VCB46

Write a Review
$3,199.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks

Free Shipping$3,199.99Buy Now
Free Freight$3,199.99Visit Site
Quincy QT Pro 7.5HP 80-Gallon Two-Stage Air Compressor  (460V 3-Phase)
Quincy QT Pro 7.5HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: 273DS80VCB46
$3,199.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (460 Volts)

CFM

22.6

Tank Size

80

  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039810 - Quincy Model #: 273DS80VCB46
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

273DS80VCB46
specs product image PID-8482
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
11
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
