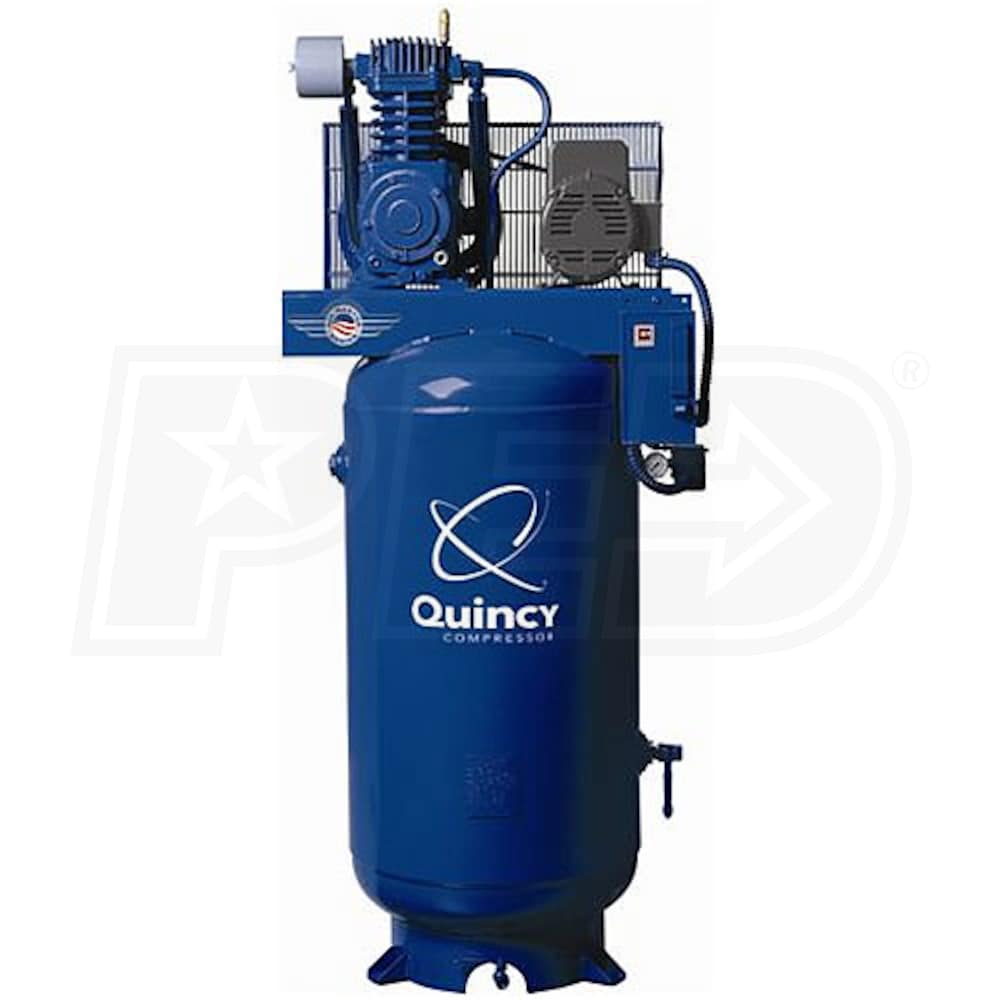

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: 271CS80VCB23
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews (18)
Write A Review
$2,499.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$35.00
Free Shipping$2,499.99Buy Now
Free Freight$2,499.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 18
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.6
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Updated 3-leg air receiver with manual drain
  • More stable & less prone to vibration than previous 4-leg version
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039807 - Quincy Model #: 271CS80VCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
90 PSI
CFM @ 40 PSI
175
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Weight
720 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Grade
Commercial
Style
Two Stage 1-Phase
CFM
22.6
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
22.6 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 80-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Updated 3-leg air receiver with manual drain
  • More stable & less prone to vibration than previous 4-leg version
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039807 - Quincy Model #: 271CS80VCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
90 PSI
CFM @ 40 PSI
175
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Weight
720 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM
22.6
CFM Rated @
90 PSI
CFM @ 40 PSI
175
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Tank Orientation
Vertical
Overview
Weight
720 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326010940
Additional Model Numbers
271CS80VCB, 271CS80VCB23
Reviews
(18)
+
Quincy 271CS80VCB23 Reviews & Ratings
87% of Reviewers Recommend This Product
Product Q&A
(4)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
Does this unit have an on/off switch?
James S.
from New Mexico
November 23, 2019
Answer
Yes, it has an on/off switch on the pressure switch.
+
A 3410 RPM motor doesn't sound like a low RPM motor. Can I get a 1725 rpm motor?
Jim S.
from New Mexico
November 15, 2019
Answer
This has been updated. This unit has a 1750 RPM motor.
+
Does this compressor require a starter?
Rickey Tauzin
from Louisiana
November 27, 2015
Answer
This unit comes with a magnetic starter. I'm sorry that's not showing on the Specs page at the moment- I'll work with our IT guru to get that detail put back in.
+
the quincy 7.5 hp 80 gal calls for 80 amp bkr whEN the compressor is 40 amps THANKS
Henry Beale
from Massachusetts
October 16, 2015
Answer
Henry,

The reason for this is because the Amp Draw listed as 40 Amps is the "running" amps for this compressor. However, at start-up, the running amps increase significantly. This is called the "starting" amps. In this case, the starting amps increase to the point where the compressor requires an 80 AMP Breaker in order to handle the starting amps. We do not recommend using this compressor on a circuit with less than an 80 AMP Breaker.
