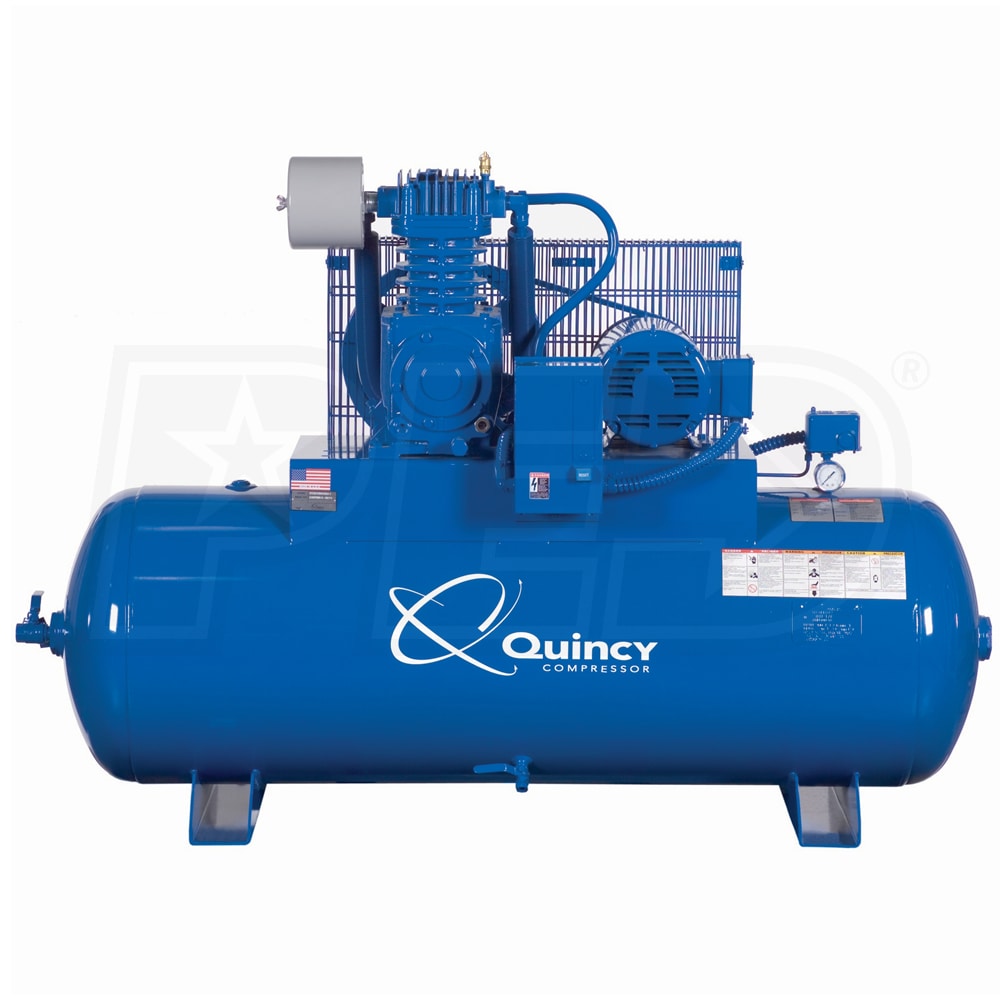

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

253DS80HCB23

Write a Review
$2,499.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$2,499.99Buy Now
Free Freight$2,499.99Visit Site
Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 253DS80HCB23
$2,499.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 3-Phase (230 Volts)

CFM

17.2

Tank Size

80

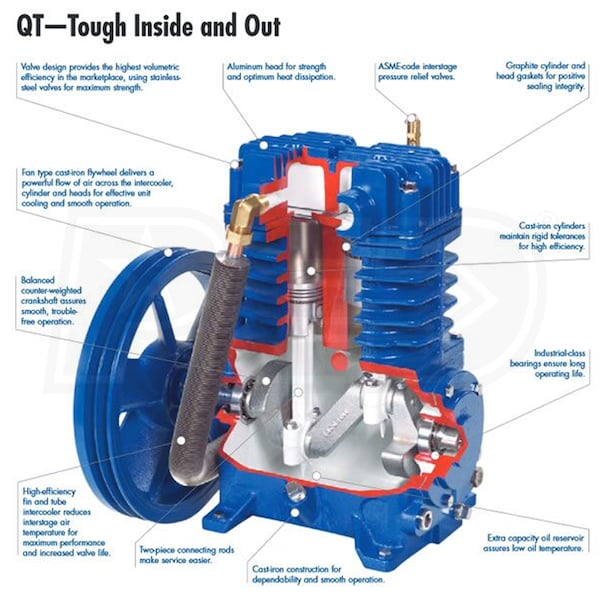

  • Heavy Duty QT-5 Industrial Pump
  • 50,000 hours or more pump life
  • Splash lubricated, cast-iron 2-cylinder pump for dependability
  • Extra capacity oil reserve
  • ODP Slow-Speed Motor
  • 942 RPM industrial motor to continuously run your business
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • 2-Piece Connection Rods
  • Fewer moving parts increase reliability
  • ASME Coded 80 Gallon Tank
  • Pressure relief valve, discharge & receiver tank for your safety
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020013309 Quincy Model #: 253DS80HCB23
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

253DS80HCB23
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
660 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
