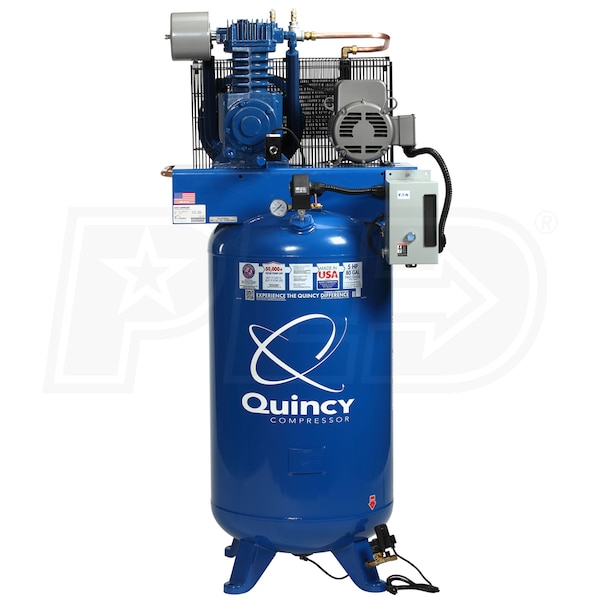

Quincy QT MAX 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

253D80VCB23M

Write a Review
$3,699.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days

Free Shipping$3,699.99Buy Now
Free Freight$3,699.99Visit Site
Quincy QT MAX  5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Quincy QT MAX 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: 253D80VCB23M
$3,699.99
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (230 Volts)

CFM

17.2

Tank Size

80

  • Heavy Duty Industrial Unit - Proudly Built in the US
  • 50,000 hour-or more- pump life; 5 year pump warranty
  • Splash lubricated, cast-iron pump for dependability
  • Industrial motor to continuously run your business
  • Extra capacity oil reserve & low oil protection
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • Magnetic Starter
  • Provides thermal overload protection for the motor
  • 2-Piece Connection Rods
  • Fewer moving parts increases reliability
  • ASME Certified Air Tank
  • Pressure relief valve, discharge and receiver tank for safety
  • Automatic Tank Drain
  • Less maintenance and prolongs tank life
  • Air-Cooled Aftercooler
  • Allows use with a refrigerated air dryer (sold separately)
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Download the Warranty page under the Manual tab for details
  • Quincy Part #: 2020039824 - Quincy Model #: 253D80VCB23M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

253D80VCB23M
specs product image PID-104201
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
15.2
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
680 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
