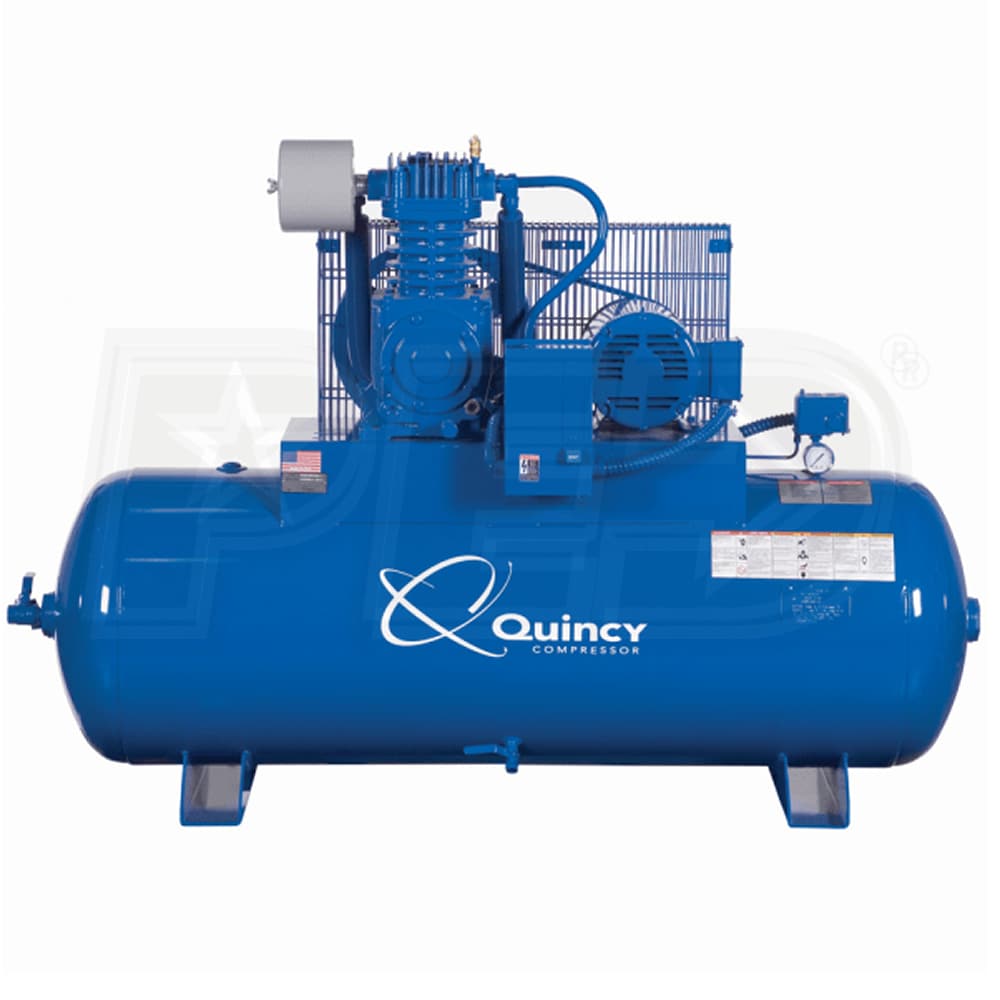

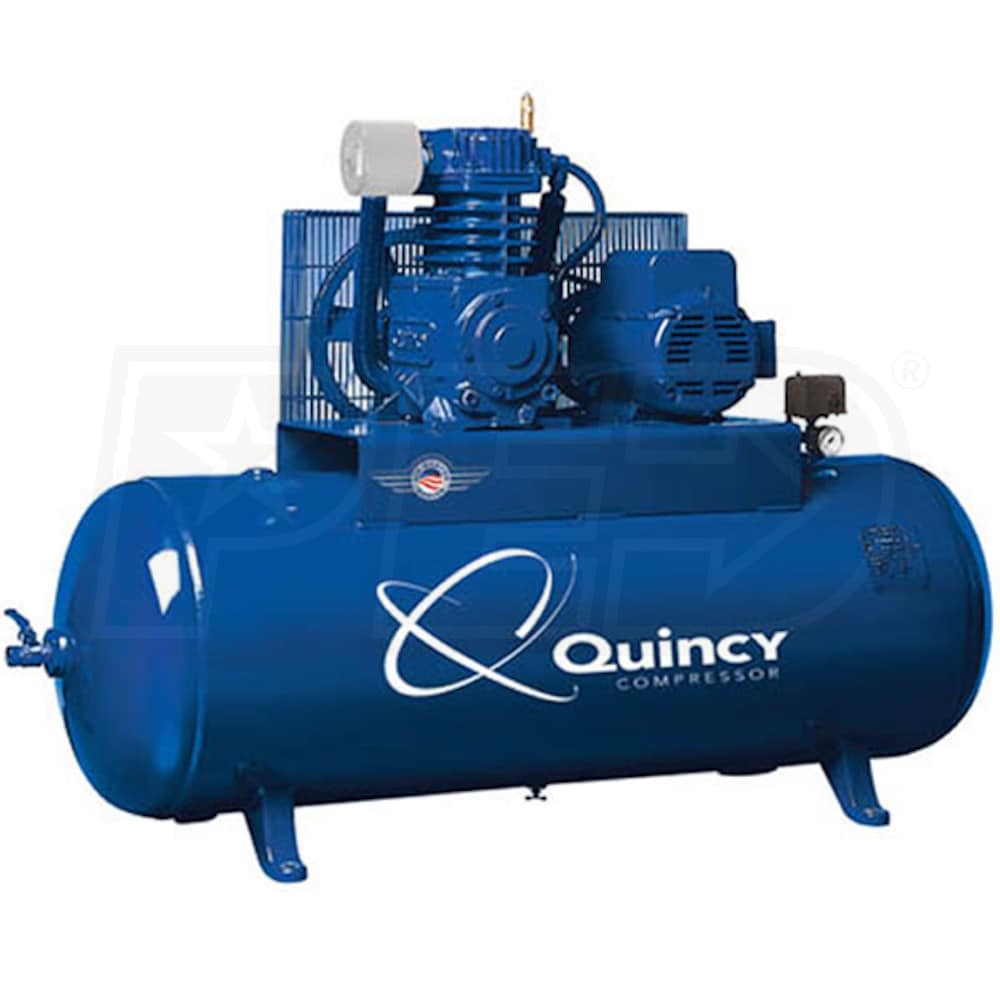

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: 251CS80HCB23
$2,449.99

Factory-Direct
This Item Is Built To Order
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Holiday Shipping Schedule
Holiday Schedule -
Add-Ons
+$75.00
Free Shipping$2,449.99Buy Now
Free Freight$2,449.99Visit Site
Factory-Direct
This Item Is Built To Order
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
17.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17.2 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty QT-5 Industrial Pump
  • 50,000 hours or more pump life
  • Splash lubricated, cast-iron 2-cylinder pump for dependability
  • Extra capacity oil reserve
  • ODP Slow-Speed Motor
  • 942 RPM industrial motor to continuously run your business
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • 2-Piece Connection Rods
  • Fewer moving parts increase reliability
  • ASME Coded 80 Gallon Tank
  • Pressure relief valve, discharge & receiver tank for your safety
  • Generous Factory Warranty
  • 1 year Factory Warranty is standard
  • Extended 3 Year "No Bull" Warranty Available From Quincy
  • Must include EWK-3 Maintenance Kit at time of purchase
  • Must register the unit at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Quincy Part #: 2020013312 Quincy Model #: 251CS80HCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
660 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
UPC
791326010841
Additional Model Numbers
251CP80HCB, 251CS80HCB23
Grade
Consumer
Style
Two Stage 1-Phase
CFM
17.2
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
17.2 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty QT-5 Industrial Pump
  • 50,000 hours or more pump life
  • Splash lubricated, cast-iron 2-cylinder pump for dependability
  • Extra capacity oil reserve
  • ODP Slow-Speed Motor
  • 942 RPM industrial motor to continuously run your business
  • High-Efficiency Finned Intercooler
  • Reduces air temperature for maximum performance
  • 2-Piece Connection Rods
  • Fewer moving parts increase reliability
  • ASME Coded 80 Gallon Tank
  • Pressure relief valve, discharge & receiver tank for your safety
  • Generous Factory Warranty
  • 1 year Factory Warranty is standard
  • Extended 3 Year "No Bull" Warranty Available From Quincy
  • Must include EWK-3 Maintenance Kit at time of purchase
  • Must register the unit at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Quincy Part #: 2020013312 Quincy Model #: 251CS80HCB23
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
660 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
UPC
791326010841
Additional Model Numbers
251CP80HCB, 251CS80HCB23
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Engine
HP
5
Pump
CFM
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Weight
660 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
UPC
791326010841
Additional Model Numbers
251CP80HCB, 251CS80HCB23
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Gabrielle, the Air Compressor Expert
icon-social-fb1
+
steve do you sell the 5hp motors by themself? two pistons/ and price.
Sharon Ruarks
from South Carolina
July 04, 2016
Answer
Unfortunately, we do not sell parts. Here's the link to find the nearest Quincy parts & service center:
http://www.quincycompressor.com/locator.html
