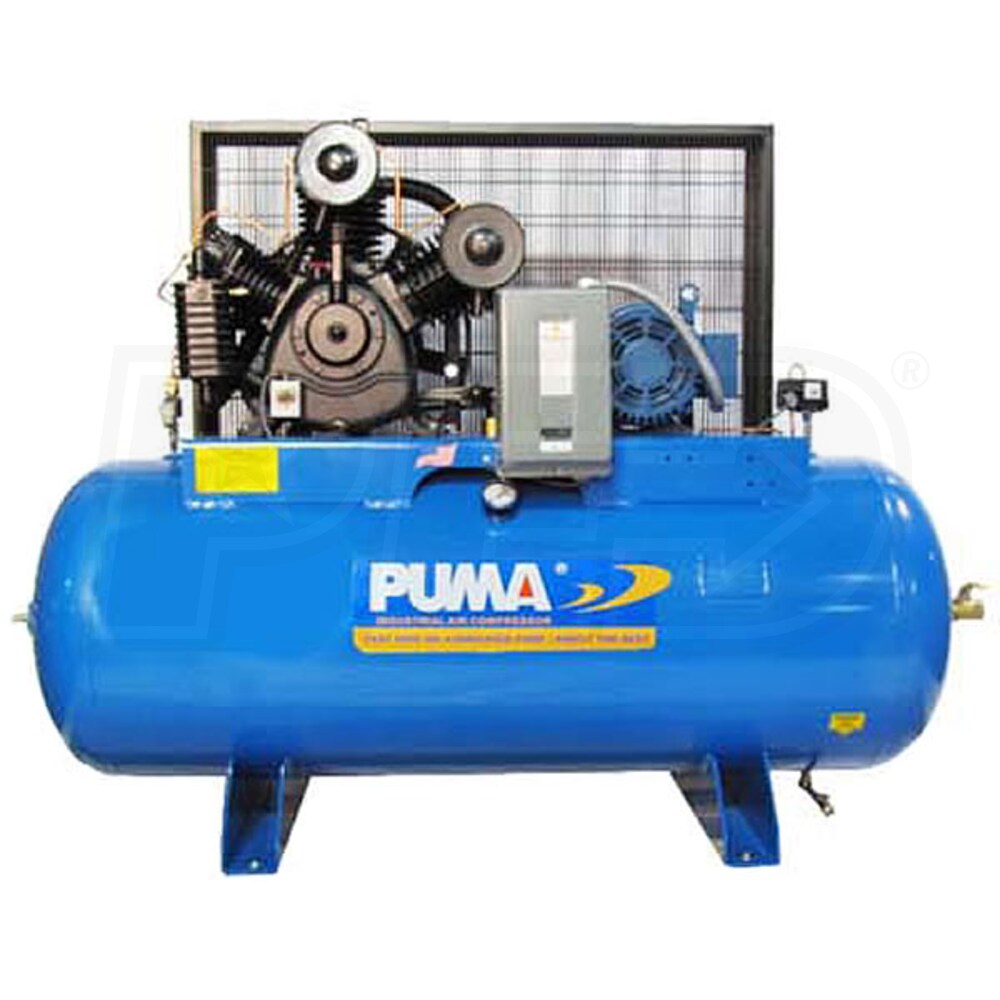

Puma 10-HP 120-Gallon Two-Stage Air Compressor (208-230V 3-Phase)

Model:

TUK-100120M3

Write a Review
$3,593.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Free Shipping$3,593.99Buy Now
Free Freight$3,593.99Visit Site
Puma 10-HP 120-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Puma 10-HP 120-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Model: TUK-100120M3
$3,593.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase208-230/460 Volt AC

CFM

36.3

Tank Size

120

  • 208-230 Volt, 3-Phase Induction Motor
  • Lower RPM (1740) helps motor run cooler, last longer
  • Magnetic Starter With Overload Protection
  • Soft start for smooth operation
  • Oil Lubricated 2-Stage Cast-Iron Pump
  • Powerful, durable & reliable; suited for commercial applications
  • Produces 36.3 CFM at 90 PSI & 34.2 CFM at 175 PSI
  • Lower RPM (870) helps pump run cooler, last longer
  • 120 Gallon Horizontal Tank
  • All controls are easily accessible
  • Rated at 200 PSI; ASME & CRN certified for safety
  • Easy access to tank drain
  • Belt Drive
  • Full enclosure protects the belt & operator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

TUK-100120M3
specs product image PID-13966
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
27 - 24.4
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
36.3
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
120 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
1020 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
30 Inches
Product Height
84 Inches
Power Type
Electric
