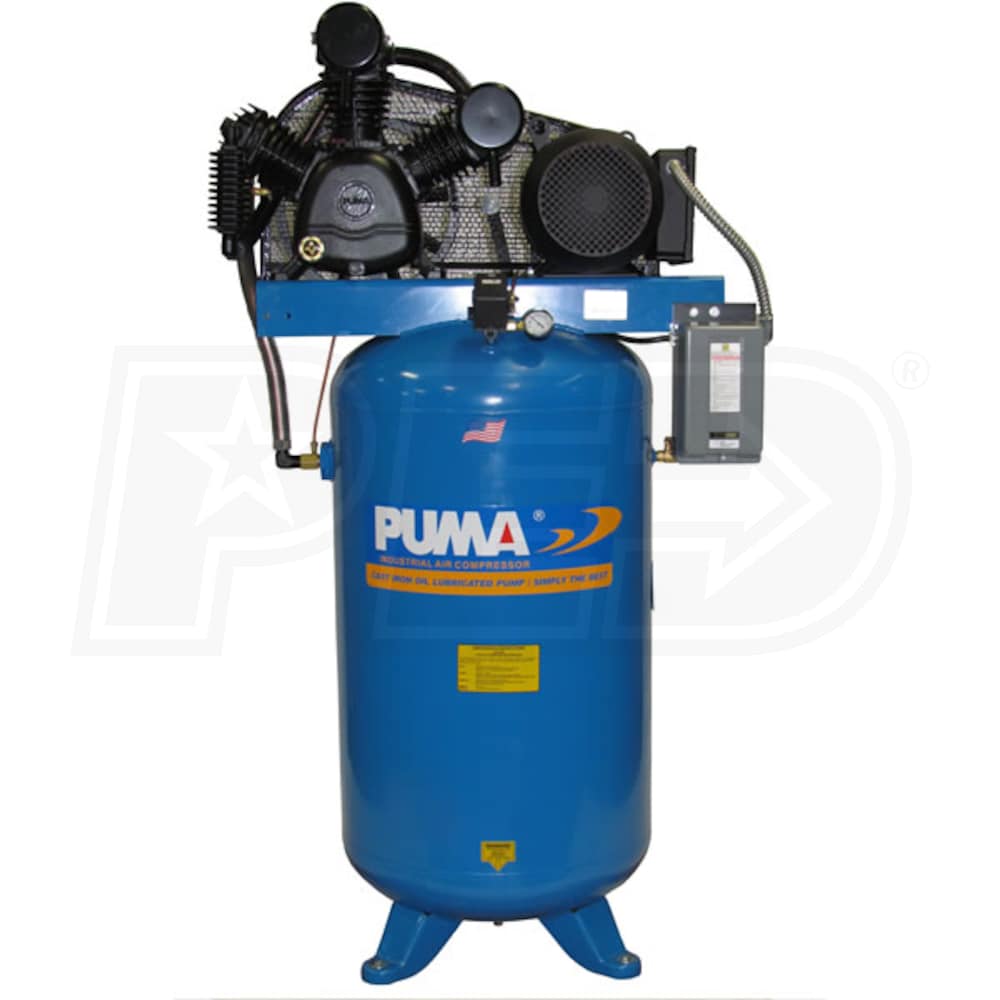

Puma 7.5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model: TUE-7580VM3-460
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
23
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- Heavy-Duty 460V-3 Phase Belt Drive Compressor
- Steady, powerful air can run multiple tools at once
- Oil Lubricated V-Type Pump
- Runs cooler, works longer with less vibration
- Factory Mounted Magnetic Starter
- Protects your compressor from being overloaded
- 2-Stage Pump
- Produces higher CFM more efficiently, with less heat
- Develops 23 CFM at 90 PSI, 22 CFM at 175 PSI
- Versatile
- Upright design takes up less floor space than horizontal units
- Low 8.97 running amps
- Excellent choice for commercial & light industrial applications
- 80 Gallon Vertical Air Tank
- ASME & CRN certified for safety
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
8.97
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025532
Grade

Style

CFM
23
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- Heavy-Duty 460V-3 Phase Belt Drive Compressor
- Steady, powerful air can run multiple tools at once
- Oil Lubricated V-Type Pump
- Runs cooler, works longer with less vibration
- Factory Mounted Magnetic Starter
- Protects your compressor from being overloaded
- 2-Stage Pump
- Produces higher CFM more efficiently, with less heat
- Develops 23 CFM at 90 PSI, 22 CFM at 175 PSI
- Versatile
- Upright design takes up less floor space than horizontal units
- Low 8.97 running amps
- Excellent choice for commercial & light industrial applications
- 80 Gallon Vertical Air Tank
- ASME & CRN certified for safety
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
8.97
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025532
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
8.97
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
550 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
636084025532
