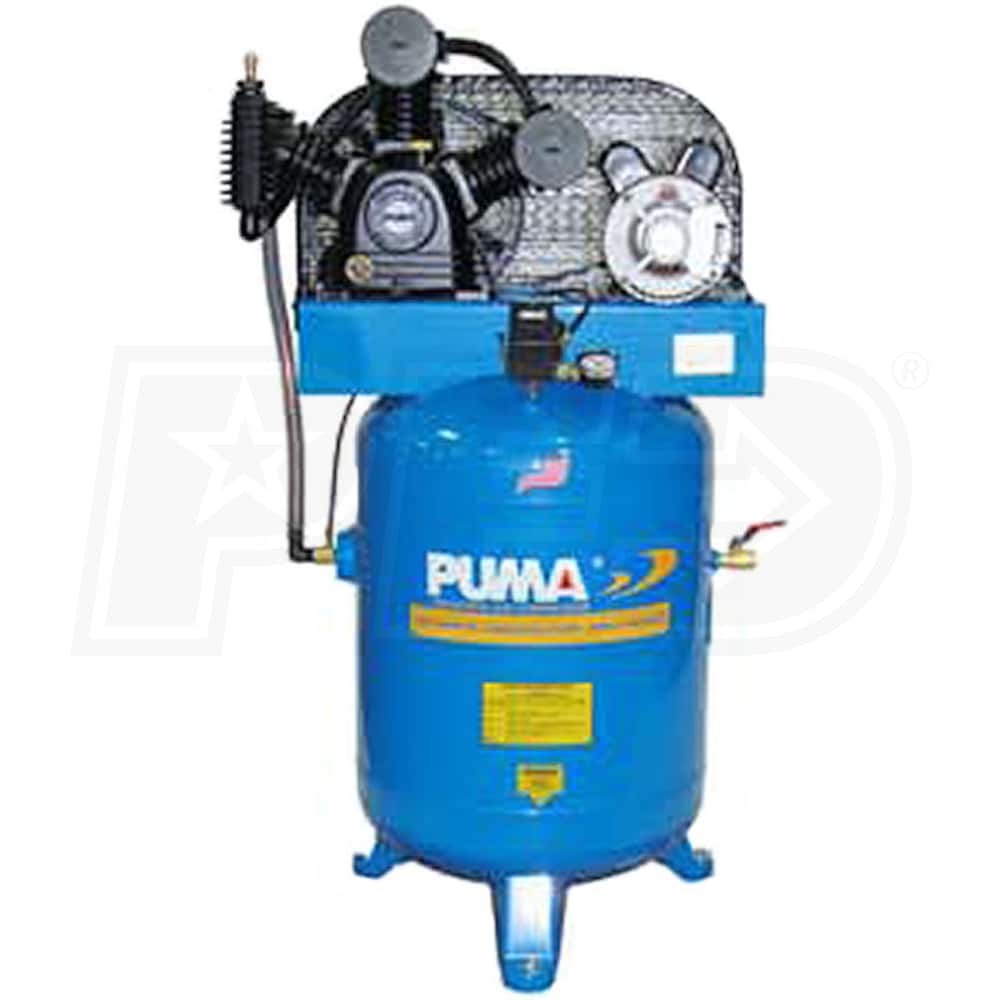

Puma 5-HP 40-Gallon Two-Stage Air Compressor (208/230V 1-Phase)

Model:

TE-5040V

Write A Review
$1,229.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Puma 5-HP 40-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Puma 5-HP 40-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: TE-5040V
$1,229.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

14

Tank Size

40

  • 208-230 Volt, Single Phase 5HP Induction Motor
  • Reliable power for craftspeople & light commercial use
  • Requires 23-21 amp circuit; no magnetic starter needed
  • 2 Stage Cast-Iron 985 RPM Pump
  • Produces 14 CFM at 90 PSI, 12.8 CFM at 175 PSI
  • Oil Lubricated
  • Runs quietly & reliably
  • 40 Gallon Vertical Tank
  • ASME & CRN certified for reliability & safety
  • 1/2" air outlet; 1/4" drain ball valve; rated to 200 PSI
  • Smaller footprint than horizontal models frees up shop space
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

TE-5040V
specs product image PID-13941
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
23 - 21
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
40 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
280 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
UPC
636084028571

Reviews

(42)
Puma TE-5040V Reviews & Ratings

Product Q&A

(5)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
What is the measurement from the floor to the top of the fan shroud?
Blue
from California
April 03, 2020
What is the decibel rating of this compressor?
Tom
from Idaho
October 11, 2019
What is the amperage of the motor with 208 voltage?
John M.
from Indiana
October 05, 2019
Is this compressor oil-free?
Randy
from Florida
July 31, 2019
Is there a way to install a silencer/muffler on this compressor? I will put some rubber material underneath the feet, which will help. Thank you in advance for any assistance you can offer. Hugh
Hugh
from Virginia
April 14, 2016
