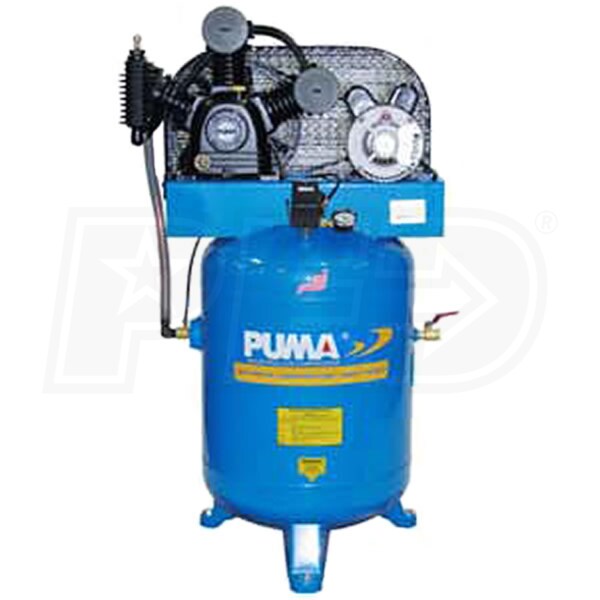

Puma 3-HP 40-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: TE-3040V
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews(40)
Write a Review
$929.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Free Shipping$929.99Buy Now
Free Freight$929.99Visit Site
Share
  • Product Description
  • 40
    Reviews
  • 9
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
10.2
CFM Rated @ 90 PSI
Tank Size
40
Gallons
Grade
Commercial
CFM
10.2 CFM Rated @ 90 PSI
Tank Size
40 Gallons
Features
Features
  • 208-230 Volt, Single Phase 3HP Induction Motor
  • Reliable power for craftspeople & light commercial use
  • Requires 16.6-15 amp circuit; no magnetic starter needed
  • 2 Stage Cast-Iron 985 RPM Pump
  • Produces 10.2 CFM at 90 PSI, 9.3 CFM at 175 PSI
  • Oil Lubricated
  • Runs quietly & reliably
  • 40 Gallon Vertical Tank
  • ASME & CRN certified for reliability & safety
  • 1/2" air outlet; 1/4" drain ball valve; rated to 175 PSI
  • Smaller footprint than horizontal models frees up shop space
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16.6 - 15
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM
10.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
40 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
UPC
636084028564
Grade
Commercial
Style
Two Stage 1-Phase
CFM
10.2
CFM Rated @ 90 PSI
Tank Size
40
Gallons
Grade
Commercial
CFM
10.2 CFM Rated @ 90 PSI
Tank Size
40 Gallons
Features
Features
  • 208-230 Volt, Single Phase 3HP Induction Motor
  • Reliable power for craftspeople & light commercial use
  • Requires 16.6-15 amp circuit; no magnetic starter needed
  • 2 Stage Cast-Iron 985 RPM Pump
  • Produces 10.2 CFM at 90 PSI, 9.3 CFM at 175 PSI
  • Oil Lubricated
  • Runs quietly & reliably
  • 40 Gallon Vertical Tank
  • ASME & CRN certified for reliability & safety
  • 1/2" air outlet; 1/4" drain ball valve; rated to 175 PSI
  • Smaller footprint than horizontal models frees up shop space
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16.6 - 15
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM
10.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
40 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
UPC
636084028564
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
16.6 - 15
Recommended Breaker
Consult Certified Electrician
Engine
HP
3
Pump
CFM
10.2
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
40 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
260 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
UPC
636084028564
Reviews
(40)
+
Puma TE-3040V Reviews & Ratings
100% of Reviewers Recommend This Product
Product Q&A
(9)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
Does the compressed air have to be bled off to the drain the water from the tank?
Gary R.
from California
July 15, 2018
Answer
For this unit, no, because the manufacturer specified that it is the same outlet.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Does this unit require a magnetic starter?
Gary
from California
July 15, 2018
Answer
No, this does not require a magnetic starter.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
I want to build a base to set the compressor on. Are there 3 feet or 4 feet at the bottom of the tank? What is the diameter of a circle drawn through the mounting holes in the feet?
Gary R.
from California
July 15, 2018
Answer
It has 3 feet and they are 3/8".
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the weight of this compressor?
Tyler Z.
from Texas
April 27, 2018
Answer
This unit weighs 260 lbs.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What are the dimensions?
Tyler Z.
from Texas
April 25, 2018
Answer
The dimensions of this model are 24" L x 28" W x 54" H.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Steve, can I install a 30amp dryer type chord on the Puma 3040 and utilize a 30 amp 240 volt outlet?
John Cryer
from Texas
October 07, 2016
Answer
Any alteration to the wiring of the unit will void the Factory Warranty, and could present a safety issue- we don't recommend it.

You can sort Puma's Two-Stage Lineup for the voltage and phase you need.

You could also give the folks at Puma a call at (901) 744-7979 for advice on any adaptions you are planning.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the amp draw at 240 volts? Is 240 volts single phase OKAY?
Ralph
from Florida
July 04, 2016
Answer
Unfortunately, we do not have that specification. Please contact Puma @ (901) 744-7979 for additional info.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
Does this compressor come ready to plug in or do you have to wire it in?
Greg
from Indiana
July 03, 2016
Answer
This compressor, like most stationary air compressors, does not come with a power cord. They are normally hard wired directly to the electrical panel. We do recommend adding a pressure regulator so that the pressure can be adjusted to the psi of your air tools. There is a manual drain on the bottom of the tank so that accumulated water can be emptied.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the noise level in decibles?
Charlie
from Virginia
November 14, 2015
Answer
I combed through the manual & spec sheet we have listed under the Specs tab, and I also checked the Puma website- they aren't listing a decibel level for this unit.

You might want to give them a call at (901) 744-7979 to see if they have that information available.

Be sure to ask how far away from the compressor the measurement was taken- usually it's about 3 feet, but there isn't a hard and fast rule. Standing farther away reduces the dBA level.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
