Puma DD2022S
Puma DD2022S
Hover to zoom
1 Of 5

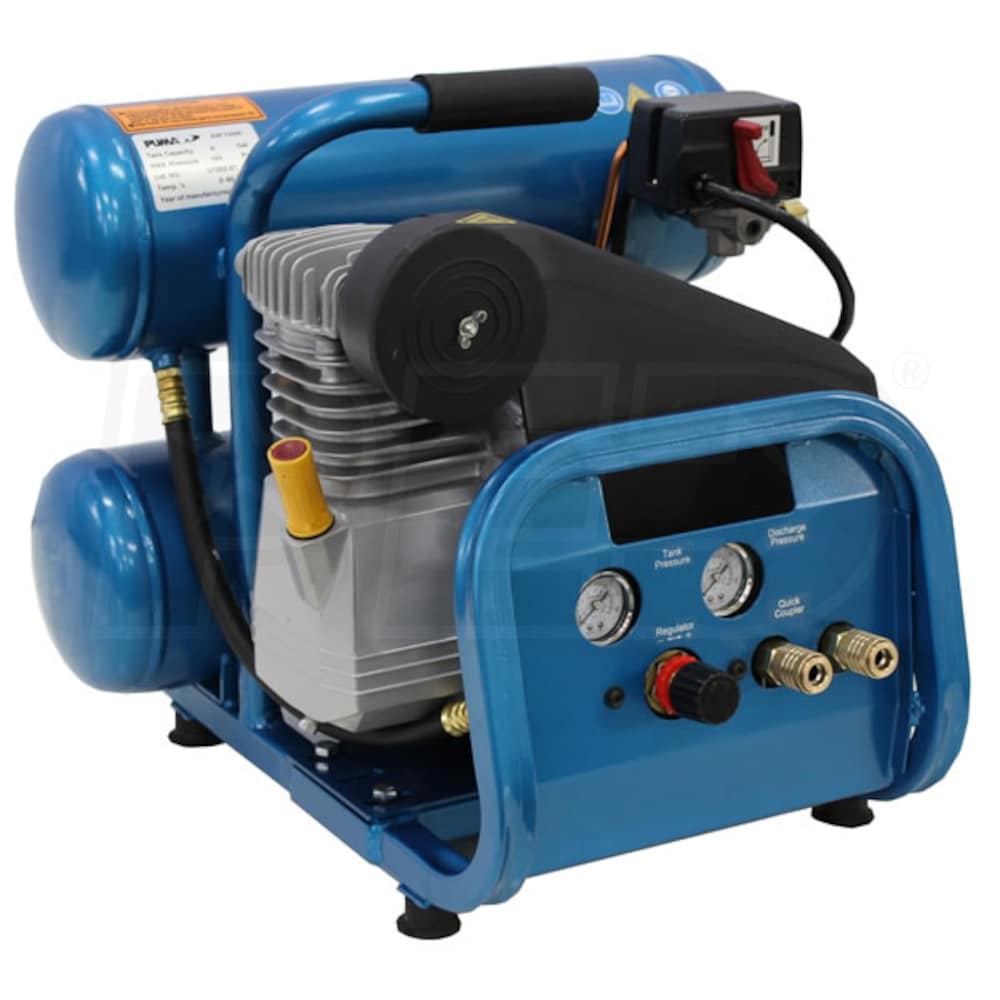

Puma 1.5-HP 4-Gallon Twin Stack Air Compressor

Model:

DD2022S

Write A Review
$309.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Puma 1.5-HP 4-Gallon Twin Stack Air Compressor
Puma 1.5-HP 4-Gallon Twin Stack Air Compressor
Model: DD2022S
$309.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Twin Stack

CFM

3.7

Tank Size

4

  • Oil Lubricated, Low Maintenance Operation
  • Runs cooler, lasts longer
  • No belts or pulleys to replace
  • Conveniently Located Control Panel
  • Gauges and regulator at your fingertips
  • Lightweight Portable Design
  • Well balanced and easy to carry
  • Rubber Feet
  • Stabilizes compressor & eliminates movement due to vibration
  • Wrap Around Frame Design
  • Easy to transport & store
  • Versatile
  • Produces 4.2 CFM at 40 PSI; 3.7 CFM at 90 PSI
  • Runs many light to medium duty air tools
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DD2022S
specs product image PID-11101
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
83
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
13.5
Engine
HP
1.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
3.7
CFM Rated @
90 PSI
CFM @ 40 PSI
4.2
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
74 Pounds
Certification
CSA
Consumer Warranty
1 Year
Product Length
19 Inches
Product Width
19 Inches
Product Height
19 Inches
Power Type
Electric
UPC
0636084620225
