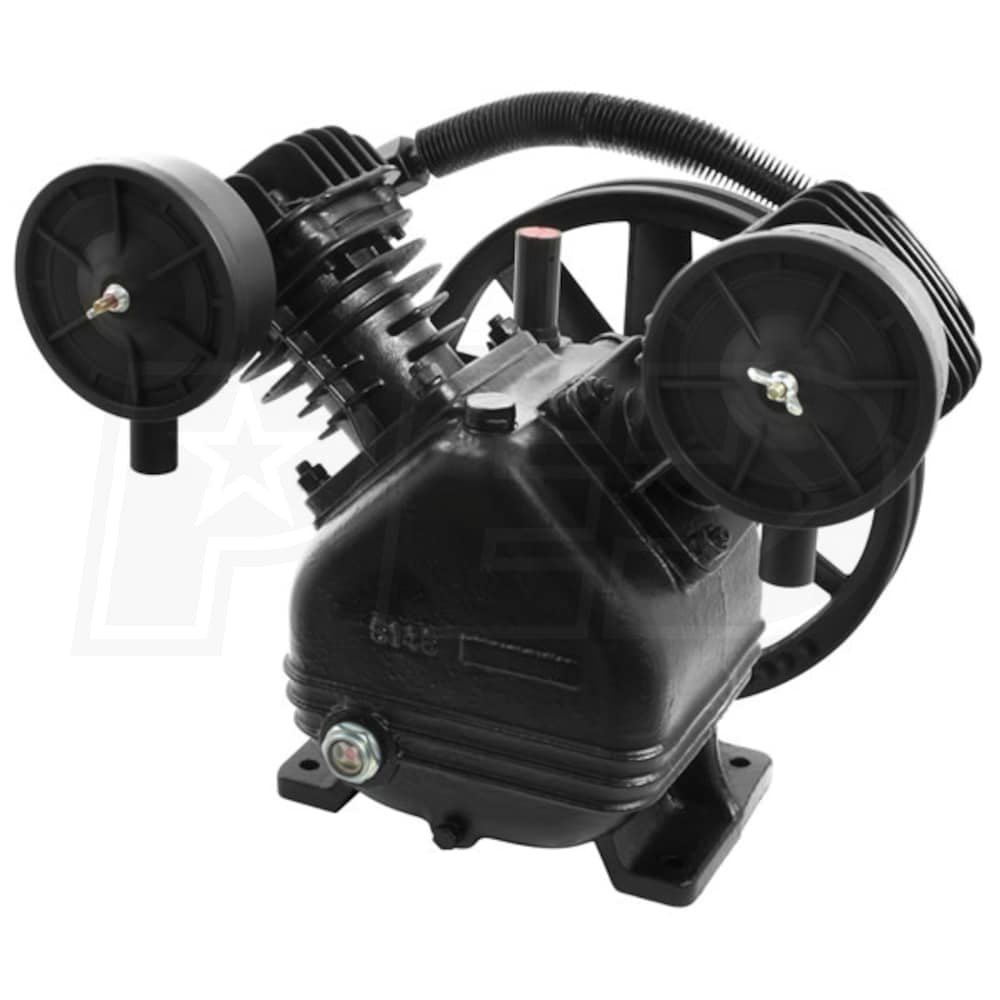

Powermate 1.6-HP Single-Stage V-Twin Replacement Air Compressor Pump (6.2 CFM @ 40 PSI)

Model:

040-0386RP

Write A Review
$209.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships from Powermate
Shipping to60601
Powermate 1.6-HP Single-Stage V-Twin Replacement Air Compressor Pump (6.2 CFM @ 40 PSI)
Powermate 1.6-HP Single-Stage V-Twin Replacement Air Compressor Pump (6.2 CFM @ 40 PSI)
Model: 040-0386RP
$209.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • 1.6 HP Cast Iron Single Stage V-Twin Replacement Pump
  • Designed to provide maximum performance and efficiency
  • Mounting pattern 6.77" W x 3.54" D (Depth)
  • 4 bolting holes; 0.354 diameter per hole
  • Produces 1.6 running horsepower
  • Durable 2 Cylinder Pump
  • Develops 6.2 CFM at 40 PSI & 5.3 CFM @ 90 PSI
  • 2 large canister style air filter
  • 1250 Maximum RPM
  • "A" (width) single v-belt
  • Delivers high performance & longevity

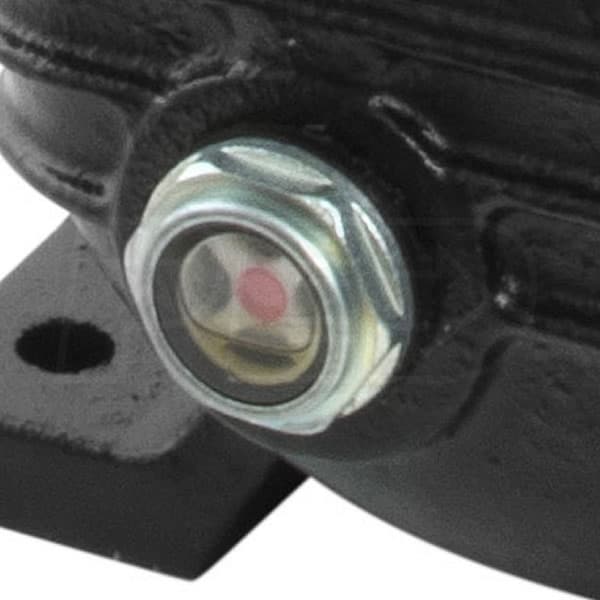

  • Easy-To-Read Oil Level Sight Gauge
  • Monitor pump oil level at a glance
  • 11.35 oz. capacity oil reservoir (Pump oil not included)
  • Automotive-Style Ball Bearings
  • Offers reliable stainless steel reed valves
  • Provide optimum performance & extended pump life
  • Rugged Cast Iron Flywheel & Crankcase
  • 10.50" Flyweel diameter
  • Balanced for best performance & durability
  • Compatibility
  • Industrial Air, Magna Force, Powermate, Sanborn, Porter Cable and DeWalt
  • Pump is not a direct replacement for any other brand
  • 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

040-0386RP
specs product image PID-57809
General Information
Product Category
Air Compressor Parts
Engine
HP
1.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
38 Pounds
Consumer Warranty
1 Year
Product Length
15.1 Inches
Product Width
10.33 Inches
Product Height
13.15 Inches
UPC
846212023648

Reviews

(9)
Powermate 040-0386RP Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
What direction is the rotation of this unit?
Joel
from Washington
June 11, 2019
