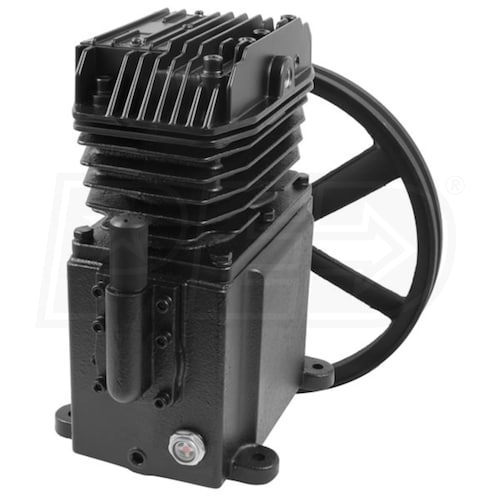

Powermate 3.7-HP Single-Stage Inline-Twin Replacement Air Compressor Pump (13.4 CFM @ 40 PSI)
Model:
040-0354RP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 3.7HP Cast Iron Single Stage Inline-Twin Replacement Pump
- Provides maximum performance and efficiency
- Mounting Pattern 5.87" W x 5.74" D (Depth)
- 4 bolting holes; 0.354 diameter per hole
- Produces 3.7 running horsepower
- Durable 2 Cylinder Pump
- Develops 13.4 CFM at 40 PSI & 11.5 CFM @ 90 PSI
- Felt pad air filter included
- 1100 Maximum RPM
- Delivers high performance & longevity
- "A" (width) single v-belt
- Rugged Cast Iron Flywheel & Crankcase
- Balanced for best performance & durability
- 12" Flywheel diameter
- Automotive-Style Ball Bearings
- Provide optimum performance & extended pump life
- Offers reliable stainless steel reed valves

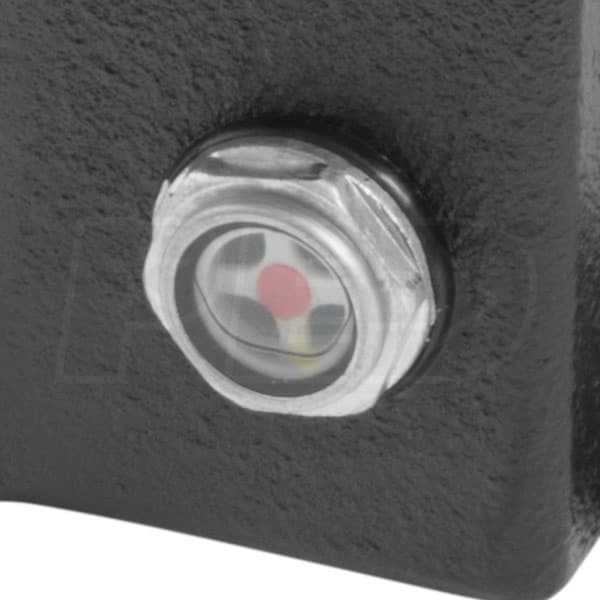

- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 16 oz. capacity oil reservoir (Pump oil not included)
- Compatibility
- Industrial Air, Magna Force, Powermate, Sanborn, Porter Cable and DeWalt
- Pump is not a direct replacement for any other brand
- 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040-0354RP
General Information
Product Category
Air Compressor Parts
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
11.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
49 Pounds
Consumer Warranty
1 Year
Product Length
6.84 Inches
Product Width
11.43 Inches
Product Height
12.05 Inches
UPC
846212023662
Reviews
(77)
Powermate 040-0354RP Reviews & Ratings
Product Q&A
(7)
Product Questions
Answered by Melissa, the Air Compressor Expert
Where is the outlet, and how large is it?
Alan
from Oklahoma
August 19, 2023
Will this pump fit a Power Torque air compressor with a 3.7 hr motor?
Dennis M.
from Mississippi
February 24, 2020
Will this work with a 3 HP, 3450 rpm electric motor?
Rick
from Ohio
October 09, 2019
What HP motor do you recommend for this pump?
Lance O.
from Mississippi
September 27, 2019
Is oil included?
Richard
from Tennessee
March 04, 2019
What is the operating RPM of this pump?
Chandler
from Michigan
January 07, 2019
What is the flywheel rotation?
Allen
from Kentucky
October 14, 2018
