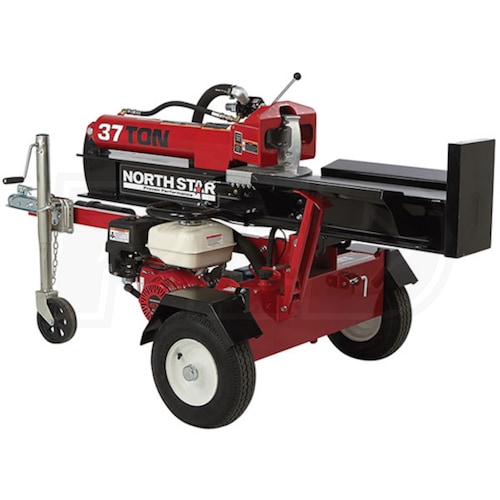

NorthStar 37-Ton Horizontal / Vertical Gas Log Splitter w/ Honda Engine
NorthStar 37-Ton Horizontal / Vertical Gas Log Splitter w/ Honda Engine
Model: 1131
Features
Specifications
Reviews
How-To Articles

Features

  • Split Horizontally And Vertically
  • Horizontal splitting handles smaller logs at waist level
  • Vertical splitting lets you roll large stumps into place
  • Premium Grade Honda GX270 Engine
  • Reliable & dependable 270cc starts easily
  • Exclusive idle-down saves fuel, reduces noise during loading
  • 2-Stage Concentric™ Pump
  • Uses less horsepower than single stage pumps
  • Saves engine wear & tear to keep you splitting longer
  • Premium Quad Hydraulic Filtration System
  • 4-step process protects & prolongs pump life
  • 8.5" Splitting Wedge
  • Durable heavy-plate log stripper frees logs from wedge
  • 14 second cycle time gets more wood split, faster
  • Industrial Grade Full I-Beam w/ Plate Steel Reinforcement
  • Prevents twisting under splitting pressure
  • Heavy duty log cradles keep logs on the beam for sorting
  • Ultra-Tow™ Ultra-Pack High Speed Towing Package
  • Get to the woodpile quick & easy
  • 2" ball hitch, fenders, lights, jackstand & 12" high speed tires

Specifications

1131
specs product image PID-14406
Engine
Engine Brand
Honda GX
Starting System
Recoil Start
CC
270 CCs
Fuel Tank Size
1.4 Gallons
Idle Control
Yes
Low Oil Shutdown
Yes
Hydraulics
Auto Return
Yes
Hydraulic Filter
Yes
Hydraulic Reservoir Size
9 Gallons
Max Pump PSI
3500 PSI
Cylinder Diameter
5 Inches
Cylinder Length
24 Inches
Cycle Time
14 Seconds
Tonnage
37 Tons
Overview
Assembly Required
Yes
Weight
625 Pounds
Consumer Warranty
4 Years
Commercial Warranty
1 Year
Product Length
90 Inches
Product Width
45 Inches
Product Height
45 Inches
Wedge
Wedge Material
Steel
Wedge Size
8 Inches
Wedge Style
2-way
Replaceable Wedge
Yes
Sharpenable Wedge
Yes
Log Capacity
Max Log Length
25 Inches
Max Log Diameter
16 Inches
Towing
Towable
Yes
D.O.T. Lights
No
Fenders
Included
Hitch Type
2 Inch Ball Hitch
Max Towing Speed
55 MPH
Accessories
Jack Stands
Included
Log Cradles
Included
Wood Type Hardness Rating 6" Seasoned 6" Green 12" Seasoned 12" Green 24" Seasoned 24" Green
Alder 590 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Ash 1320 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Aspen 420 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Basswood 410 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Beech 1300 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Birch 1470 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Boxelder 720 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Buckeye 350 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Catalpa 550 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Cedar 900 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cherry 950 Lbs. 6+ Tons 8+ Tons 15+ Tons 20+ Tons 27+ Tons 30+ Tons
Cottonwood 430 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Dogwood 2150 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Elm 1540 Lbs. 10+ Tons 13+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Fir 710 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Hickory 1820 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Locust 1700 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Magnolia 1020 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Maple 1450 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons
Oak 1620 Lbs. 10+ Tons 13+ Tons 22+ Tons 27+ Tons 30+ Tons 35+ Tons
Pine 860 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Poplar 540 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Spruce 510 Lbs. 4+ Tons 6+ Tons 7+ Tons 9+ Tons 27+ Tons 30+ Tons
Sweet Gum 850 Lbs. 6+ Tons 8+ Tons 10+ Tons 13+ Tons 27+ Tons 30+ Tons
Walnut 1010 Lbs. 7+ Tons 9+ Tons 16+ Tons 22+ Tons 30+ Tons 35+ Tons

Reviews

(2)
NorthStar 1131 Reviews & Ratings
Older Can Be Better
By Dale S.
Stillwater, Minnesota
Review Posted 01/09/2022
Purchased a 2010 NorthStar 30 ton splitter from a friend summer, already have split over 4 full cords of wood, including massive 3 foot wide oak chunks. The machine never skipped a beat. The vertical option sure saved on the back muscles to say the least. We can split for 4 or 5 hours on one tank of gas, perhaps due to the fact the engine idles down when it goes back to start position. Tows easily and starts within one or two pulls, the Honda engine is a workhorse! I looked at many units on "seller" sights and many wanted way too much money for "junk" home built units or flimsy factory made products. Wish I would have had the unit 10 years ago.
Dale S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Features, Easy To Use, Exceeded Expectations
Woodchuck Bill from Minnesota
By Bill Magers
Gaylord, Minnesota
Review Posted 12/21/2014
I purchased my 37 ton splitter in 07. I have split birch, oak, ash, black walnut, popular, elm, maple. the splitter took them all on with no trouble, glad I spent the money and got a good one right a way.

I can split a least 4 hours without running out of gas, the splitter that is. Just love this splitter.
Bill Magers Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
