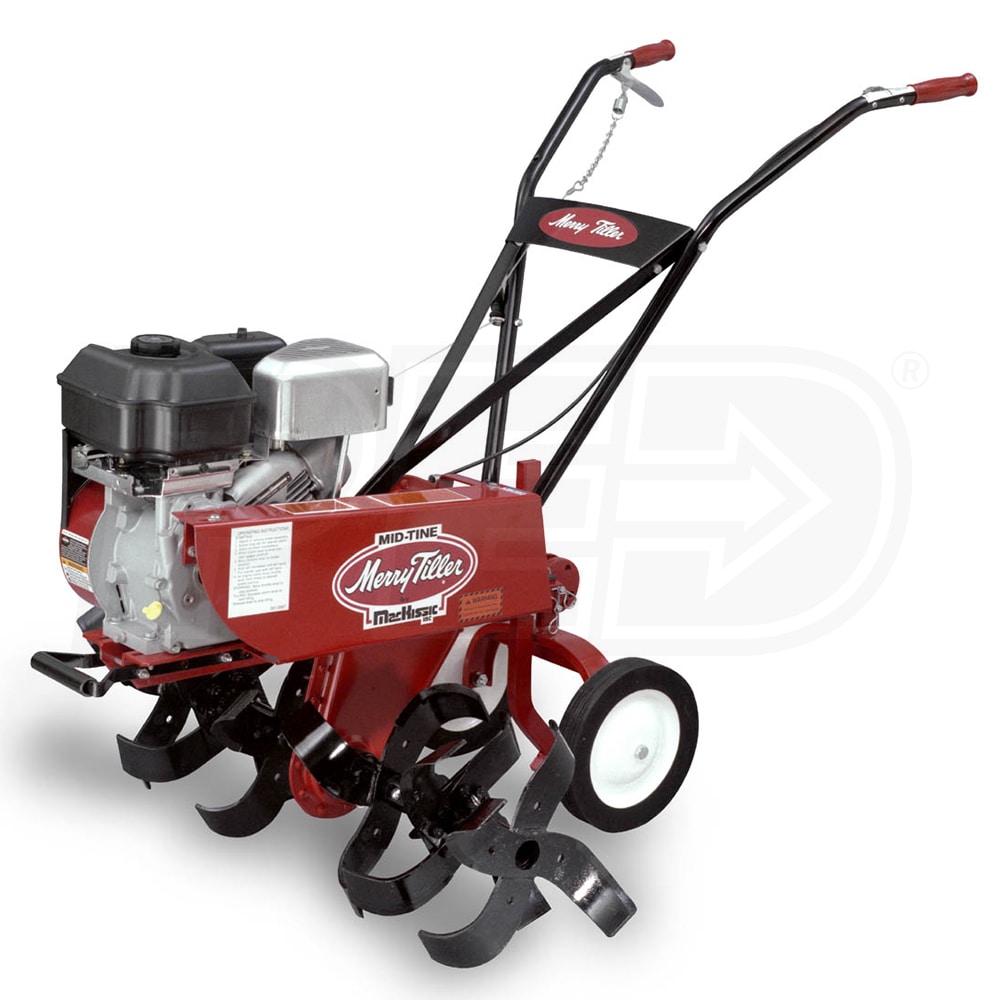

Merry Tiller International (14"/26"/37") 205cc Forward Rotating Mid-Tine Tiller
Model: IT950IC
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Stirring


Breaking


Engine
Tines

Tine Rotation

Width / Depth
37 / 12
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton I/C
Tines
Mid
Tine Rotation
Forward
Width / Depth
37 / 12 Inches
Features
Features
- 205cc Briggs & Stratton 4-Cycle OHV IC Engine
- Commercial-grade power with 9.5 lb-ft gross torque
- Includes dual air filter and drain
- Dura-Bore cylinder sleeves protect engine from dust particles
- Triple Gear Reduction Roller Chain Drive Transmission
- One factory lubricated forward gear
- Roller chains deliver added power to tine and gear drive
- 12-gauge steel with heat-treated, hardened sprockets/shafts
- Increased torque and reduced gear stress
- Double V-Belt Drive System
- Multiple belts divide operating load
- Compact design and reduced vibration
- Mid-Tine Design
- Engine mounted over tines for better weight balance
- Easy Swing-Away Wheels
- Wheel assembly lifts up and lock out of the way
- Spring pin system holds wheel assembly to rear hitch
- Adjustable Tine Width
- Three width options; 14", 26", or 37"
- 14" is ideal for cultivating in tight areas or around plants
- 26"/37" widths allow you cover more with fewer passes
- To achieve 37" width, additional tine model MT-1703 is needed
- 26" Wide Slasher Tines
- Welded, hardened, and polished carbon steel design
- Wheel & Drag Bar Assembly
- Helps balance machine and provides safety
- Adjusts to accommodate varied working conditions
- Finger Tip Clutch Control
- Allows you to control variable speeds with a push of a lever
- Helps protect against "tiller runaway"
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
205 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
9.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Middle
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
3 Positions
Tine RPM
95
Tilling Width Min
14 Inches
Tilling Width Max
37 Inches
Tilling Depth Min
12 Inches
Tilling Depth Max
12 Inches
Drive
Forward Speeds
1 Forward
Transmission
Chain Gear
Accessories
Side Shield
No
Wheels
Rear Tire Size
8 Inch
Tire Type
Plastic Wheels
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
55 Inches
Product Width
26 Inches
Product Height
40 Inches
UPC
736107190596
Stirring


Breaking


Engine
Tines

Tine Rotation

Width / Depth
37 / 12
Stirring
Yes
Breaking
Hard Soil
Engine
Briggs & Stratton I/C
Tines
Mid
Tine Rotation
Forward
Width / Depth
37 / 12 Inches
Features
Features
- 205cc Briggs & Stratton 4-Cycle OHV IC Engine
- Commercial-grade power with 9.5 lb-ft gross torque
- Includes dual air filter and drain
- Dura-Bore cylinder sleeves protect engine from dust particles
- Triple Gear Reduction Roller Chain Drive Transmission
- One factory lubricated forward gear
- Roller chains deliver added power to tine and gear drive
- 12-gauge steel with heat-treated, hardened sprockets/shafts
- Increased torque and reduced gear stress
- Double V-Belt Drive System
- Multiple belts divide operating load
- Compact design and reduced vibration
- Mid-Tine Design
- Engine mounted over tines for better weight balance
- Easy Swing-Away Wheels
- Wheel assembly lifts up and lock out of the way
- Spring pin system holds wheel assembly to rear hitch
- Adjustable Tine Width
- Three width options; 14", 26", or 37"
- 14" is ideal for cultivating in tight areas or around plants
- 26"/37" widths allow you cover more with fewer passes
- To achieve 37" width, additional tine model MT-1703 is needed
- 26" Wide Slasher Tines
- Welded, hardened, and polished carbon steel design
- Wheel & Drag Bar Assembly
- Helps balance machine and provides safety
- Adjusts to accommodate varied working conditions
- Finger Tip Clutch Control
- Allows you to control variable speeds with a push of a lever
- Helps protect against "tiller runaway"
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
205 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
9.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Middle
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
3 Positions
Tine RPM
95
Tilling Width Min
14 Inches
Tilling Width Max
37 Inches
Tilling Depth Min
12 Inches
Tilling Depth Max
12 Inches
Drive
Forward Speeds
1 Forward
Transmission
Chain Gear
Accessories
Side Shield
No
Wheels
Rear Tire Size
8 Inch
Tire Type
Plastic Wheels
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
55 Inches
Product Width
26 Inches
Product Height
40 Inches
UPC
736107190596
Product Specs
+−
Specifications
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
205 CCs
Fuel Tank Size
0.8 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
9.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Middle
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
3 Positions
Tine RPM
95
Tilling Width Min
14 Inches
Tilling Width Max
37 Inches
Tilling Depth Min
12 Inches
Tilling Depth Max
12 Inches
Drive
Forward Speeds
1 Forward
Transmission
Chain Gear
Accessories
Side Shield
No
Wheels
Rear Tire Size
8 Inch
Tire Type
Plastic Wheels
Overview
Weight
140 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
55 Inches
Product Width
26 Inches
Product Height
40 Inches
UPC
736107190596
