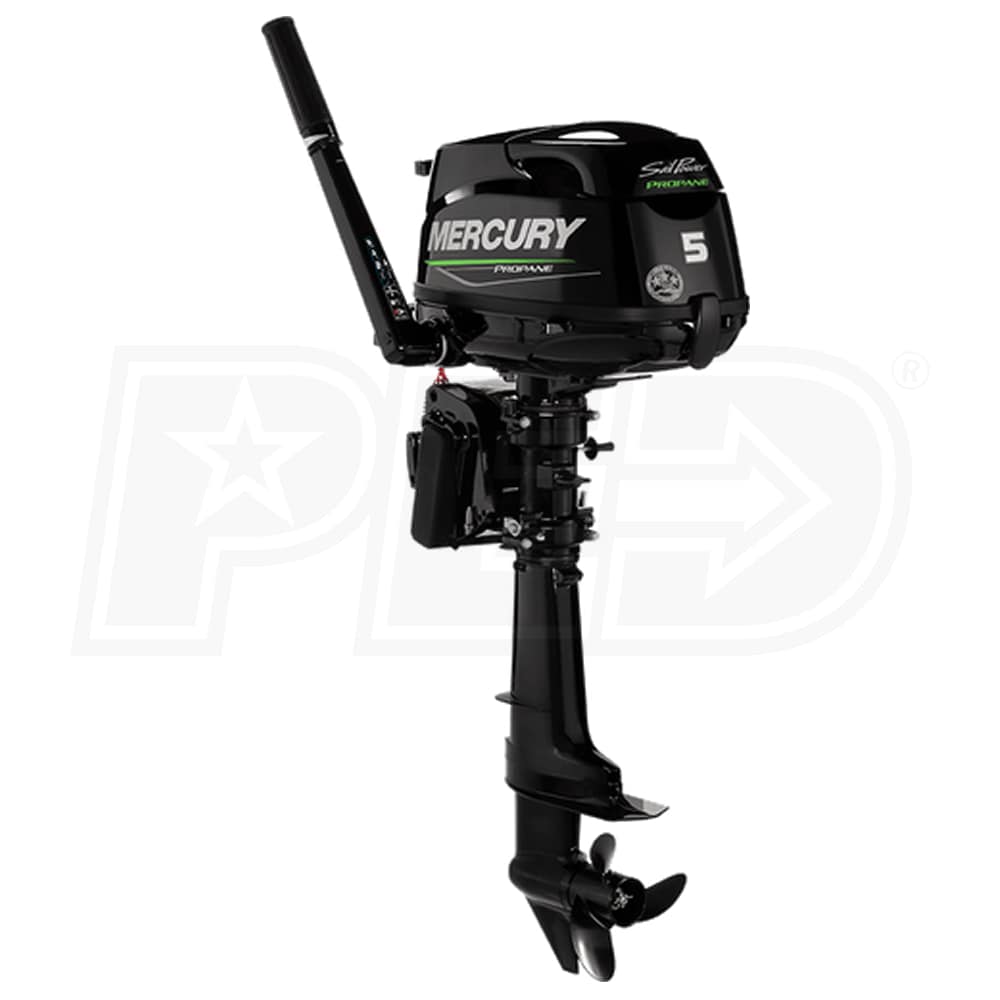

Mercury Sail Power 5 HP (20") Shaft Propane Powered Outboard Motor w/ Alternator

Model:

1FP5216EK

Write a Review
$1,710.99
Free Shipping
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
Mercury Sail Power 5 HP (20
Mercury Sail Power 5 HP (20") Shaft Propane Powered Outboard Motor w/ Alternator
Model: 1FP5216EK
$1,710.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Powerfully Compact
  • 123cc displacement single cylinder provides optimal power output
  • Overhead valve design with hardened valve seats for added durability
  • 4-point mounting system significantly reduces overall engine vibration
  • Low Oil PSI alert signals a possible engine issue before damage occurs
  • Clean Burning Propane
  • A reliable fuel- does not degrade, require additives, or contain ethanol
  • Easy, primer-free ignition with no carburetor to worry about maintaining
  • Sail Power Features
  • 4-Amp alternator charging system for battery or running lights
  • Reverse-thrust exhaust relief, offers more thrust in reverse
  • High thrust propeller improves slow speed handling and control
  • Hours Of Boating Fun
  • 10 hours running time @ 5000 rpm with 20 lb. standard propane tank
  • Same conventional propane tanks, used on grills and heaters
  • Automatically shuts off propane gas flow when engine stops
  • Unrestricted Control
  • Easy to reach forward mounted F-N-R shift lever
  • Ideal for those looking to utilize techniques like backtrolling
  • Twist grip throttle for easy access and precise throttle control
  • Co-pilot friction adjusters for fine-tuning throttle and steering resistance
  • Easy Starting
  • Designed with capacitor discharge (CD) ignition for a quicker charge
  • Built-in compression combined with a hotter spark makes pull starts a breeze
  • Six Manual Trim Positions
  • Exercise 1 of 6 tilt positions for maximum control and performance
  • Tilt Lock System locks motor in place when removing from water or portaging
  • Exclusive Through-Prop Exhaust
  • Exhaust is emitted through the prop for significant noise reduction
  • Designed with a shear pin for added drive protection
  • Aluminum with rubber hub propeller instead of plastic (less slippage)
  • Easy Maintenance & Transportation
  • Lightweight design and built-in handles for painless transportation
  • Features an oil drain plug for quick and hassle-free oil changes
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1FP5216EK
specs product image PID-97568
Engine
CARB Compliant
Yes
Fuel System
Propane Mixer
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
123 CCs
Bore & Stroke
2.32 x 1.77 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil
Charging System
4-Amp (50-Watt)
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
Power Trim
No
Fuel
HD-5 (65% Propane or Greater)
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Weight
63 Pounds
Consumer Warranty
3 Years
Product Length
46 Inches
Product Width
13 Inches
Product Height
21 Inches
Power Type
Propane
UPC
678633103599
