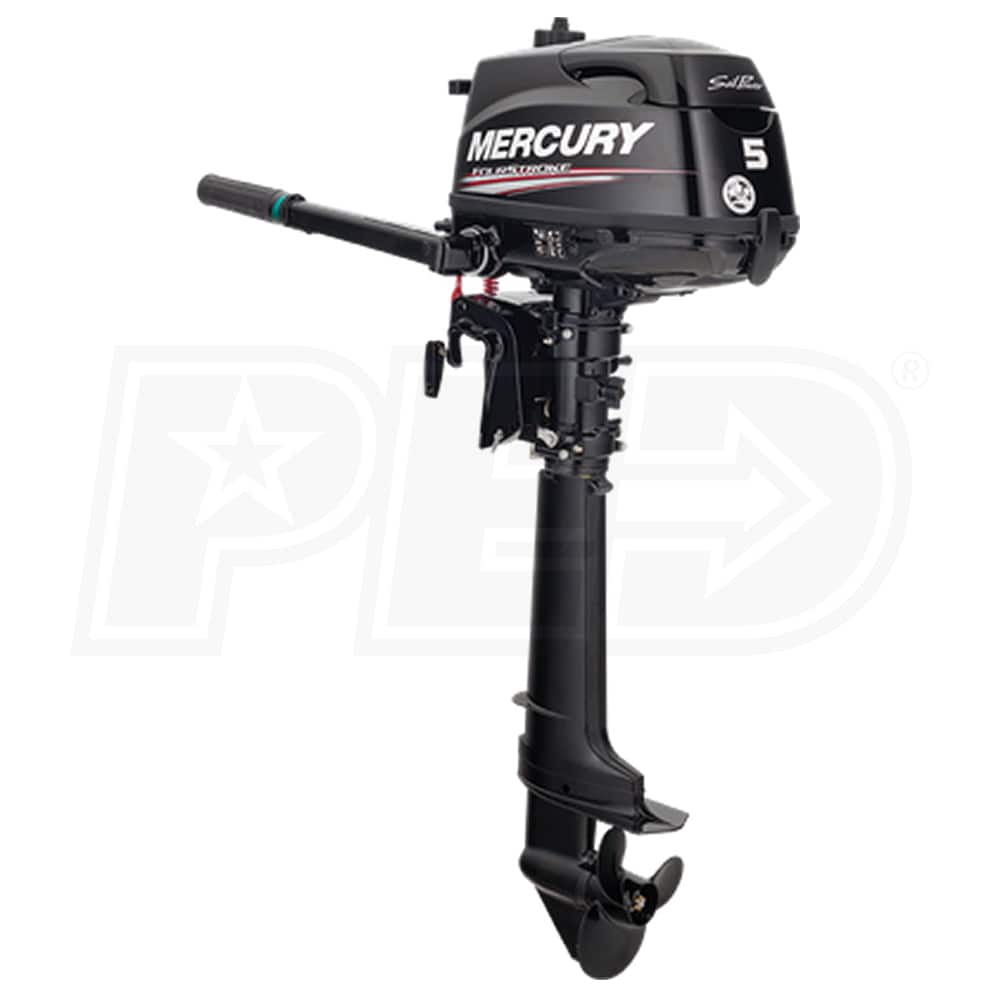

Mercury Sail Power 5 HP (20") Shaft Gas Powered Outboard Motor w/ Alternator
Model: 1F05216KK
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Powerfully Compact
- 123cc displacement single cylinder provides optimal power output
- Overhead valve design with hardened valve seats for added durability
- 4-point mounting system significantly reduces overall engine vibration
- Low Oil PSI alert signals a possible engine issue before damage occurs
- Sail Power Features
- 4-Amp alternator charging system for battery or running lights
- Reverse-thrust exhaust relief offers more thrust in reverse
- High thrust propeller improves slow speed handling and control
- Unrestricted Control
- Easy to reach forward mounted F-N-R shift lever
- Ideal for those looking to utilize techniques like backtrolling
- Twist grip throttle for easy access and precise throttle control
- Co-pilot friction adjusters for fine-tuning throttle and steering resistance
- Easy Starting
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Built-in compression combined with a hotter spark makes pull starts a breeze
- Compact Fuel Tank
- Integral 1-liter tank frees up additional space in your boat
- External fuel shutoff keeps the carburetor dry for safe storage
- Extend your cruising range using the convenient remote tank connection
- Six Manual Trim Positions
- Exercise 1 of 6 tilt positions for maximum control and performance
- Tilt Lock System locks motor in place when removing from water or portaging
- Exclusive Through-Prop Exhaust
- Exhaust is emitted through the prop for significant noise reduction
- Designed with a shear pin for added drive protection
- Aluminum with rubber hub propeller instead of plastic (less slippage)
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Use the oil site gauge to quickly check on oil quality and levels
Specifications
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
5
Engine Displacement
123 CCs
Bore & Stroke
2.32 x 1.77 Inches
Full Throttle RPM Range
4,500 - 5,500
Starting System
Recoil
Charging System
4-Amp (50-Watt)
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Sold Separately
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
20 Inches
Overview
Weight
59 Pounds
Consumer Warranty
3 Years
Product Length
46 Inches
Product Width
13 Inches
Product Height
21 Inches
Power Type
Gas
UPC
678633126888
Additional Model Numbers
1F05216EK, 1F05216KK
