Features
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Smooth & Capable
- Overhead valve design and large displacement provide optimal power output
- 4-point mounting system greatly reduces overall engine vibration
- Complete Control
- Enjoy seamless shifting and steering for better maneuverability
- Forward and neutral gears with a 180°/360° turning radius

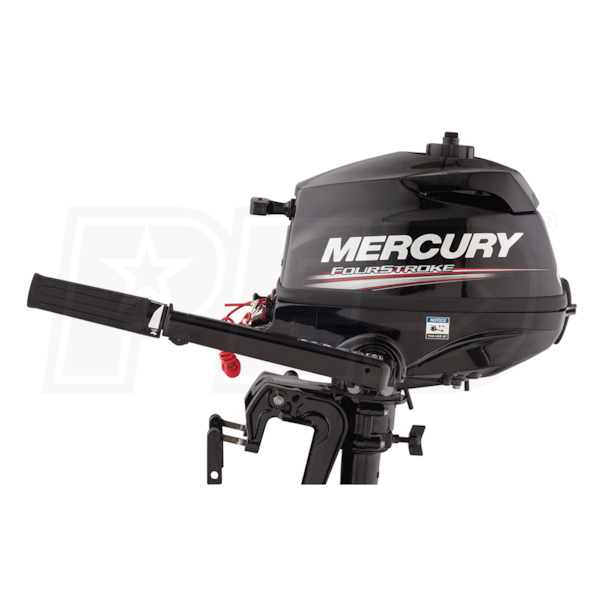

- Tiller Style Handle
- Twist grip throttle for easy access and straightforward operation
- Great for those looking to employ techniques like backtrolling
- Throttle control and steering resistance are adjustable using co-pilots
- Integral Fuel Tank
- Compact 1-liter tank frees up added space in your boat
- External fuel shutoff keeps the carburetor dry for safe storage
- Effortless Ignition
- Designed with capacitor discharge (CD) ignition for a quicker charge
- Built-in decompression combined with a hotter spark makes pull starts a breeze
- Four Manual Trim Positions
- Exercise 1 of 4 tilt positions for maximum control and performance
- Tilt Lock System locks motor in place when removing from water or portaging
- 3-Blade Propeller
- Simply remove the shear pin to perform prop maintenance!
- Designed with durable composite material for enhanced longevity
- Easy Maintenance & Transportation
- Lightweight design and built-in handles for painless transportation
- Features an oil drain plug for quick and hassle-free oil changes
- Use the oil site gauge to quickly check on oil quality and levels
- The motor is NOT capable of remote operation, tiller handle control use ONLY
- ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
1F03211KK
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke OHV
Cylinder Count
1 Cylinder
Horsepower
3.5
Engine Displacement
85 CCs
Bore & Stroke
2.16 x 1.42 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Under Water, Above Propeller
Power Tilt
No
External Fuel Tank
No
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
.30 US gal
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
No
Engine Oil Capacity
.31 US qt. (10 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N
Propeller Blades
3
Propeller Material
Plastic
Transom Height
20 Inches
Overview
Product Category
Outboard Motor
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
45 Inches
Product Width
14 Inches
Product Height
19 Inches
Power Type
Gas
UPC
678633126772
Additional Model Numbers
1F03211EK, 1F03211KK
