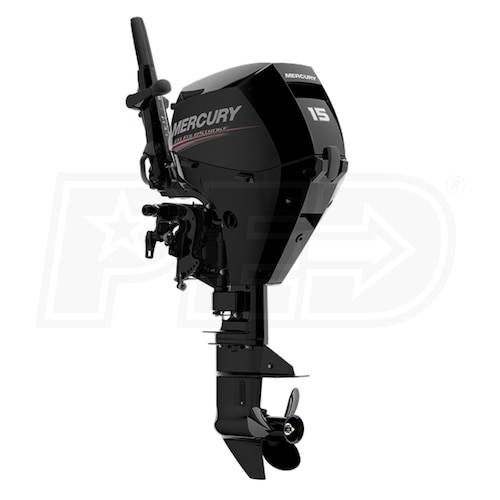

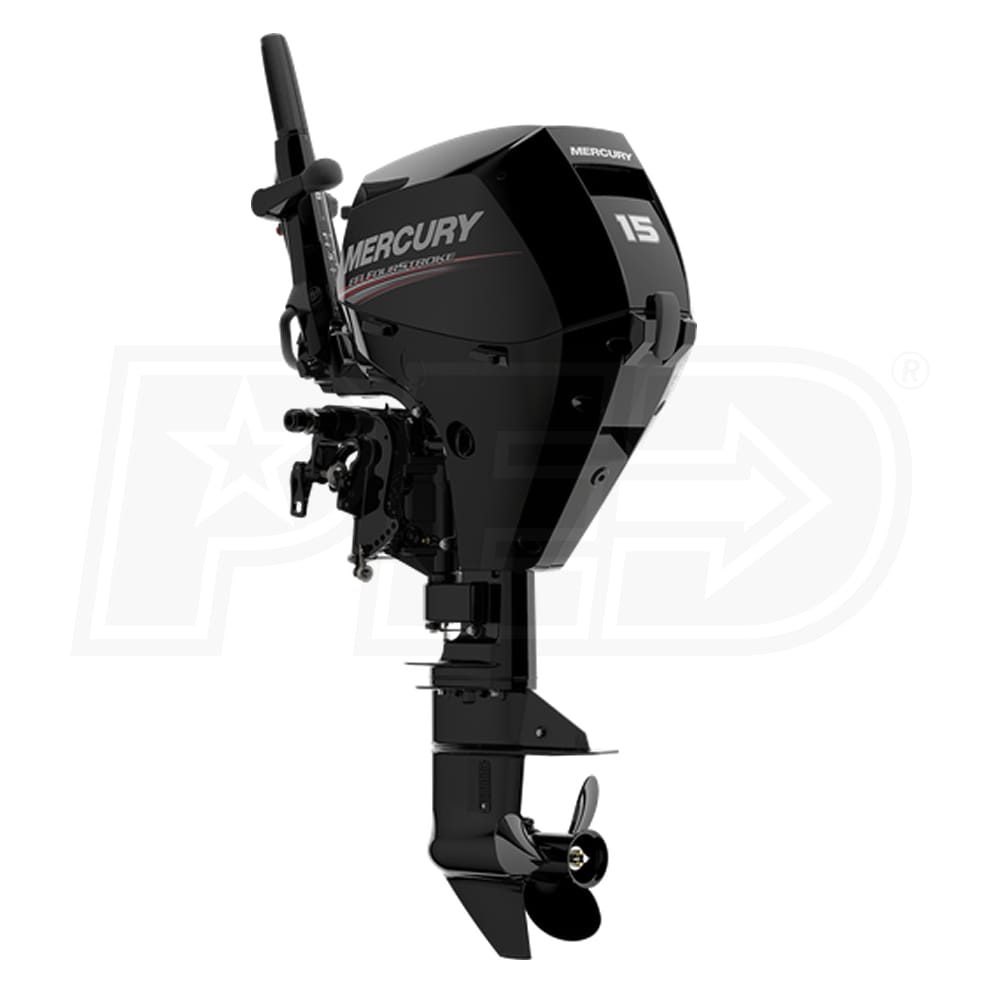

Mercury 15 HP (15") Shaft EFI Outboard Motor w/ Electric Start

Model:

1A15301LK

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Mercury 15 HP (15
Mercury 15 HP (15") Shaft EFI Outboard Motor w/ Electric Start
Model: 1A15301LK
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Highly Efficient EFI (Electronic Fuel Injection) Engine
  • Large displacement (SOHC) & maintenance-free valve train
  • Battery-free EFI reduces weight for easier portability
  • Burns less fuel and requires less maintenance vs. carburetor system
  • Easy Starting
  • Convenient electric start with manual recoil backup
  • 12-Amp alternator maintains the battery's charge
  • Designed For The Long Haul
  • Durable 2.15:1 gear ratio for added thrust in any direction
  • Dual water intake ensures proper water cooling
  • Overheating, low oil pressure and over-rev protection alerts keep you and your engine safe
  • Enhanced Tiller Control
  • Easy to reach and upfront F-N-R shift lever
  • Reversible throttle grip rotation for right or left-hand operation
  • Vertical height is adjustable, for operator's reach and preference
  • Six Trim Positions w/ Shallow Drive
  • Shallow Drive System tilts the motor for operation in shallow waters
  • Two-stage rubber mount system significantly reduces engine vibration
  • Maintenance Schedule Decal
  • On air silencer provides quick overview of routine maintenance
  • Includes what to check and inspect at 100 and 300-hour intervals
  • Also, includes key specifications and model information
  • Key Maintenance Features
  • Features an easy access in-line water separating fuel filter
  • Convenient freshwater flushing attachment
  • Quick and easy no-mess oil and filter change
  • Requires Battery w/ 465 Marine Cranking Amps (Sold Separately)
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
  • ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1A15301LK
specs product image PID-97587
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
EFI
Engine Brand
Mercury
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
15
Engine Displacement
333 CCs
Bore & Stroke
2.40 x 2.24 Inches
Full Throttle RPM Range
5,700 - 6,200
Starting System
Recoil w/ Electric Start
Charging System
12-Amp (145-Watt)
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
3.2 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
1.1 US qt. (35.2 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.15:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Product Category
Outboard Motor
Weight
112 Pounds
Consumer Warranty
3 Years
Power Type
Gas
UPC
678633127342
Additional Model Numbers

1A15301BK, 1A15301LK
