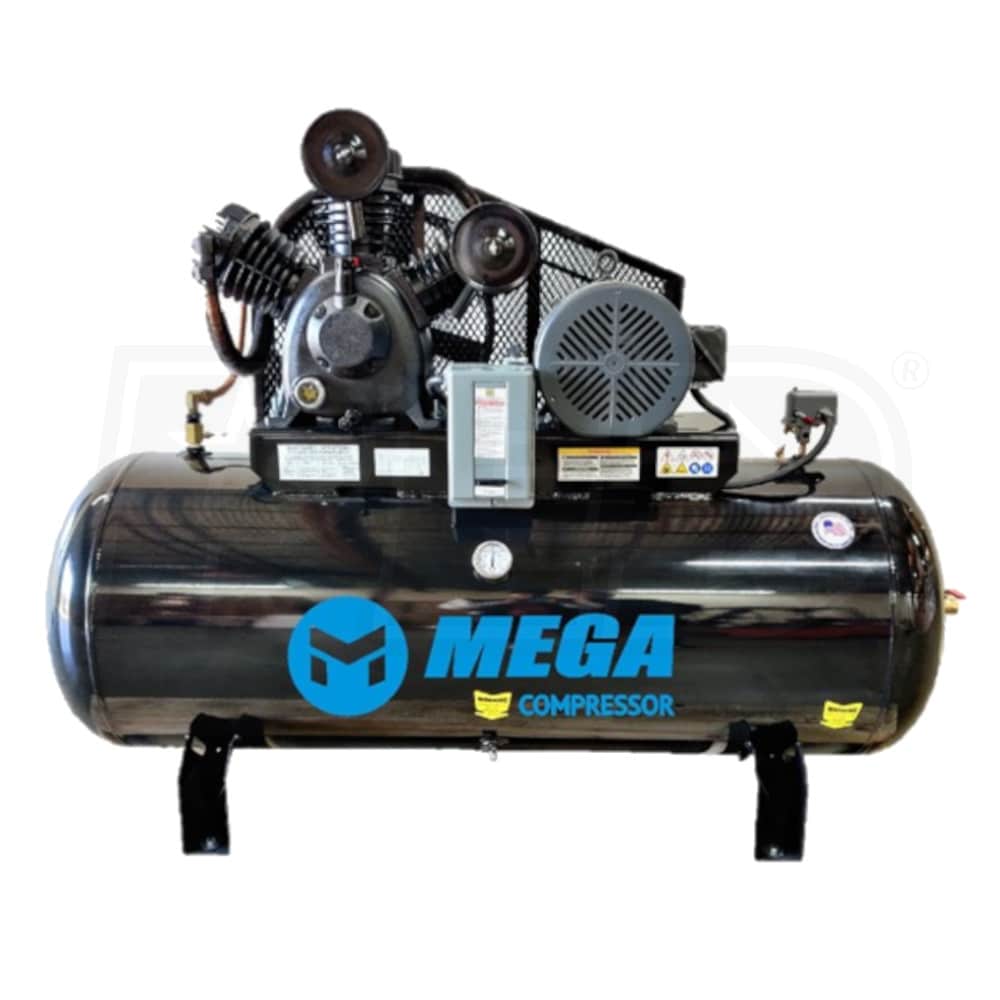

MEGA Industrial Series 10-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Model:
MP-10120H3-U460
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Voltage
460 Volt AC
Phase
3-Phase
CFM
37
Tank Size
120
- MEGA Two-Stage Industrial Air Compressor
- Designed for the serious DIY'er, professional or contractor
- Install and operate in garages, farm shops & industrial applications
- Heavy-Duty 10-HP Induction Motor
- Provides maximum performance and efficiency
- Low 1740 RPM reduces wear and tear for longer life span
- Pre-Wired Magnetic Starter
- Saves time and money
- Provides thermal overload protection for the motor
- Delivers 37 CFM @ 90 PSI: Max 200 PSI
- Plenty of power to run a wide range of air tools
- Tackle rotating tires, grinding, sanding, painting, nailing & more
- Cast Iron Splash Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "W" Design minimizes vibration and provides superior cooling
- Durable automotive-style ball bearing and stainless steel reed valves
- 120-Gallon Vertical ASME Tank
- Fully enclosed belt guard protects you and the belt
- Easy-access manual drain simplifies routine maintenance
- Easy Viewing Oil Sight Glass On Pump
- Easily check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 1-year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-10120H3-U460
General Information
Product Category
Air Compressor - Stationary
Engine
HP
10
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
13
Recommended Breaker
30 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
37
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
980 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
73 Inches
Product Height
60 Inches
Power Type
Electric
UPC
376204971607
