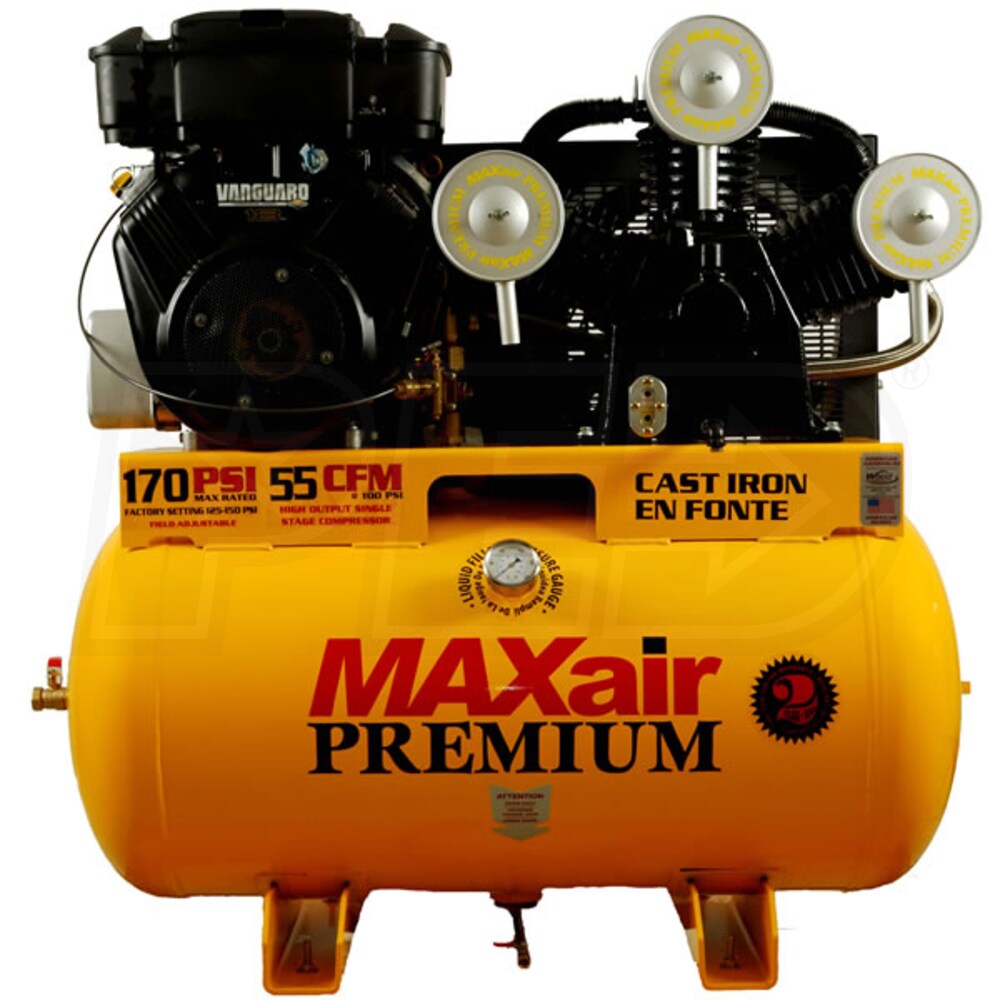

MAXair 18-HP 55-Gallon Truck Mount Air Compressor w/ Electric Start Briggs & Stratton Engine
MAXair 18-HP 55-Gallon Truck Mount Air Compressor w/ Electric Start Briggs & Stratton Engine
+
Share This Product
-
Product Description
-
6Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
55
CFM Rated @ 100 PSI
Tank Size
55
Gallons
Grade
Contractor
Engine Brand
Briggs & Stratton Vanguard
CFM
55 CFM Rated @ 100 PSI
Tank Size
55 Gallons
Features
Features
- Single Stage Commercial Pump Series Truck Mount Compressor
- Industry leading CFM production
- Great for mobile services, spray foaming, and construction jobs
- Innovative high pressure pump technology produces 170 PSI
- 18-HP Briggs & Stratton OHV Vanguard Electric Start Engine
- V-Twin commercial grade engine starts easily, runs quietly
- Sturdy fully enclosed metal belt guard protects the belt & the user
- Provided enough power for any job application
- Rugged Cast Iron "V" Style 3 Cylinder Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 55 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Government registered tank; rated to 200 PSI
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Battery & cables not included; must be purchased separately
- Generous 2-Year Commercial Manufacturer Warranty
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
55
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
55 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
490 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48 Inches
Product Width
20 Inches
Product Height
46.5 Inches
Power Type
Gas
Grade
Style
Engine Brand
CFM
55
CFM Rated @ 100 PSI
Tank Size
55
Gallons
Grade
Contractor
Engine Brand
Briggs & Stratton Vanguard
CFM
55 CFM Rated @ 100 PSI
Tank Size
55 Gallons
Features
Features
- Single Stage Commercial Pump Series Truck Mount Compressor
- Industry leading CFM production
- Great for mobile services, spray foaming, and construction jobs
- Innovative high pressure pump technology produces 170 PSI
- 18-HP Briggs & Stratton OHV Vanguard Electric Start Engine
- V-Twin commercial grade engine starts easily, runs quietly
- Sturdy fully enclosed metal belt guard protects the belt & the user
- Provided enough power for any job application
- Rugged Cast Iron "V" Style 3 Cylinder Pump
- V-style minimizes vibration, improves cooling for longer service
- Efficient heat removal from flywheel for cooler running & longer life
- Removable cylinders for smooth operation & easy maintenance
- High efficiency reed valves for maximum performance
- Premium "Auto Drop" Air Filters
- Automotive style filter elements; no hassle replacement
- 55 Gallon ASME Certified Air Tank
- Heavy duty 3/4" ball valve included
- Government registered tank; rated to 200 PSI
- Engine Idle Control
- Reduces operating cost & unnecessary wear
- Low oil shut down for maximum protection
- Pro-Style Gauges
- Liquid filled pressure gauge is easy to read
- Easy-view oil sight gauge for optimum maintenance
- Convenient Drains
- Extended oil drain allows for easy access
- Moisture drain on front of tank eliminates scraped knuckles
- Uses 12 Volt, Motorcycle-Style Starter Battery
- Battery & cables not included; must be purchased separately
- Generous 2-Year Commercial Manufacturer Warranty
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
55
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
55 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
490 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48 Inches
Product Width
20 Inches
Product Height
46.5 Inches
Power Type
Gas
Product Specs
+−
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Briggs & Stratton Vanguard
Starting System
12-Volt Key Start
Engine Low Oil Shut-off
Yes
Pump
CFM
55
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
55 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
490 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48 Inches
Product Width
20 Inches
Product Height
46.5 Inches
Power Type
Gas
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
Does it matter which direction the flywheel turns on the compressor pump?
Joas Y.
from North Carolina
February 18, 2020
Answer
Yes, there are arrows on the flywheel letting you know the direction. However, standing from the front of the compressor, the flywheel will run clockwise.
