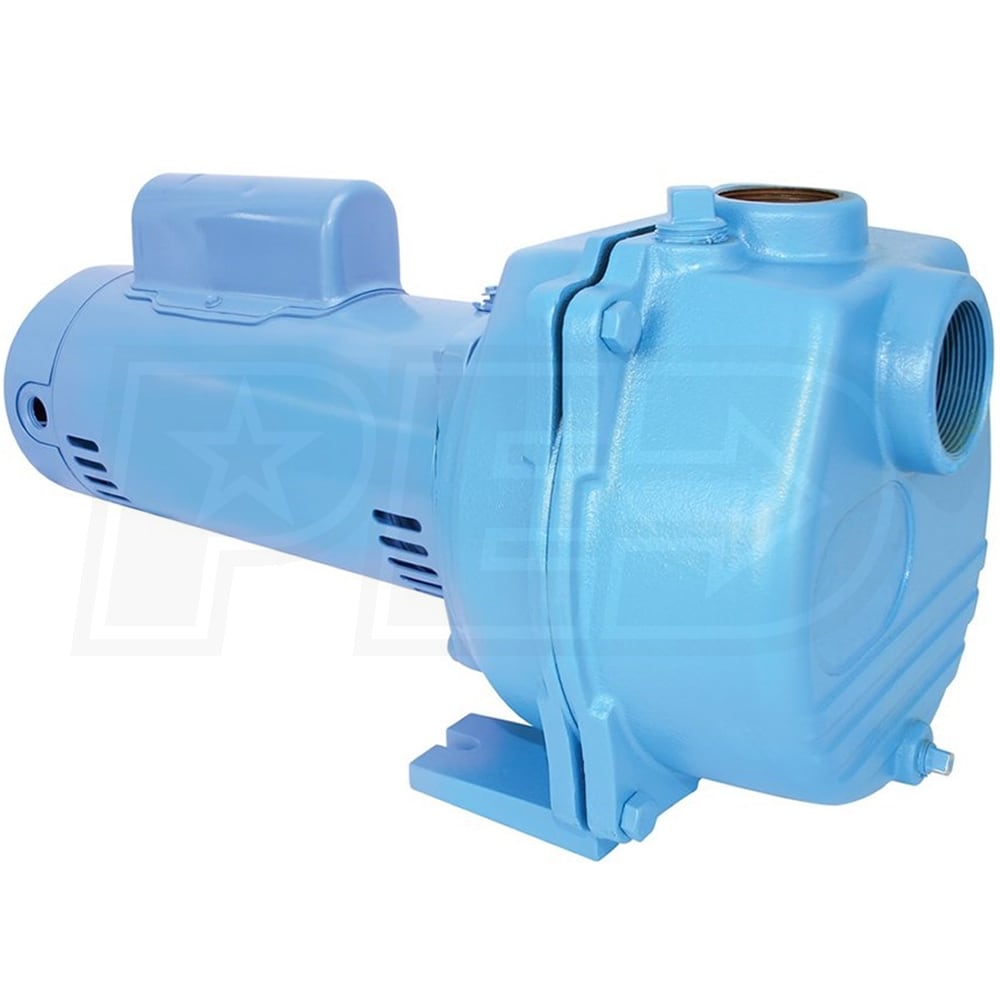

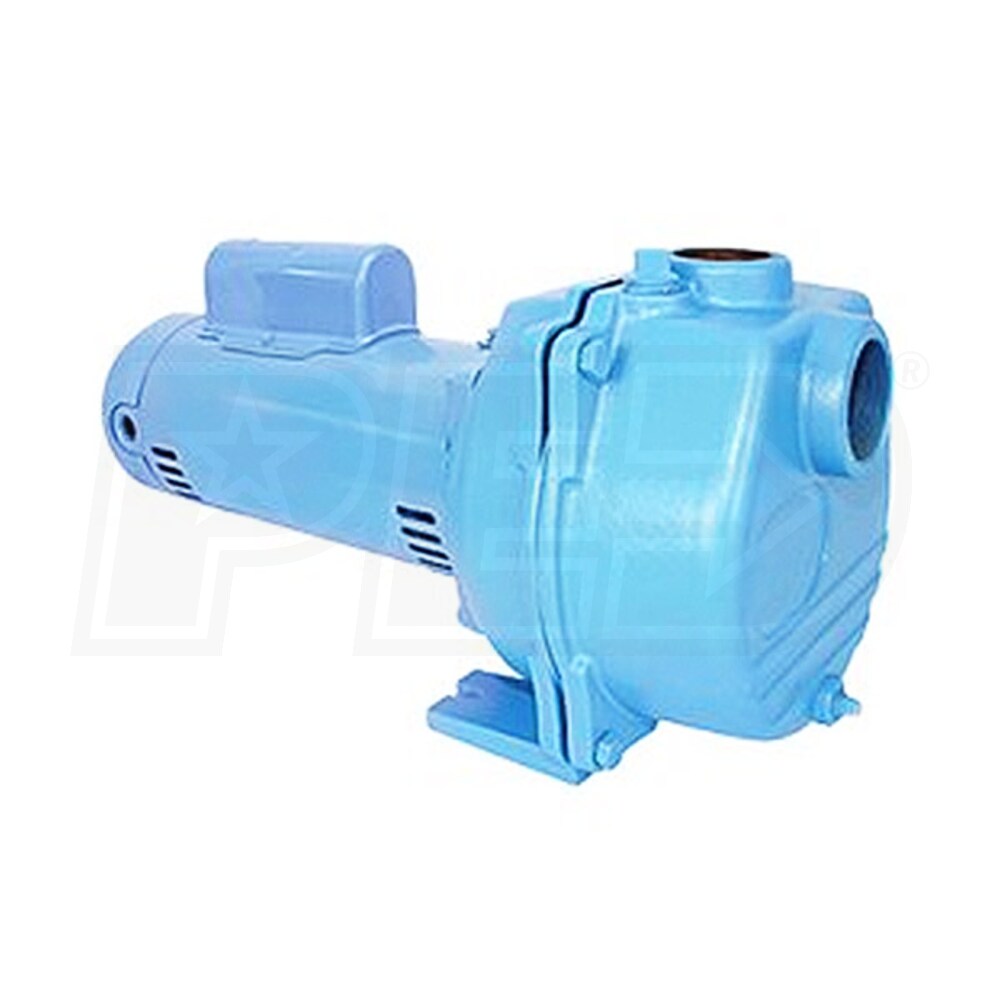

Little Giant LSP-200-C - 97 GPM 2 HP Self-Priming Cast Iron Sprinkler Pump
Model:
558296
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
2 Inch
Style
Sprinkler
GPM
97 Gallons
- 2 HP Lawn Sprinkler Pump
- For use in underground or above ground lawn sprinkling systems
- Also for garden irrigation, boosting household water pressure
- Can be used for recirculation of large volumes of wat
- Heavy-Duty Cast Iron Housing & Seal Plate
- Designed for years of service and reliability
- 230 Volt Heavy-Duty Century Motor (3450 RPM)
- Low amp draw w/ single-phase capacitor start
- Self-Priming Design w/ Priming Plug
- After initial fill, no additional priming required
- 5/8" Rotating Mechanical Seal
- Provides a reliable seal against water leakage
- Brass Impeller, Engineered Thermoplastic Diffuser Nozzle & Venturi
- Designed for the highest pump efficiency and longevity
- Buna-N Elastomers, Carbon-Ceramic Seal & SS Motor Shaft
- Provides corrosion resistance and 110°F max operating temperature
- Built-In Drain Plug
- Makes it easy to drain the pump before storage
- 2-Year Warranty
Specifications
558296
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
11.2
Pump
Gallons Per Minute
97 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
1-1/2 Inch
Self Priming
Yes
Pump Housing Drain
Yes
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Brass
Suction Head
25 Feet
Maximum PSI
48
Total Head Lift
110 Feet
Submersible
No
Engine
Horsepower
2 hp
Overview
Product Category
Water Pump
Weight
76 Pounds
Consumer Warranty
2 Years
Product Length
21 Inches
Product Width
12 Inches
Product Height
12 Inches
UPC
010121119604
Reviews
(7)
Little Giant 558296 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Water Pump Expert
what is the basic difference between a LSP-200-c Little Giant and a Franklin model FTB2CI-SSi ?
Clyde
from Texas
July 02, 2016
