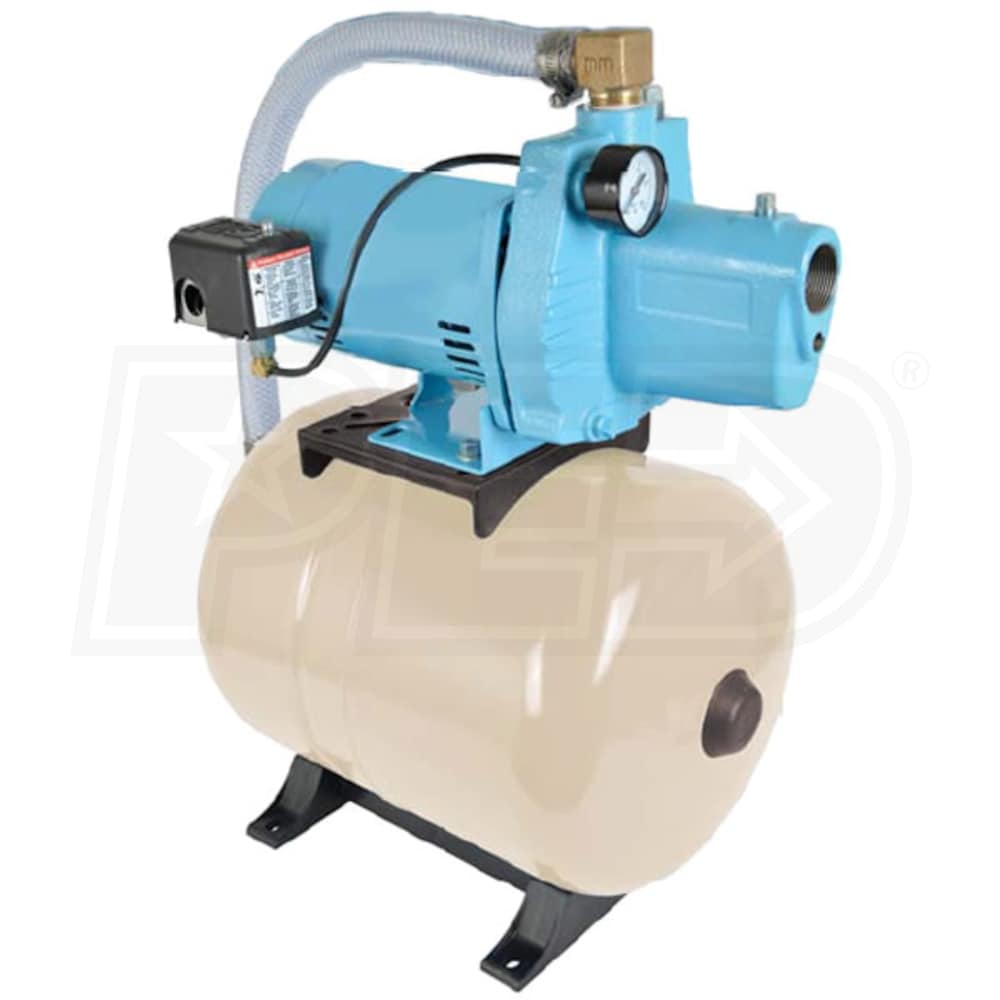

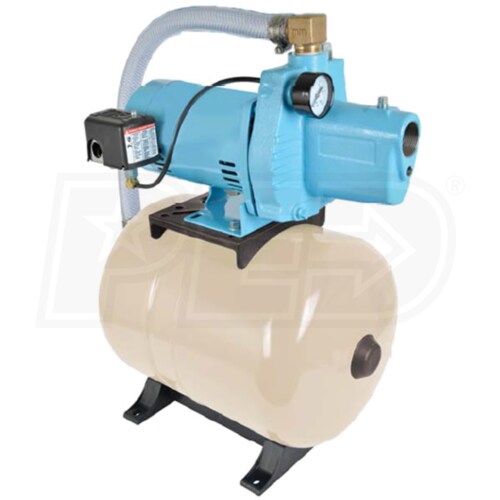

Little Giant JP-050-C/T9H - 12 GPM 1/2 HP Cast Iron Shallow Well Jet Pump System w/ 8.5-Gallon Tank
Model: 558277
3.8 out of 53.8 out of 53.8 out of 53.8 out of 53.8 out of 5
Number of Reviews(5)
Write a Review
$562.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
*We currently CANNOT ship this product to California or any destination outside of the United States
Free Shipping$562.99Buy Now
Free Shipping$562.99Visit Site
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
12.8
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
  • 1/2 Shallow Well Jet Pump System
  • Ideal for use in pumping at depths of 20' or less
  • Pre-Charged 8.5 Gallon Tank
  • For efficiency and high performance
  • Heavy-Duty Cast Iron Casing & Seal Plate
  • Built for years of reliable service
  • 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
  • Voltage selector for simple connection to existing power source
  • Pressure Switch Preset at 30/50 PSI
  • Includes pressure gauge to easily monitor pump operation
  • Stainless Steel Motor Shaft Seal & Dual Ball Bearings
  • Minimizes corrosion extends the life of the pump
  • Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Clean-Out Plug
  • Makes it easy to unclog nozzle
  • 1-Inch Discharge (3/4" Tank / T-Fitting)
  • Compatible with most residential plumbing applications
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513

Inlet Size
1-1/4"
Style
Shallow Well Pumps
GPM
12.8
Gallons
Inlet Size
1-1/4"
Style
Shallow Well
GPM
12.8 Gallons
Features
Features
  • 1/2 Shallow Well Jet Pump System
  • Ideal for use in pumping at depths of 20' or less
  • Pre-Charged 8.5 Gallon Tank
  • For efficiency and high performance
  • Heavy-Duty Cast Iron Casing & Seal Plate
  • Built for years of reliable service
  • 115/230 Volt Heavy-Duty Century Motor (3450 RPM)
  • Voltage selector for simple connection to existing power source
  • Pressure Switch Preset at 30/50 PSI
  • Includes pressure gauge to easily monitor pump operation
  • Stainless Steel Motor Shaft Seal & Dual Ball Bearings
  • Minimizes corrosion extends the life of the pump
  • Engineered Thermoplastic Impeller, Diffuser Nozzle & Venturi
  • Designed for the highest pump efficiency and longevity
  • Clean-Out Plug
  • Makes it easy to unclog nozzle
  • 1-Inch Discharge (3/4" Tank / T-Fitting)
  • Compatible with most residential plumbing applications
  • 2-Year Warranty
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513
Product Specs
+
Specifications
Motor
Voltage
120/240 Volt
Running Amps
4.5
Pump
Gallons Per Minute
12.8 Gallons
Inlet Diameter
1-1/4"
Outlet Diameter
3/4"
Housing Material
Cast Iron
Suction Head
25 Feet
Maximum PSI
64.2
Total Head Lift
148 Feet
Submersible
No
Engine
Horsepower
0.5 hp
Overview
Weight
56 Pounds
Consumer Warranty
2 Years
UPC
010121138513
