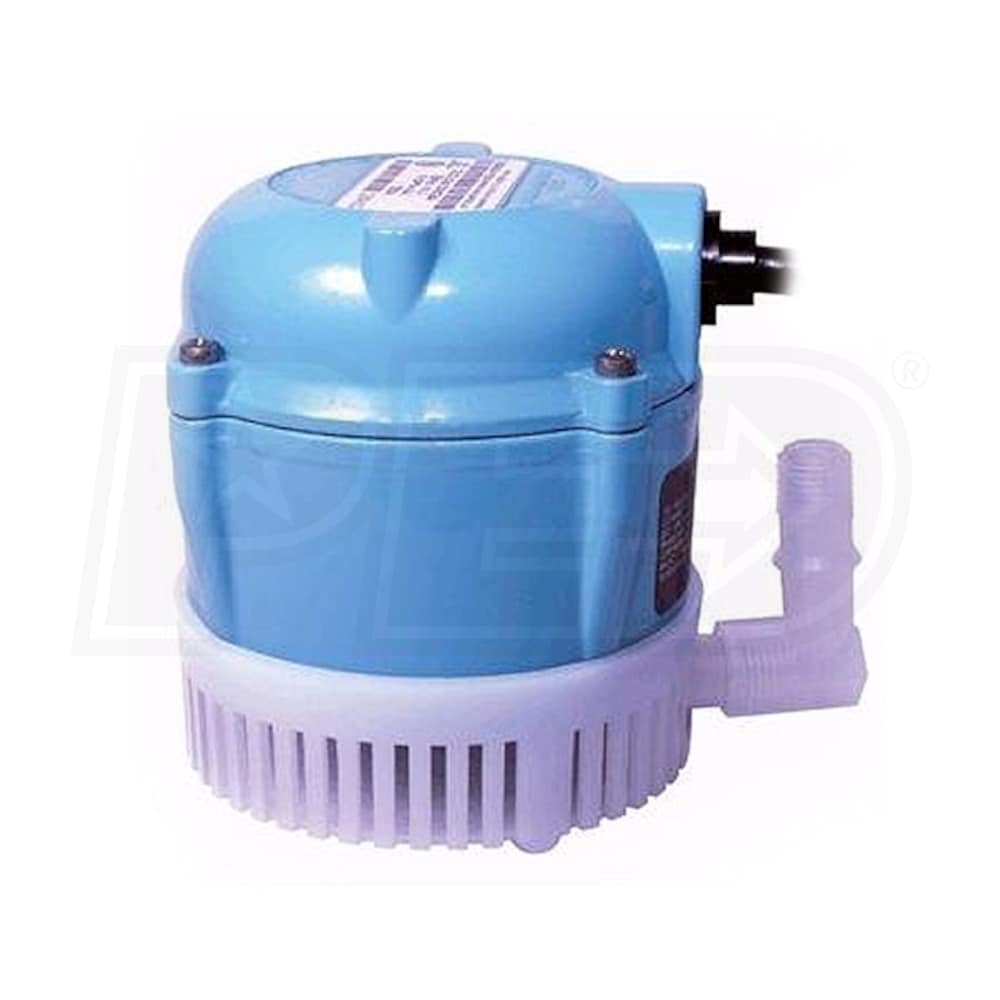

Little Giant 1 Series - 3.4 GPM 1/150 HP Submersible Fountain Pump
Model: 501003
+
Share This Product
-
Product Description
-
8Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Inlet Size
N/A
Style

GPM
3.4
Gallons
Inlet Size
N/A
Style
Fountain
GPM
3.4 Gallons
Features
Features
- 1 Series Oil-Filled, Direct Drive Submersible Pump
- Designed for water transfer/recirculation and fountains
- 1/150 HP Oil-Filled Direct-Drive Motor
- Designed for continuous duty, submersible use only
- Epoxy Coated Cast Aluminum Housing & Cover
- Polypropylene Volute & Elbow
- Nitrile Shaft Seal
- Polyethylene Screen
- UL Listed
- Additional Specs:

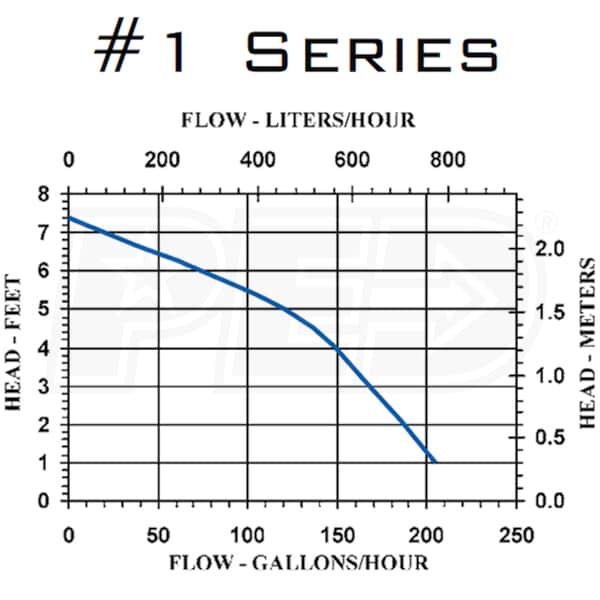

- Capacity: 205 GPH @ 1'
- Shut Off: 7.4'
- Liquid Temprature: Up to 120°F
- Discharge: 1/4" MNPT
- Intake: Smooth
- Impeller: Polypropylene
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
1.1
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
3.4 Gallons
Outlet Diameter
1/4"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
7.4 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Product Width
4.13 Inches
Product Height
4.25 Inches
UPC
010121010031
Inlet Size
N/A
Style

GPM
3.4
Gallons
Inlet Size
N/A
Style
Fountain
GPM
3.4 Gallons
Features
Features
- 1 Series Oil-Filled, Direct Drive Submersible Pump
- Designed for water transfer/recirculation and fountains
- 1/150 HP Oil-Filled Direct-Drive Motor
- Designed for continuous duty, submersible use only
- Epoxy Coated Cast Aluminum Housing & Cover
- Polypropylene Volute & Elbow
- Nitrile Shaft Seal
- Polyethylene Screen
- UL Listed
- Additional Specs:
- Capacity: 205 GPH @ 1'
- Shut Off: 7.4'
- Liquid Temprature: Up to 120°F
- Discharge: 1/4" MNPT
- Intake: Smooth
- Impeller: Polypropylene
- Cord: 6'
Specifications
Motor
Voltage
120 Volt
Running Amps
1.1
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
3.4 Gallons
Outlet Diameter
1/4"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
7.4 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Product Width
4.13 Inches
Product Height
4.25 Inches
UPC
010121010031
Product Specs
+−
Specifications
Motor
Voltage
120 Volt
Running Amps
1.1
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
3.4 Gallons
Outlet Diameter
1/4"
Housing Material
Aluminum
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
7.4 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Overview
Weight
3.5 Pounds
Consumer Warranty
1 Year
Product Width
4.13 Inches
Product Height
4.25 Inches
UPC
010121010031
Product Q&A
(1)
+−

Search Product Q&A's
Answered by Jim, the Water Pump Expert
+−
We have a fountain in our courtyard and have gone through 3 pumps in less than a year. I am looking for a more reliable pump. I wonder about the amount of gpm we can handle. It is a massarelli 54" mirabella fountain. I have looked everywhere for some that is knowlegable about this product. Looks like you are the answer!!! Thanks.
Jackie Canaday
from Tennessee
July 03, 2016
Answer
Thank you for your interest in Water Pumps Direct. Can you please tell me your GPM & PSI requirements along with the discharge hose diameter, total vertical head lift and horizontal pumping distance and the dimensions (width, length & depth) of the water holding tank?
Was this answer helpful?
Yes

0
No

0
