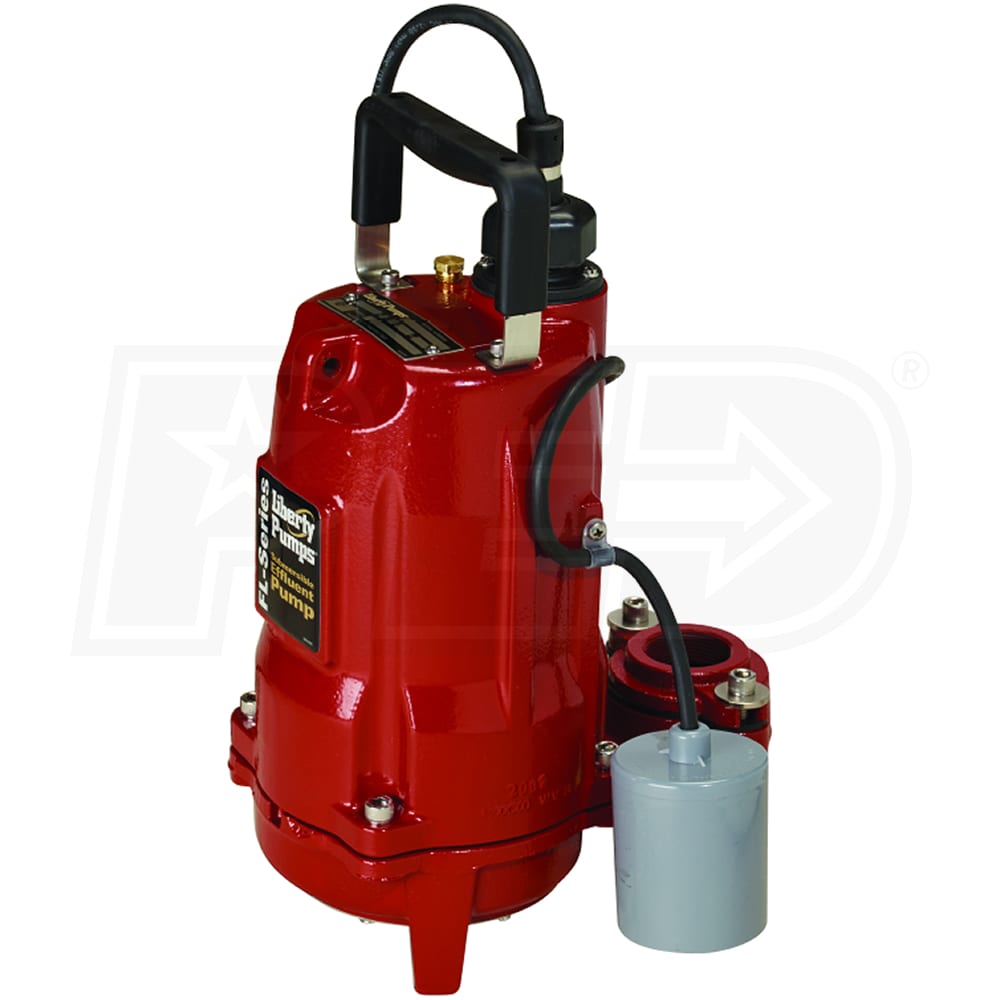

Liberty Pumps FL51A-2 - 1/2 HP Cast Iron Effluent Pump w/ Piggyback Tether Float (25' Cord)
Model:
FL51A-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5520 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Automatic Submersible Cast Iron Effluent Pump
- Designed for septic systems that require less than 55' head
- Quick-Disconnect 25' Standard Power Cord
- Great for applications when an outlet is farther away
- Heavy-Duty Epoxy Powder Coated Cast Iron Construction
- Designed to provide years of reliable performance
- Adjustable, Mercury-Free, Wide Angle Tether Float Switch
- Provides automatic or manual operation via piggyback plug
- Rugged & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- Semi-Open Cast Iron Impeller
- Minimizes clogging and passes spherical solids up to 3/4"
- High Capacity 2" Discharge w/ 1-1/2" Discharge Flange
- Will replace most pumps without any plumbing changes
- 416 Stainless Steel Rotor Shaft w/ Unitized Ceramic Carbon Seal
- With permanently lubricated bearings for extended pump life
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest systems
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
FL51A-2
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
41
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5520
GPH @ 5 feet
5280
GPH @ 10 feet
4950
GPH @ 15 feet
4550
GPH @ 20 feet
4200
Discharge Port Size
1-1/2 Inch and 2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Max Head
55 Feet
Submersible
Yes
Engine
Horsepower
.5 hp
Overview
Product Category
Sump Pump
Weight
64 Pounds
Consumer Warranty
3 Years
Product Length
11.2 Inches
Product Height
16.4 Inches
UPC
671812102963
Accessories
Float Switch
Yes
