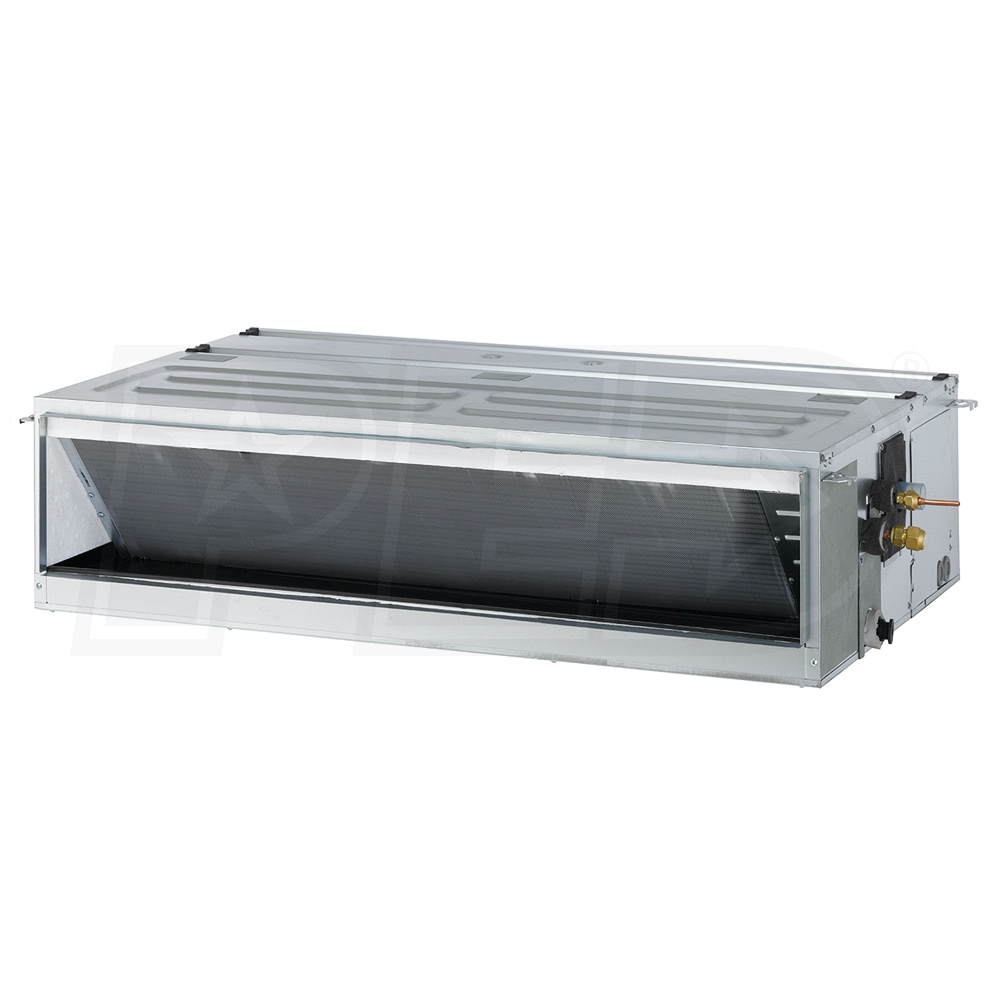

LG - 24k BTU - High Static Concealed Duct Unit - For Single and Multi Zone

Model:

LHN248HV

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
LG - 24k BTU - High Static Concealed Duct Unit - For Single and Multi Zone
LG - 24k BTU - High Static Concealed Duct Unit - For Single and Multi Zone
Model: LHN248HV
Was $1,116.00
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line of indoor units. The LHN248HV is a mini split indoor unit designed for installation in ducting with high static pressures. Concealed duct indoor units mean that you can add mini split zones with no visible indoor units. With the LHN248HV, a small air register is the only clue that a mini split is providing effective heating and cooling to your space.
  • Quiet Design
  • The LHN248HV can operate at volumes as low as 35 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
  • Dehumidify
  • LG's mini split indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LHN248HV indoor unit features an anti-fungal filter to keep your air clean. This filter captures contaminants like dust and bacteria, and it is washable to ensure long term air quality.

Specifications

LHN248HV
specs product image PID-97654
Overview
Product Category
Mini Split System Components
UPC
048231388245
General Information
Type
Concealed Duct
Product Line
High Static Ducted
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
24
Installation Location
Indoor
Performance
Cooling BTU
24000
Cooling Capacity
24000 BTU
Maximum Air Flow
688 CFM
Minimum Air Flow
530 CFM
Minimum Sound Level
35 dB
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
11 35/48 Inches
Product Width
46 13/24 Inches
Product Depth
17 35/48 Inches
Product Weight
73 Pounds
Shipping Weight
95 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
