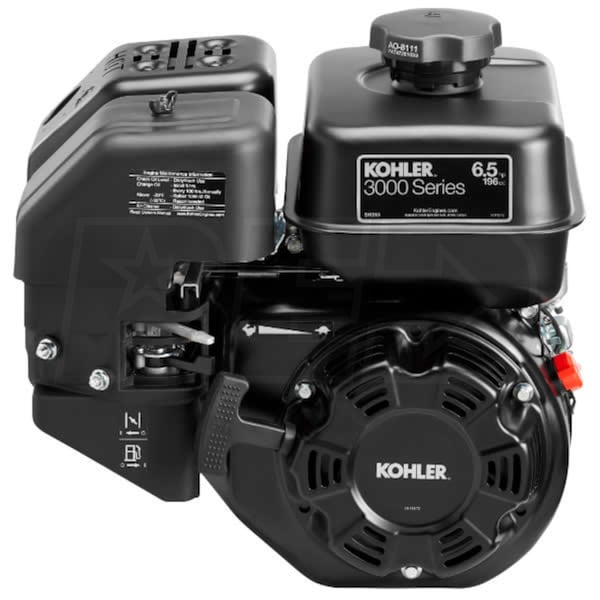

Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24

Model:

PA-SH265-3031

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4
Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
Model: PA-SH265-3031
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# SH265-3031, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
  • For use on utility equipment like pressure washers, log splitters, chippers, vacs, etc...
  • Professional-Grade Features For The Consumer
  • Overhead valve design provides better fuel efficiency and cleaner emissions
  • KOHLER SH265 Single Cylinder Air-Cooled 4-Cycle Horizontal Electric Start Gas Engine
  • Produces 10.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2003
  • 12-Volt With Backup Recoil Makes Engine Starting Effortless
  • Large indexable recoil starter and dual ball bearings
  • Automatic compression release
  • Oversized Muffler For Reduced Noise
  • Sound-deadening alloy crankcase
  • Silenced air intake
  • Easy Acess Throttle, Choke, Shutoff Contol Lever
  • No tools required air cleaner
  • Automatic Low-Oil Engine Shutdown System
  • Dual drains
  • Dipstick on fuel tank side
  • Extended Run Times
  • Large metal fuel tank
  • Basin shaped combustion chamber
  • Large Displacement
  • High-inertia flywheel
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-SH265-3031
specs product image PID-68903
Engine
Engine Series
SH Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
48 Lbs
CC
196 CCs
HP
6.5 HP
Max Torque
10.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Charging System
10 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1 Gallon
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.42 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.42"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Weight
48 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Width
14.4 Inches
