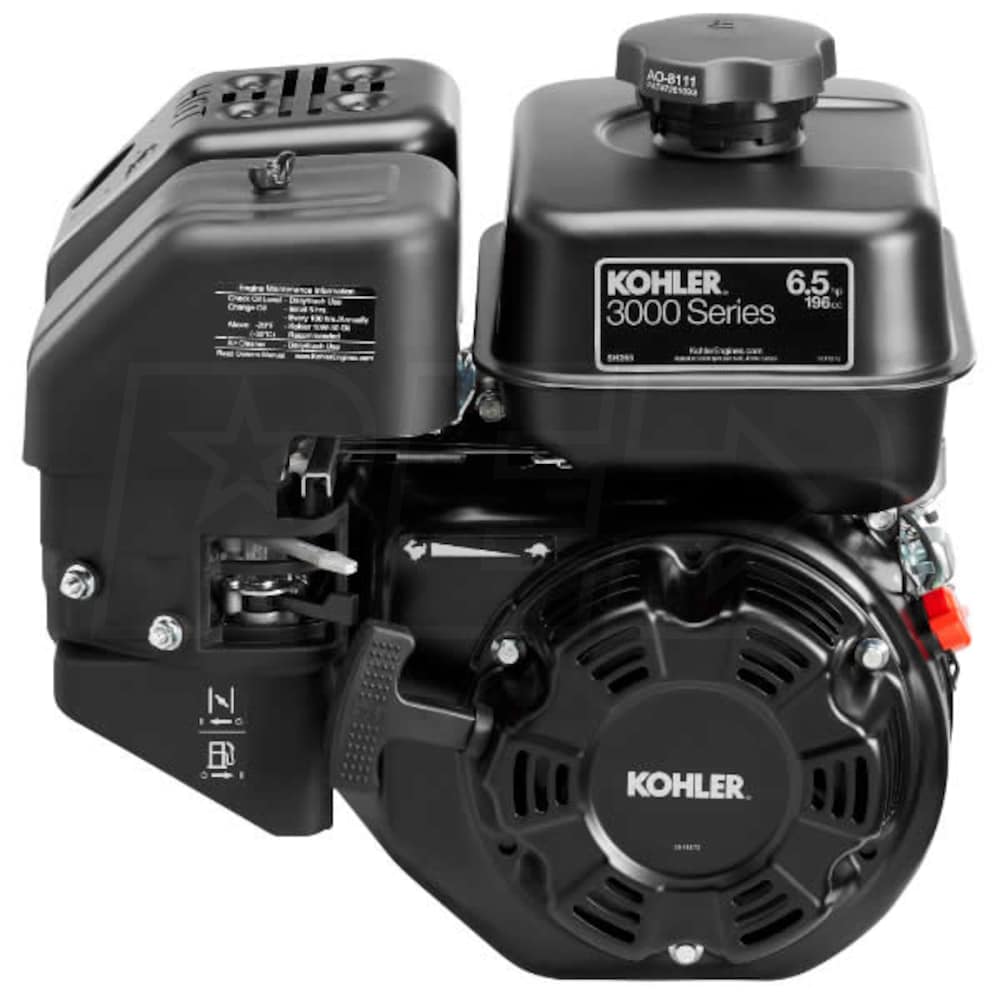

Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24

Model:

PA-SH265-3021

Write a Review
$369.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.

Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4
Kohler SH265 196cc 6.5 Gross HP Electric Start OHV Horizontal Engine, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
Model: PA-SH265-3021
$369.99
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# SH265-3021, 3/4" x 2.42" Crankshaft, Tapped 5/16"-24
  • For use on utility equipment like pressure washers, log splitters, chippers, vacs, etc...
  • Professional-Grade Features For The Consumer
  • Overhead valve design provides better fuel efficiency and cleaner emissions
  • KOHLER SH265 Single Cylinder Air-Cooled 4-Cycle Horizontal Electric Start Gas Engine
  • Produces 10.2 lbs./ft. peak torque- power levels are stated gross torque per SAE J2003
  • 12-Volt With Backup Recoil Makes Engine Starting Effortless
  • Large indexable recoil starter and dual ball bearings
  • Automatic compression release
  • Oversized Muffler For Reduced Noise
  • Sound-deadening alloy crankcase
  • Silenced air intake
  • Easy Acess Throttle, Choke, Shutoff Contol Lever
  • No tools required air cleaner
  • Automatic Low-Oil Engine Shutdown System
  • Dual drains
  • Dipstick on fuel tank side
  • Extended Run Times
  • Large metal fuel tank
  • Basin shaped combustion chamber
  • Large Displacement
  • High-inertia flywheel
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-SH265-3021
specs product image PID-68902
Engine
Engine Series
SH Series
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
CC
196 CCs
HP
6.5 HP
Max Torque
10.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.7 Inches
Stroke
2.1 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Charging System
3 Amps
Starting System
12-Volt w/ Recoil Backup
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Fuel Tank Size
1 Gallon
Fuel Tank
Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
3/4 x 2.42 Inches
Crankshaft Type
Straight
Crankshaft Diameter
3/4"
Crankshaft Length
2.42"
Crankshaft End Tapped Size
5/16"-24
Crankshaft Keyway Width
3/16 Inches
PTO Height
4-11/64 Inches
Overview
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Width
14.4 Inches
