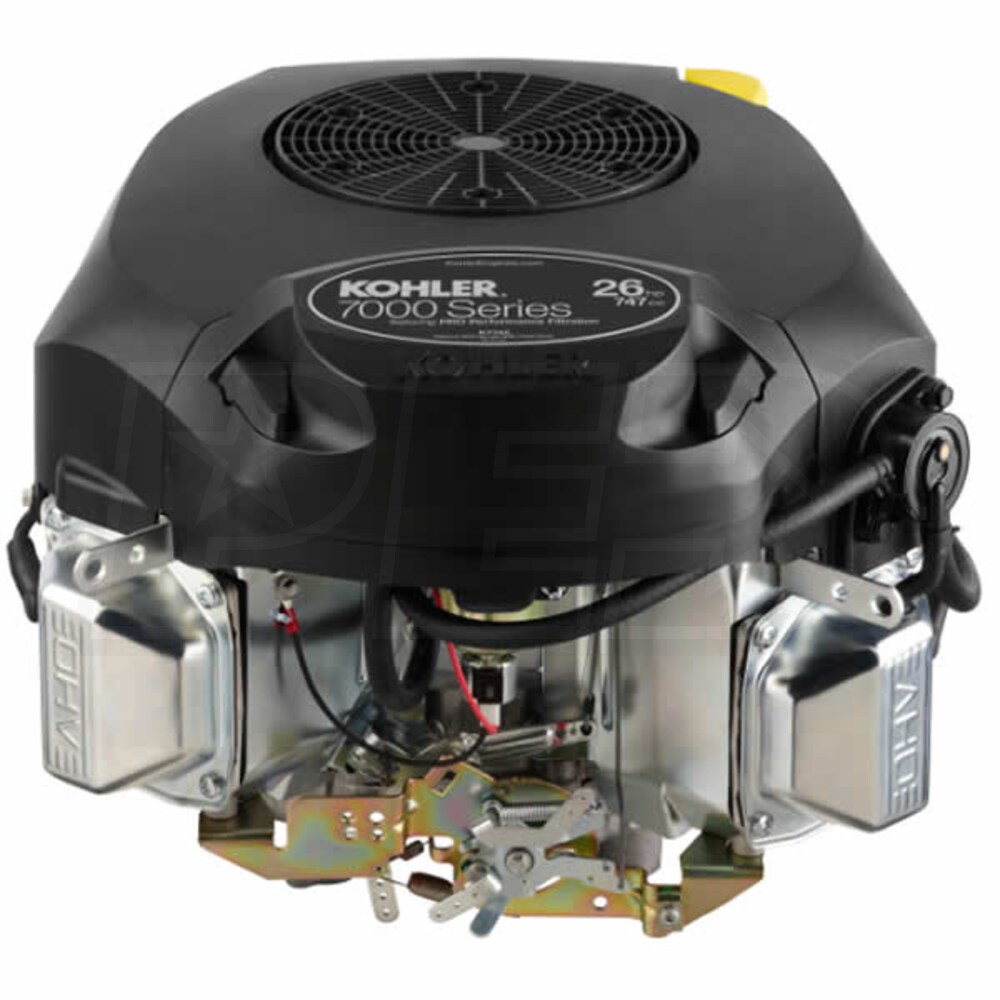

Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1-1/8" x 4.36" Crankshaft, Tapped 7/16"-20

Model:

PA-KT745-3088

Write a Review
$1,549.99
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1-1/8
Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1-1/8" x 4.36" Crankshaft, Tapped 7/16"-20
Model: PA-KT745-3088
$1,549.99
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

  • Model# PA-KT745-3088, 1-1/8" x 4.36" Crankshaft, Tapped 7/16"-20
  • For use on Bad Boy
  • KOHLER 7000 Series™ KT745 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 42.4 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2014
  • Consistent-Cut Technology
  • Consistent power to your deck to achieve the perfect cut
  • Easy-Access Air Filter
  • Quick inspection and maintenance
  • Dual-seal air filter keeps debris out of the engine
  • Service Points On The Same Side Of The Engine
  • Adds ease to maintaining your engine
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
  • Replaces Model # PA-KT745-3031
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-KT745-3088
specs product image PID-94194
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
747 CCs
HP
26 HP
Max Torque
42.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4.36 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4.36"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9
UPC
885612683205
