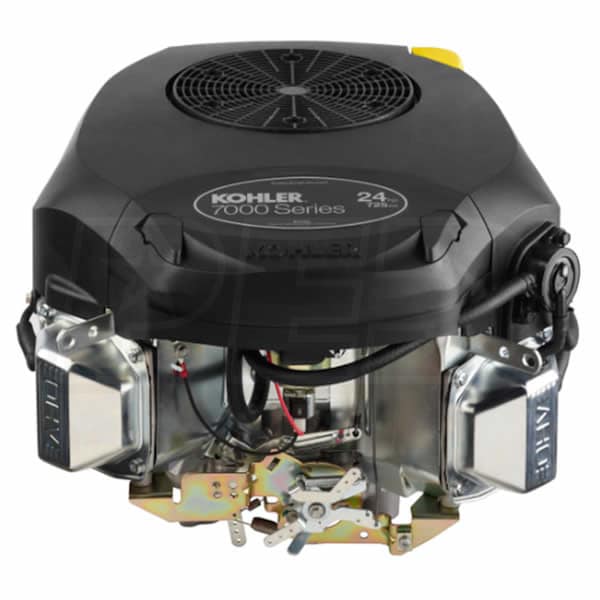

Kohler 7000 Series KT735 725cc 24 Gross HP Electric Start Vertical Engine, 1" x 3.16" Crankshaft

Kohler 7000 Series KT735 725cc 24 Gross HP Electric Start Vertical Engine, 1" x 3.16" Crankshaft
Our Price
Compare Prices
Shipping Info
Model: PA-KT735-3049
(Based on expert analysis, manufacturer ratings and customer reviews)
3.0 out of 53.0 out of 53.0 out of 53.0 out of 53.0 out of 5
Number of Reviews (1)
Write A Review
$1,634.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Factory-Direct
Ships in 2-5 Business Days
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • How-To Articles
  • Manuals
Product Description
+

Features
Features
  • Model# KT735-3012, 1" x 3.16" Crankshaft
  • For use on MTD, Supercedes KT725-3013
  • KOHLER 7000 Series™ KT735 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 40.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2011
  • Consistent-Cut Technology
  • Consistent power to your deck to achieve the perfect cut
  • Easy-Access Air Filter
  • Quick inspection and maintenance
  • Dual-seal air filter keeps debris out of the engine
  • Service Points On The Same Side Of The Engine
  • Adds ease to maintaning your engine
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
Specifications
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
725 CCs
HP
24 HP
Max Torque
40.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.16"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Days
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9

Features
Features
  • Model# KT735-3012, 1" x 3.16" Crankshaft
  • For use on MTD, Supercedes KT725-3013
  • KOHLER 7000 Series™ KT735 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 40.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2011
  • Consistent-Cut Technology
  • Consistent power to your deck to achieve the perfect cut
  • Easy-Access Air Filter
  • Quick inspection and maintenance
  • Dual-seal air filter keeps debris out of the engine
  • Service Points On The Same Side Of The Engine
  • Adds ease to maintaning your engine
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
Specifications
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
725 CCs
HP
24 HP
Max Torque
40.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.16"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Days
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9
Product Specs
+
Specifications
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
725 CCs
HP
24 HP
Max Torque
40.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.16"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Days
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9
